173-009-112R141
| Manufacturer | |

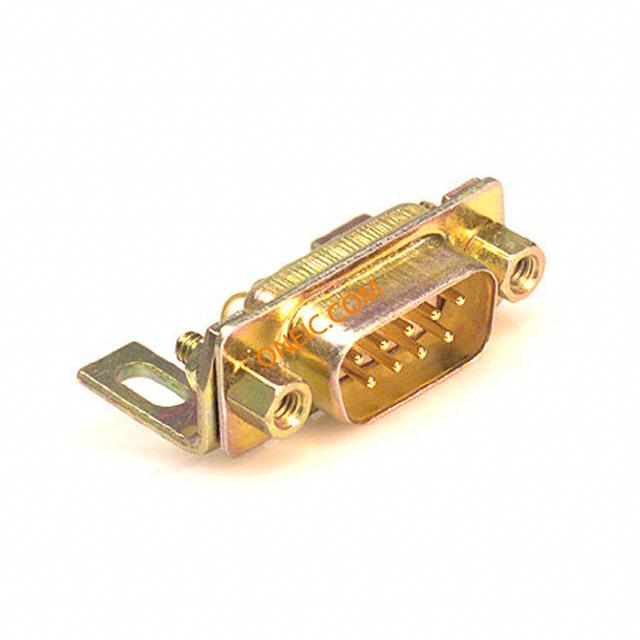

| Description | CONN DB9 MALE .283" RA PCB TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 36 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Features | Grounding Indents, Mounting Hardware | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
