76650-0227
| Manufacturer | |
| Description | COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB VERT R Headers & Wire Housings MINILATCH KIT VERT-R/A COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Vertical and Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:190 MINI-LATCH DELUXE CONNECTOR KIT FRICTION LOCK VERT & RT ANGLE HEADER & RECEPT |
| Category |
Business
| Tradename | Mini-Latch | Standard Pack | 1 |
| Part # Aliases | 0766500227 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage | 250 V | Voltage Rating | 250 V |
| Current Rating (Max) | 1.5 A to 3 A | ||
Mechanical
| Pitch | 2.5 mm | Packaging | Plastic Box |
| Wire Gauge | 28-22 | Mounting Type | Right, Straight |
| Connector Type | Receptacle and Header | Termination Style | SMD, Through Hole |
| 1st Contact Gender | Pin (Male), Socket (Female) | ||
Product Info
| Series | 76650 | Values | 190 pcs - Assorted 3, 4, 6 Circuit Header, Housing, 28 ~ 22 AWG Crimp Terminals |
| Kit Type | Contact, Header, Housing | Manufacturer | 76650 |
| Product Type | Connector Kits | Configuration | Wire-to-Board |
| Number of Circuits | 3, 4, 6 | ||
Documents & Media
Similar Parts
22-04-1031
molex
Conn Wire to Board HDR 3 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 3POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5 KK HDR VERT 3P friction ramp HEADER, THT, VERTICAL, 2.5MM, 3WAY Molex Mini-Latch 系列 2.5mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

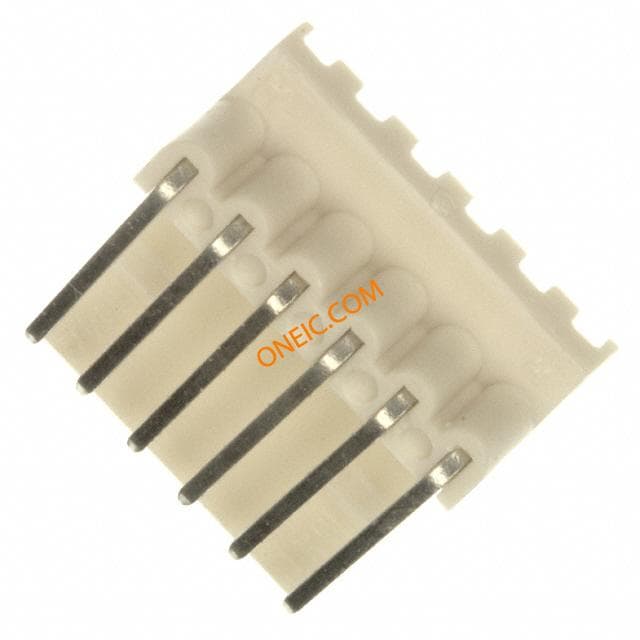

22-05-1062
