22-04-1031
| Manufacturer | |
| Description | Conn Wire to Board HDR 3 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 3POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5 KK HDR VERT 3P friction ramp HEADER, THT, VERTICAL, 2.5MM, 3WAY Molex Mini-Latch 系列 2.5mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022041031 5045-03A |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 20000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - KK 5045 Series | Voltage Rating | 250 V ac/dc |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Dielectric Strength | :1500V/m | Current Rating (Max) | 3A |
Mechanical
| Color | Natural | Pitch | 2.5 mm |
| Weight | 0.002 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Release Force | :0.5N |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Copper |
| Fastening Type | Friction Lock | Number of Rows | 1 |
| Package / Case | :White Nylon UL94V-0 | Insertion Force | :2N |
| Contact Material | Brass | Housing Material | Nylon |
| Termination Style | Through Hole | Number of Contacts | 3 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 3 |
| Mounting Hole Diameter | :1.19mm | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 5045 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
22-01-1034
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount Bag

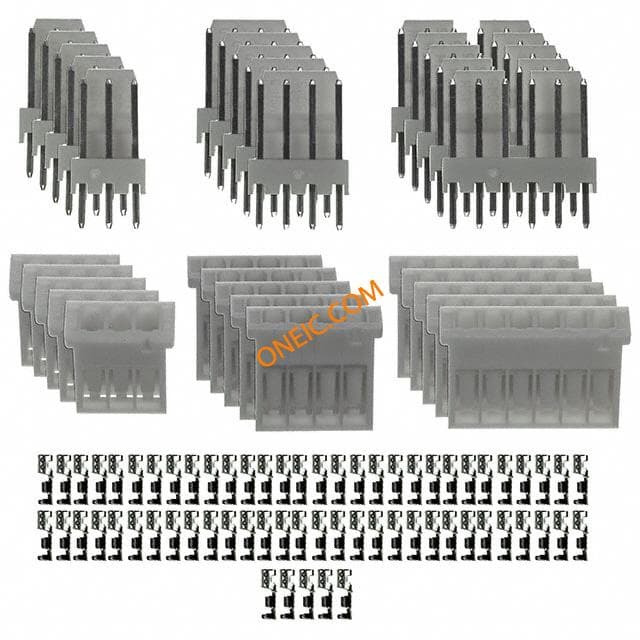

76650-0225
molex
COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB Headers & Wire Housings MINILATCH KIT VERT HDR Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK VERT HEADER & RECEPT
76650-0227
molex
COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB VERT R Headers & Wire Housings MINILATCH KIT VERT-R/A COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Vertical and Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:190 MINI-LATCH DELUXE CONNECTOR KIT FRICTION LOCK VERT & RT ANGLE HEADER & RECEPT

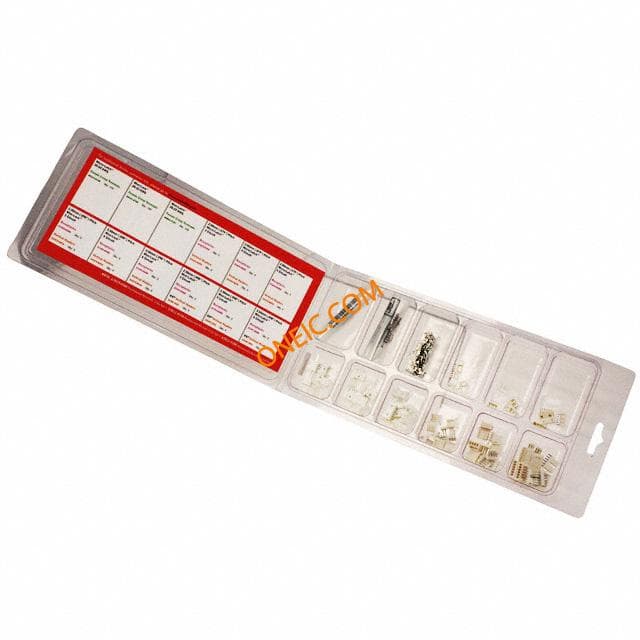

76650-0230
