22-04-1061
| Manufacturer | |
| Description | CONN HEADER 6POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings POLARIZING LK HDR 6P straight Conn Wire to Board HDR 6 POS 2.5mm Solder ST Thru-Hole Bag HEADER, SQUARE PIN, 2.5MM, 6WAY Molex Mini-Latch 系列 2.5mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022041061 5045-06A |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 8000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - KK 5045 Series | Voltage Rating | 250 V ac/dc |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Dielectric Strength | :1500V/m | Current Rating (Max) | 3A |
Mechanical
| Color | Natural | Pitch | 0.098" (2.50mm) |
| Weight | 0.066 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.5mm | Mounting Type | Through Hole |
| Release Force | :0.5N | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Fastening Type | Friction Lock |
| Number of Rows | 1 | Package / Case | :White Nylon UL94V-0 |
| Insertion Force | :2N | Contact Material | Brass |
| Housing Material | Nylon | Termination Style | Through Hole |
| Number of Contacts | 6 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 6 | Mounting Hole Diameter | :1.19mm |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
| 1st Connector Mounting Type | :Straight | ||
Product Info
| Type | Wire to Board | Gender | :Header |
| Series | 5045 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts

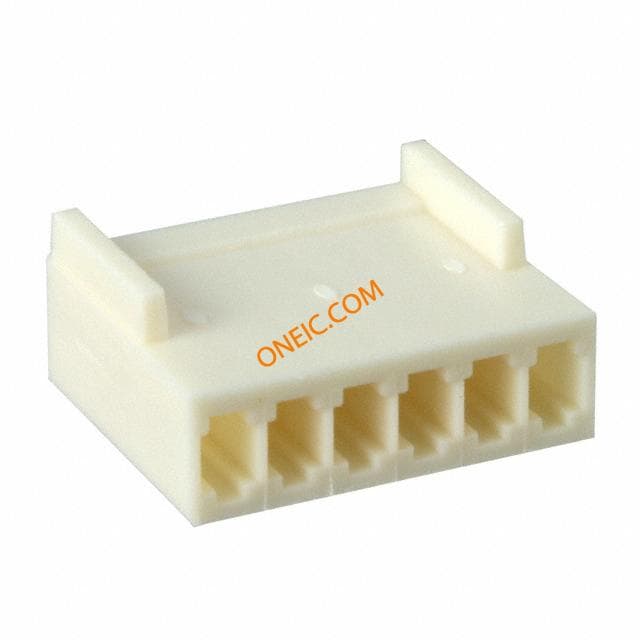

0022011062
