22-05-1062
| Manufacturer | |
| Description | Conn Wire to Board HDR 6 POS 2.5mm Solder RA Thru-Hole Bag CONN HEADER 6POS 2.5MM R/A TIN Molex 5046 Series 2.5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 6P R/A PCB 1ROW HDR W/FRICTION LOCK HEADER, R/A, SQ PIN, 2.5MM, 6WAY Molex Mini-Latch 系列 2.5mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022051062 5046-06A |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 8000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - 5046 Series | Voltage Rating | 250 V ac/dc |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Dielectric Strength | :1500V/m | Current Rating (Max) | 3A |
Mechanical
| Color | Natural | Pitch | 2.5 mm |
| Weight | 0.002 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.5mm | Mounting Type | Through Hole, Right Angle |
| Release Force | :0.5N | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Number of Rows | 1 | Package / Case | :White Nylon UL94V-0 |
| Insertion Force | :2N | Contact Material | Brass |
| Termination Style | Through Hole | Number of Contacts | 6 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 6 |
| Mounting Hole Diameter | :1.19mm | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 5046 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts

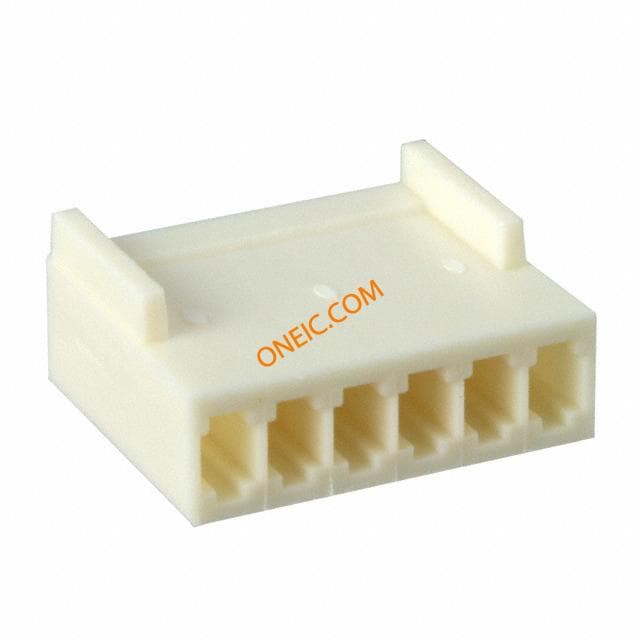

0022011062
