76650-0226
| Manufacturer | |
| Description | COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM RA WTB Headers & Wire Housings MINILATCH KIT R/A HDR COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK RT ANGLE HEADER & RECEPT |
| Category |
Business
| Tradename | Mini-Latch | Standard Pack | 1 |
| Part # Aliases | 0766500226 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage | 250 V | Voltage Rating | 250 V |
| Current Rating (Max) | 1.5 A to 3 A | ||
Mechanical
| Pitch | 2.5 mm | Packaging | Plastic Box |
| Wire Gauge | 28-22 | Mounting Type | Right |
| Connector Type | Receptacle and Header | Termination Style | SMD, Through Hole |
Product Info
| Series | 76650 | Values | 95 pcs - Assorted 3, 4, 6 Circuit Header, Housing, 28 ~ 22 AWG Crimp Terminals |
| Kit Type | Contact, Header, Housing | Manufacturer | 76650 |
| Product Type | Connector Kits | Configuration | Wire-to-Board |
| Number of Circuits | 3, 4, 6 | ||
Documents & Media
Similar Parts

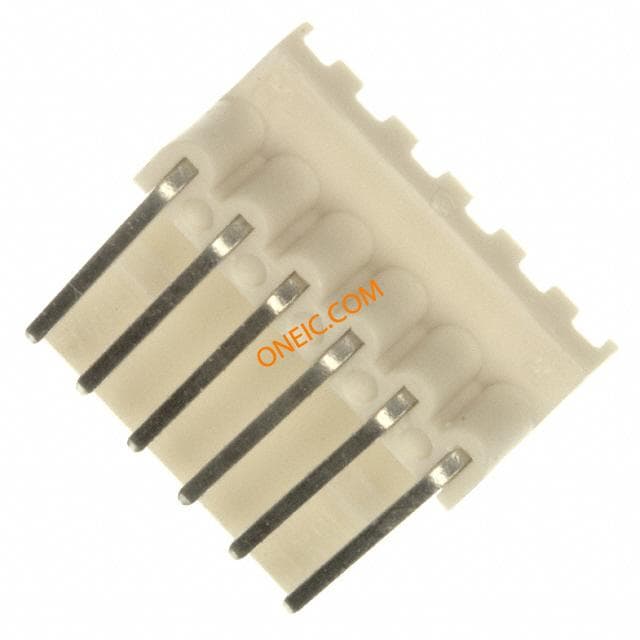

22-05-1062
