MCP1630-E/MS
| Manufacturer | |
| Description | Current Mode PWM Controller 8-Pin MSOP Tube DC-DC 5.5V SO-8 SMD IC REG CTRLR PWN VM 8MSOP MCP1630-E/MS, PWM Controller 1000kHz 8-Pin MSOP Switching Controllers Hi Spd PWM PIC atach IC, PWM, SMD, 1630, MSOP8 Driver; PWM controller; 1MHz; MSOP8 DC-DC 5.5V MSOP-8 SMD |
| Category |
Business
| MOQ | 400 | Unit Pack | 100 |
| Other Names | MCP1630EMS | Product Category | Switching Controllers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Automotive | NO |
| Part Status | :1630 | Leadfree Defin | RoHS-conform |
Electrical
| PWM Type | Current Mode | Fall Time | 6.2 ns |
| Frequency | :1MHz | Duty Cycle | 0(Min) % |
| Output Type | :Voltage | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | Yes |
| Voltage Rating | :5.5V | Boost Converter | Yes |
| Frequency - Max | 1MHz | Rise Time (Typ) | 5.9 ns |
| Current - Supply | 2.8 mA | Voltage - Supply | 3 V ~ 5.5 V |
| Doubler Converter | No | Flyback Converter | Yes |
| Number of Outputs | 1 | Power Supply Type | :PWM Controller |
| Divider/Multiplier | No | Inverting Converter | No |
| Frequency - Switching | 1000 kHz | Voltage - Input (Min) | 5.5V |
| Voltage - Supply (Min) | 6 V | Current Drain (Id) - Max | :2.8mA |
| Current - Input Bias (Max) | :3.7mA | Number of Outputs and Type | 1 |
| Reverse Recovery Time (trr) | 6.2ns | Impulse Discharge Current (8/20us) | 5.9ns |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.0001 |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 100 |
| Size / Dimension | 3 x 3 x 0.85mm | Number of Positions | 8 |
Product Info
| Spg | 100 | Type | DC/DC Up |
| Base Unit | :1630 | Matchcode | MCP1630-E/MS |
| Controller Type | :PWM | Number of Units | 1 |
| Standard Leadtime | 19 weeks | Utilized IC / Part | PWM controller |
Environmental
| Operating Temperature | -40 to 125 °C | Maximum Temperature Limit | 125°C |
Documents & Media
Similar Parts

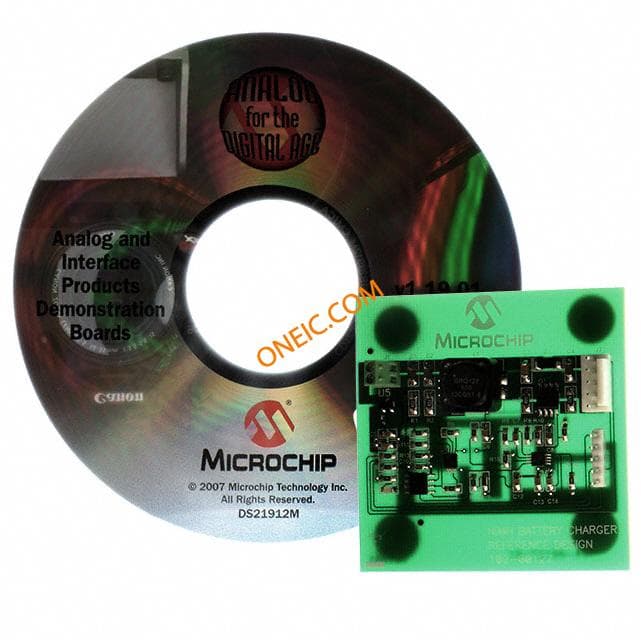

MCP1630RD-NMC1
