点击放大查看

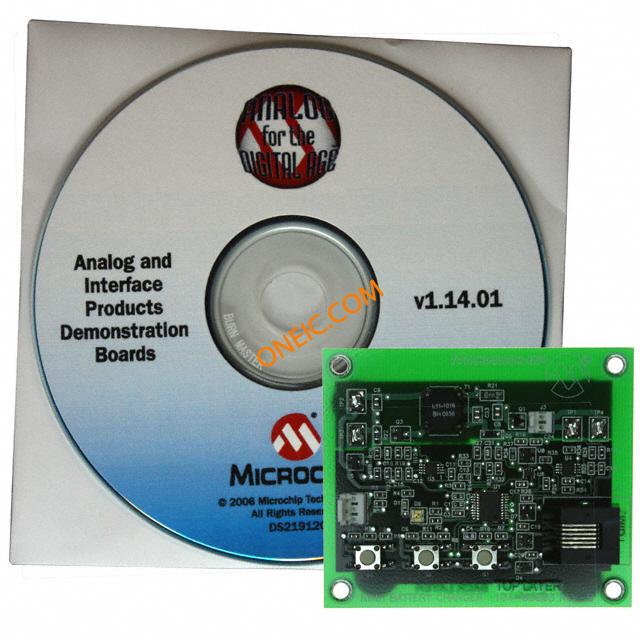

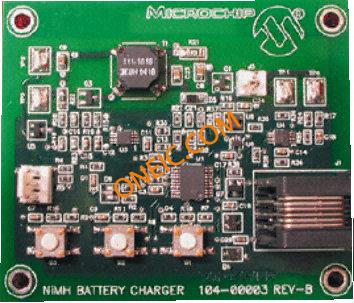

MCP1630DM-NMC1
| Manufacturer | |
| Description | MCP1630 Nimh Battery Charger Demo Board Power Management IC Development Tools MCP1630 NiMH Batt Charger Demo Brd MCP1630 NiMH Battery Charger Demo Bo BOARD DEMO FOR MCP1630 Development Kit, Power Management With NiMH Battery Charger Demonstration Board for MCP1630 MCP1630, BATTERY CHARGER, DEMO BOARD MCP1630NiMHBatteryChargerDemoBoard |
| Category |
Business
| MOQ | 3 | Product | Power Management Modules |
| Unit Pack | 1 | Other Names | MCP1630DMNMC1 |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Core Type | :Power Management - Battery | Number of Elements | :PIC16F |
Mechanical
| Weight | 0.7 | ||
Product Info
| Type | Development Kit | Contents | Board, Software |
| Embedded | Yes, MCU, 8-Bit | Features | :Overvoltage, Overcurrent, Over-Charge and Over-Discharge Protection, Simple Fuel Gauge Capability |
| Kit Type | :Power Management - Battery | Technology | Power Management |
| Kit Contents | NiMH Battery Charger Demonstration Board for MCP1630 | Main Purpose | Power Management, Battery Charger |
| Card Standard | Development Kit | Tool Type Feature | MCP1630 |
| Primary Attributes | 4 Cells- NiMH, 500mA, 8 V ~ 15 V Input | Utilized IC / Part | MCP1630 |
| Chipset Manufacturer | :Microchip | Secondary Attributes | Simple Fuel Gauge, 3 Charge Modes, Over: Current/Voltage/Charge Protection |
| Application Specifics | :Battery Charger | MCU Supported Families | :MCP1630, PIC16LFxxx |
| For Use With/Related Products | :MCP1630 | ||
