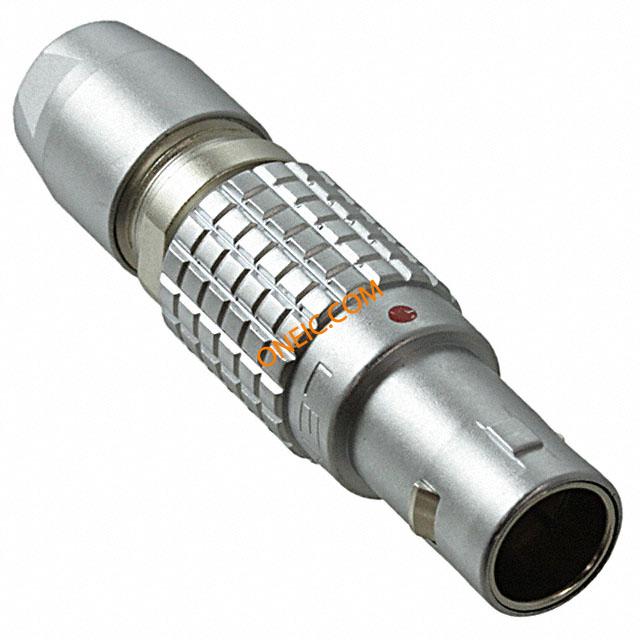

FGG.0B.305.CLAD52Z
| Manufacturer | |
| Description | Circular Push Pull Connectors PLUG CDG 5 CTS CCOL CONN INLINE PLUG 5PIN SLD CUP 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 5 WAY, CABLE Plug; Connector: circular; 0B; male; PIN:5; 6.5A; 700V; for cable Lemo 0B 系列 5路 电缆安装 直向 连接器 插头 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 250 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 700V | Voltage Rating | :260V |
| Voltage - Working | :260V | Contact Resistance | :5.6mohm |
| Dielectric Strength | :19V/m | Current Rating (Max) | 6.5A |
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Orientation | G | Shell Style | Plug |
| Termination | Solder Cup | Weight (g): | 44.00000 |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Chrome Plated Brass |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Plating - Body | :Nickel | Insertion Angle | :305 |
| Material - Body | :Brass | Contact Material | Brass |
| Package Quantity | 5 | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Male |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Number of Positions | 5 | Shell Size - Insert | 305 |
| Shell Material, Finish | Brass, Chrome Plated | Contact Material - Mating | :Bronze |
| 1st Connector Mounting Type | :Cable | Contact Finish - Post (Mating) | :Gold |
Product Info
| Spg | 5 | Gender | Male |
| Series | B | Features | Shielded |
| Product Type | Connectors | Adapter Series | 0B |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
