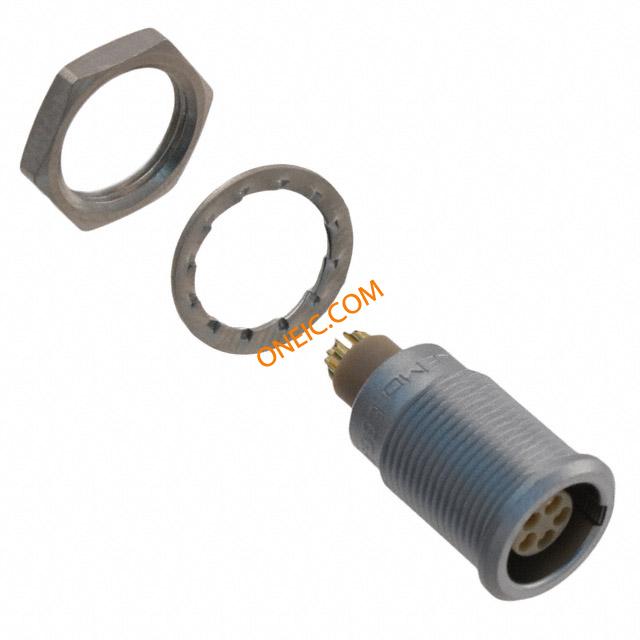

EGG.0B.305.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 0 5-pin FEMALE SLDR CONN PNL MNT RCPT 5SKT SLD CUP 5 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RECEPTACLE, 5 WAY, PANEL Socket; Connector: circular; 0B; female; PIN:5; 6.5A; 700V Device socket, B-series 5-pin Poles=5, EGG.0B.305.CLL, Lemo Lemo 0B 系列 5路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Lead Time | 25 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 700V | Dielectric Strength | :19V/m |
| Current Rating (Max) | 6.5A | ||
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Wire Gauge | :22AWG | Orientation | G |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 52.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome Plated | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | for panel mounting | Plating - Body | :Chrome |
| Insertion Angle | :305 | Material - Body | :Brass |
| Contact Material | :- | Package Quantity | 4 |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 5 |
| Contact Termination | :Solder | Number of Positions | 5 |
| Shell Size - Insert | 305 | Shell Material, Finish | Brass, Chrome Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 4 | Gender | Female |
| Series | B | Features | Shielded |
| Product Type | Connectors | Adapter Series | 0B |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Similar Parts
FGG.0B.731.DN
LEMO
Circular Push Pull Connectors 2.1mm to 3.0mm dia. COLLET FOR 0B OBCOLLET2.1MMTO3.0MM
FGG.0B.305.CLAZ
LEMO
Circular Push Pull Connectors PLUG SIZE 0 5-PIN ML SLDR W/ NO COLLET CONN INLINE PLUG 5PIN SLD CUP
FGG.0B.305.CLAD42Z
LEMO
Circular Push Pull Connectors 5P STAIGHT PLUG 3.1MM-4MM CBL FIX CONN INLINE PLUG 5PIN SLD CUP
BRE.0S.200.NAS
LEMO
Circular Push Pull Connectors sz 0 BRASS BLANKING CAP CONN CAP FOR 0S-0B RCPT IP50

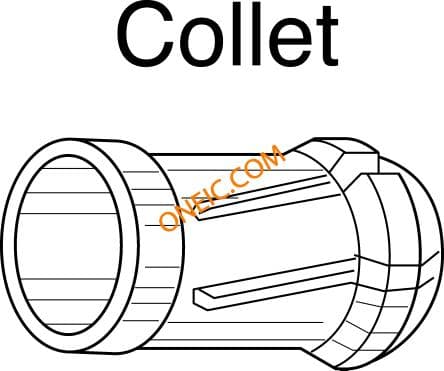

FGG.0B.742.DN
LEMO
Circular Push Pull Connectors 3.2mm to 4.2mm Collet for 0B COLLET FGG.0B. - 4.2MM DIA 0B free plug & socket collet,3.1 to 4mm COLLET CABLE, 4MM Strain relief 3.1...4 mm 3.1...4 mm, FGG.0B.742.DN, Lemo Lemo 套爪
FGG.0B.305.CLAD52Z
LEMO
Circular Push Pull Connectors PLUG CDG 5 CTS CCOL CONN INLINE PLUG 5PIN SLD CUP 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 5 WAY, CABLE Plug; Connector: circular; 0B; male; PIN:5; 6.5A; 700V; for cable Lemo 0B 系列 5路 电缆安装 直向 连接器 插头

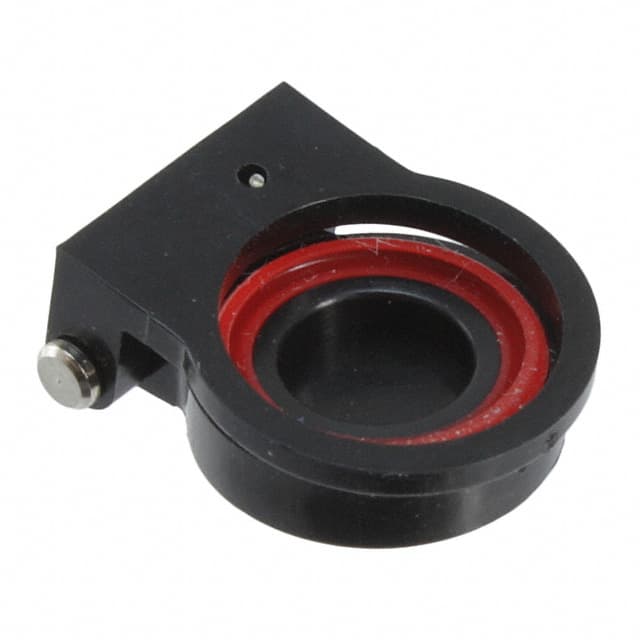

BRR.0S.200.PZSN
