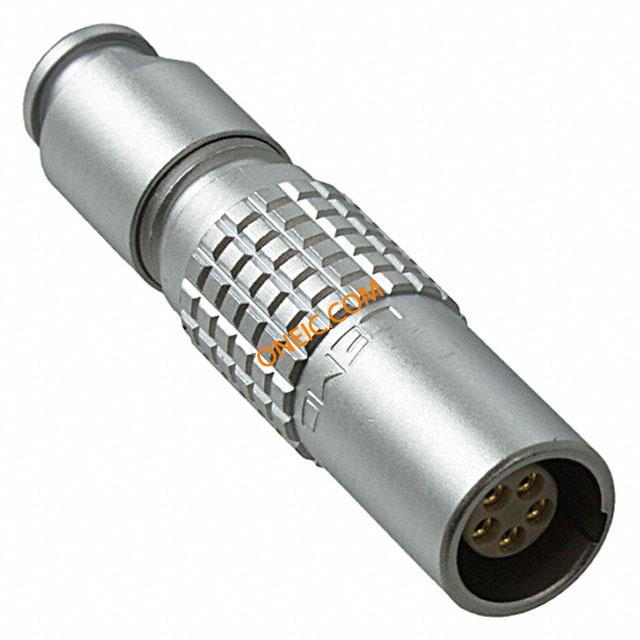

PHG.0B.305.CLLD52Z

Manufacturer	LEMO SA
Description	Circular Push Pull Connectors RECPT CDG 5 CTS C-COL CONN INLINE RCPT 5SKT SLD CUP 5 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, IN-LINE, 0B, 5WAY Lemo 0B 系列 5路电缆安装直向连接器插座 , 母触点
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular Push Pull Connectors

Standard Package

250

Compliance

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85369010

Electrical

Voltage Rating	:260V	Voltage - Working	:260V
Contact Resistance	:5.6mohm	Dielectric Strength	:19V/m
Current Rating (Max)	6.5A

Mechanical

Weight	0.011	Packaging	Bulk
Wire Gauge	22	Orientation	G
Shell Style	Receptacle	Termination	Solder Cup
Weight (g):	35.20000	Mounting Type	Free Hanging (In-Line)
Shell Plating	Chrome	Connector Type	Receptacle, Female Sockets
Contact Finish	Gold	Fastening Type	Push-Pull
Mounting Style	Cable	Plating - Body	:Nickel
Shell Material	Metal	Insertion Angle	:-
Material - Body	:Brass	Contact Material	:Bronze
Termination Style	Solder	1st Contact Gender	Female
Number of Contacts	5	Contact Termination	:Solder
Number of Positions	5	Shell Size - Insert	305
Shell Material, Finish	Brass, Chrome Plated	Contact Material - Mating	:Bronze
1st Connector Mounting Type	:Cable	Contact Finish - Post (Mating)	:Gold

Product Info

Gender	Female	Series	B
Features	Shielded	Product Type	Connectors

Environmental

Mating Cycles	:5000	NEMA Frame Size	:IP50
Ingress Protection	IP50 - Dust Protected	Operating Temperature	-55°C ~ 250°C
