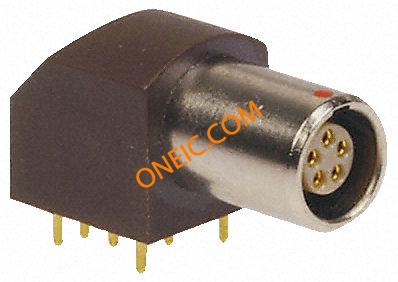

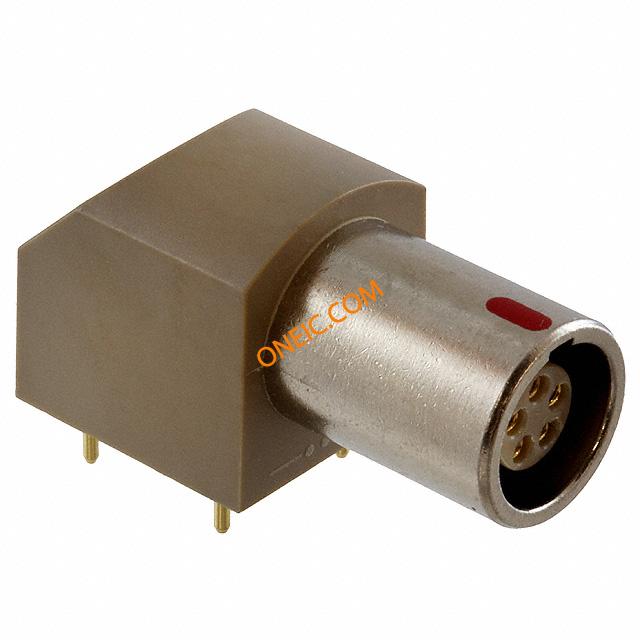

EPG.0B.305.HLN
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P FEMALE PCB MNT R/A SOLDER CONN R/A PCB RCPT 5SKT 5 Pole Female Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts SOCKET, R/A, 0B, 5WAY Lemo 0B 系列 5路 通孔 直角 连接器 插座 , 母触点 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Working | :260V | Current Rating (Max) | 4.5A |
Mechanical
| Weight | 0.01 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 8.80000 |
| Mounting Type | Through Hole, Right Angle | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Shell Material | Plastic |
| Insertion Angle | :- | Contact Material | Beryllium Copper |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Number of Positions | 5 | Shell Size - Insert | 305 |
| Shell Material, Finish | Polyphenylene Sulfide (PPS) | 1st Connector Mounting Type | :PCB |
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP50 | Ingress Protection | IP50 - Dust Protected |
| Operating Temperature | -55°C ~ 250°C | ||
