SVH-41T-P1.1

Manufacturer	JST Mfg. Co., Ltd.
Description	CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列母压接接线端子, 压接, 镀锡触点
Category	Connector SolutionsContactsContacts

对参数有疑问？问 AI 助手

Business

Other Names

455-1319-1

Standard Package

3,500

Compliance

RoHS

Lead free / RoHS Compliant

Electrical

Contact Resistance

10mΩ

Mechanical

Weight	0.44 g	Packaging	Tape & Reel (TR)
Wire Gauge	16-20 AWG	Termination	Crimp
Pitch - Post	3.96mm	Mounting Type	crimped
Pin or Socket	Socket	Cable Diameter	1.25mm²
Connector Type	female	Contact Finish	Tin
Contact Material	Phosphor Bronze	Package Quantity	3500
Termination Rows	压接	Connector - Cable	contact
Contact Termination	Crimp	Wire Gauge or Range - AWG	16AWG
Wire Gauge or Range - mm2	0.5...1.25mm2

Product Info

Spg	3500	Gender	Female
Series	SVH	Adapter Series	VH
Number of Units	3500	For Use With/Related Products	VH Series

Environmental

Operating Temperature

+85°C

Documents & Media

PDF Document

VH Connector (RoHS)

Similar Parts

VHR-2N

JST Sales America Inc

CONN HOUSING VH 2POS 3.96MM WHT Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:2; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 2 Single row / Free hanging/cable mount VH, VHR-2N, JST JST VHR 系列 3.96mm 节距 2 路直母电缆安装 PCB 连接器外壳

$0.1367

Details

VHR-3N

JST Sales America Inc

CONN HOUSING VH 3POS 3.96MM WHT Conn Housing PL 3 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:3; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 3 Single row / Free hanging/cable mount VH, VHR-3N, JST JST VHR 系列 3.96mm 节距 3 路直母电缆安装 PCB 连接器外壳

$0.1251

Details

VHR-4N

JST Sales America Inc

CONN HOUSING VH 4POS 3.96MM WHT Conn Housing PL 4 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:4; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 4 Single row / Free hanging/cable mount VH, VHR-4N, JST

$0.2530

Details

VHR-5N

JST Sales America Inc

CONN HOUSING VH 5POS 3.96MM WHT Plug; wire-board; female; PIN:5; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 5 Single row / Free hanging/cable mount VH, VHR-5N, JST JST VHR 系列 3.96mm 节距 5 路直母电缆安装 PCB 连接器外壳

$0.1979

Details

VHR-6N

JST Sales America Inc

CONN HOUSING VH 6POS 3.96MM WHT Conn Housing PL 6 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 6 Single row / Free hanging/cable mount VH, VHR-6N, JST

$0.1863

Details

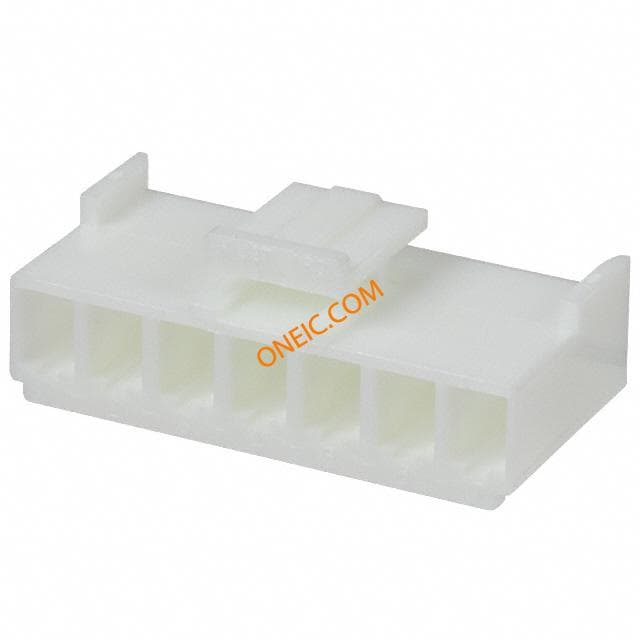

VHR-7N

JST Sales America Inc

CONN HOUSING VH 7POS 3.96MM WHT VH 3.96MM N TYPE HOUSING 7 WAY Conn Housing PL 7 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:7; w/o terminals; 3.96mm; for cable JST VH 系列 1 行 3.96mm 节距 7 路侧入、顶入母印刷电路板安装 PCB 壳体

$0.3040

Details

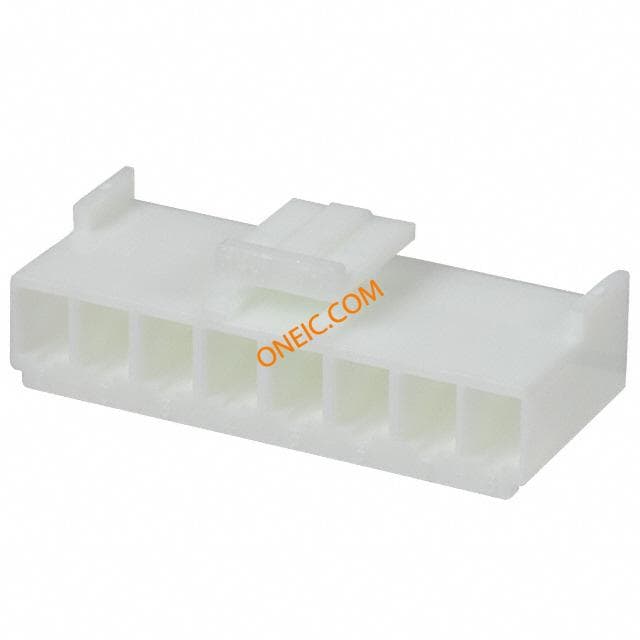

VHR-8N

JST Sales America Inc

CONN HOUSING VH 8POS 3.96MM WHT VH 3.96MM N TYPE HOUSING 8 WAY Conn Housing PL 8 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 8 Single row / Free hanging/cable mount VH, VHR-8N, JST JST VH 系列 1 行 3.96mm 节距 8 路侧入、顶入母印刷电路板安装 PCB 壳体

$0.3196

Details
