VHR-2N
| Manufacturer | |
| Description | CONN HOUSING VH 2POS 3.96MM WHT Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:2; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 2 Single row / Free hanging/cable mount VH, VHR-2N, JST JST VHR 系列 3.96mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250V | Number of Poles | 2 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 10 A |
| Insulation Resistance | 1000 MOhm | Voltage - Supply (Min) | 250VDC/250VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Natural | Depth | 13.3 mm |
| Pitch | 0.156" (3.96mm) | Width | 10.5mm |
| Height | 10.5 mm | Length | 7.86mm |
| Weight | 0.4 g | Packaging | Bulk |
| Wire Gauge | 16-22 AWG | Orientation | 直 |
| Contact Type | Female Socket | Pitch - Post | 3.96mm |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | for cable | Number of Rows | 1 |
| Connector Style | Single row | Locking Feature | lock |
| Housing Material | Polyamide 6 | Length - Overall | 7.86 mm |
| Package Quantity | 1000 | Connector - Cable | plug |
| Color - Connectors | white | Number of Contacts | 1 |
| Contact Termination | Crimp | Number of Positions | 2 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 22...16 AWG |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 1000 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | VH | Adapter Series | VH |
| Number of Units | 1 | Connection Method | Wire-Board |
| For Use With/Related Products | VH 系列可断开压接型连接器 | ||
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts

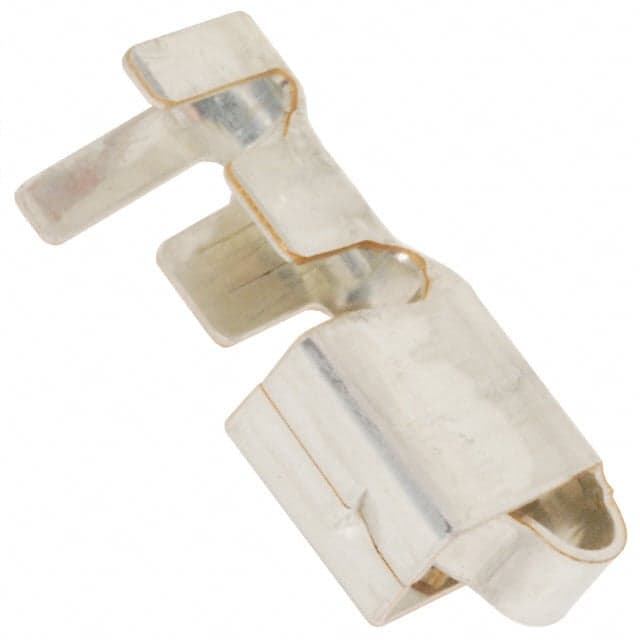

SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
B2P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 2POS 3.96MM JST VH Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 10A Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Box PCB pin header Pitch3.96 mm Poles 2 Single row / straight / with shroud VH, B2P-VH (LF)(SN), JST JST VH 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 10A , 通孔

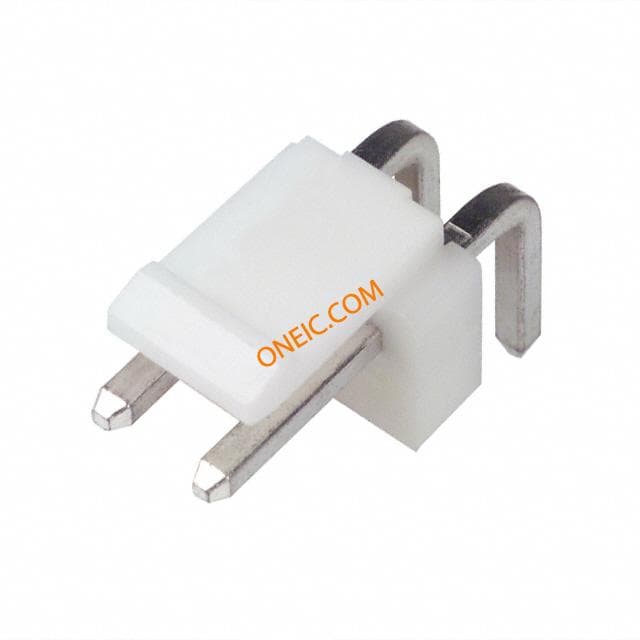

B2PS-VH(LF)(SN)
