VHR-7N
| Manufacturer | |
| Description | CONN HOUSING VH 7POS 3.96MM WHT VH 3.96MM N TYPE HOUSING 7 WAY Conn Housing PL 7 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:7; w/o terminals; 3.96mm; for cable JST VH 系列 1 行 3.96mm 节距 7 路 侧入、顶入 母 印刷电路板安装 PCB 壳体 |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 7A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Natural | Depth | 13.3mm |
| Pitch | 0.156" (3.96mm) | Width | 10.5mm |
| Length | 27.66mm | Weight | 1.31 g |
| Packaging | Bulk | Orientation | 侧入、顶入 |
| Contact Type | Female Socket | Pitch - Post | 3.96mm |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | lock |
| Housing Material | PA 6 | Package Quantity | 1 |
| Connector - Cable | plug | Number of Contacts | 7 |
| Contact Termination | Crimp | Number of Positions | 7 |
| 1st Connector Mounting Feature | 1x7 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Gender | Female | Series | VH |
| Adapter Series | VH | Number of Units | 1 |
| For Use With/Related Products | Compact Power Connector | ||
Documents & Media
Similar Parts
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG

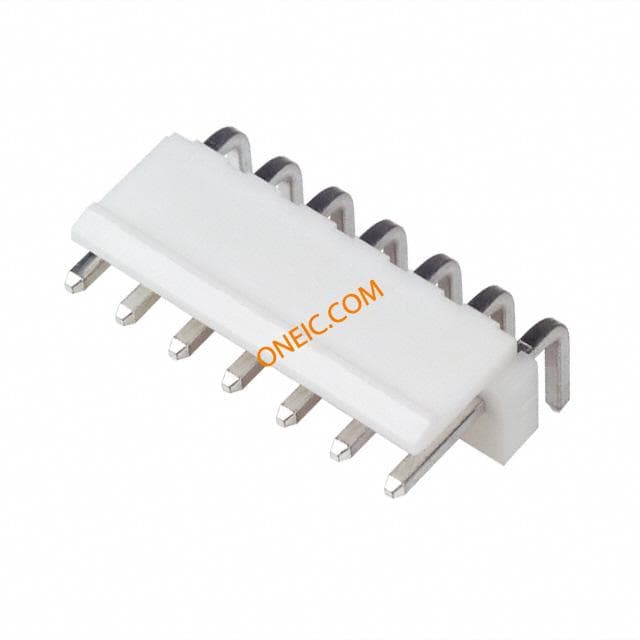

B7PS-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH SIDE 7POS 3.96MM JST VH Series 3.96mm Pitch 7 Way 1 Row Side Entry PCB Header, Solder Termination, 10A JST VH Series 3.96mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 10A Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Box JST VH 系列 7路 3.96mm节距 (1排) 侧入 PCB 针座 , 焊接端接, 10A, 通孔

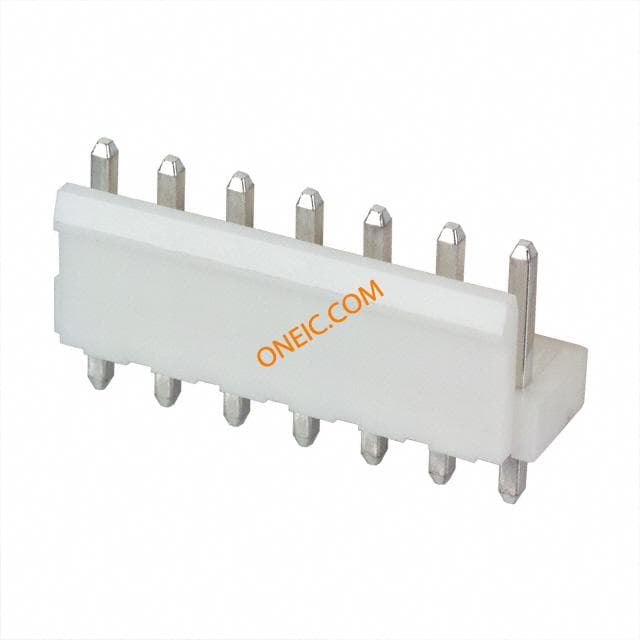

B7P-VH(LF)(SN)
