VHR-8N
| Manufacturer | |
| Description | CONN HOUSING VH 8POS 3.96MM WHT VH 3.96MM N TYPE HOUSING 8 WAY Conn Housing PL 8 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 8 Single row / Free hanging/cable mount VH, VHR-8N, JST JST VH 系列 1 行 3.96mm 节距 8 路 侧入、顶入 母 印刷电路板安装 PCB 壳体 |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 8 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 10 A |
| Insulation Resistance | 1000 MOhm | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Natural | Depth | 13.3mm |
| Pitch | 0.156" (3.96mm) | Width | 10.5mm |
| Height | 10.5 mm | Length | 31.62mm |
| Packaging | Bulk | Wire Gauge | 16-22 |
| Orientation | 侧入、顶入 | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 1 | Connector Style | Single row |
| Housing Material | PA 6 | Length - Overall | 31.62 mm |
| Color - Connectors | white | Number of Contacts | 8 |
| Contact Termination | Crimp | Number of Positions | 8 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 22...16 AWG |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | Female | Series | VH |
| Connection Method | Wire-Board | For Use With/Related Products | Compact Power Connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts
QPSF-125-24
Qualtek
POWER SUPPLY OPEN FRAME 24V 5.2A Switching Power Supplies 24V 5.2A 125W P/S SINGLE OUTPUT PowerSupply;AC-DC;24V@5.2A;90-264VIn;OpenFrame;PanelMount;PFC;QPSFSeries
QPSF-125-15
Qualtek
POWER SUPPLY OPEN FRAME 15V Switching Power Supplies 15V 8.4A 125W P/S SINGLE OUTPUT OpenFramepowersupply,125singleoutput,15VDC
QPSF-125-28
Qualtek
POWER SUPPLY OPEN FRAME 48V Switching Power Supplies 28V 4.5A 125W P/S SINGLE OUTPUT
QPSF-125-48
Qualtek
POWER SUPPLY OPEN FRAME 48V Switching Power Supplies 48V 2/6A 125W P/S SINGLE OUTPUT
QPSF-125-5
Qualtek
POWER SUPPLY OPEN FRAME 5V 20A Switching Power Supplies 5V 20A 125W P/S SINGLE OUTPUT
QPSF-125-12
Qualtek
POWR SUPPLY OPEN FRAME 12V 10.5A Linear and Switching Power Supplies 12V 10.5A 125W P/S SINGLE OUTPUT AC/DC Power Supply Single-OUT 12V 10.5A 125W Carton PowerSupply;AC-DC;12V@10.5A;90-264VIn;OpenFrame;PanelMount;PFC;QPSFSeries
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG

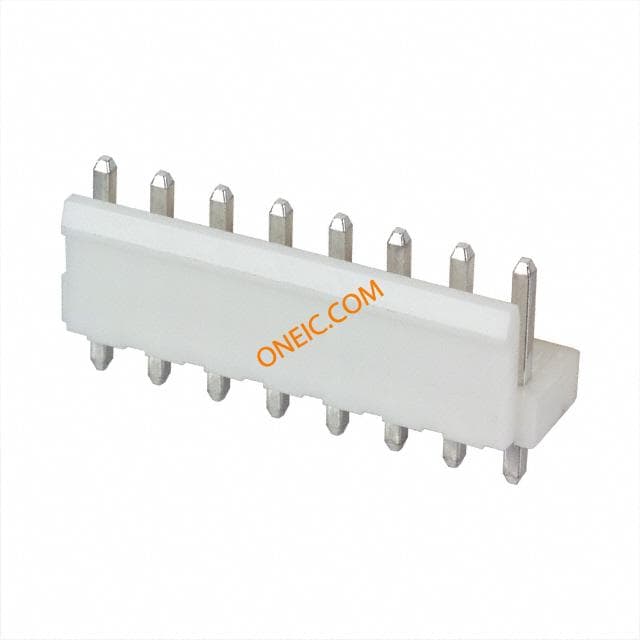

B8P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 8POS 3.96MM JST VH Series 3.96mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 10A JST VH Series 3.96mm Pitch 8 Way 1 Row Top Entry PCB Header, Solder Termination, 10A JST VH 系列 3.96mm节距 8路 (1排) 顶入 PCB 针座, 焊接端接, 10A , 通孔

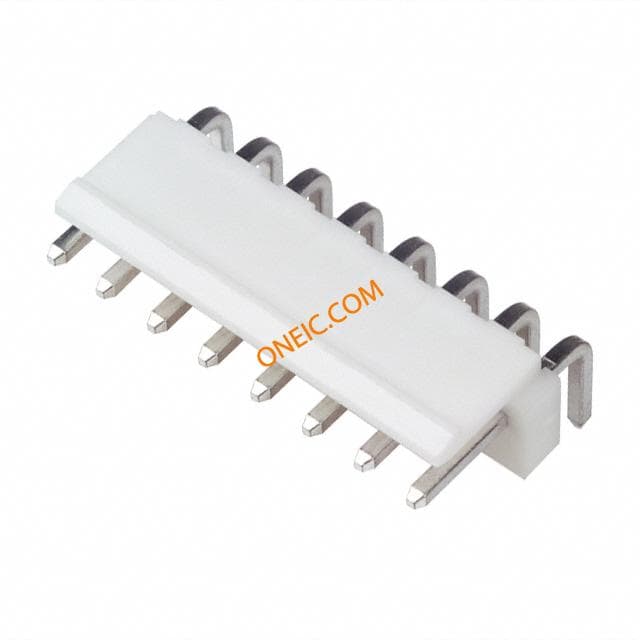

B8PS-VH(LF)(SN)
