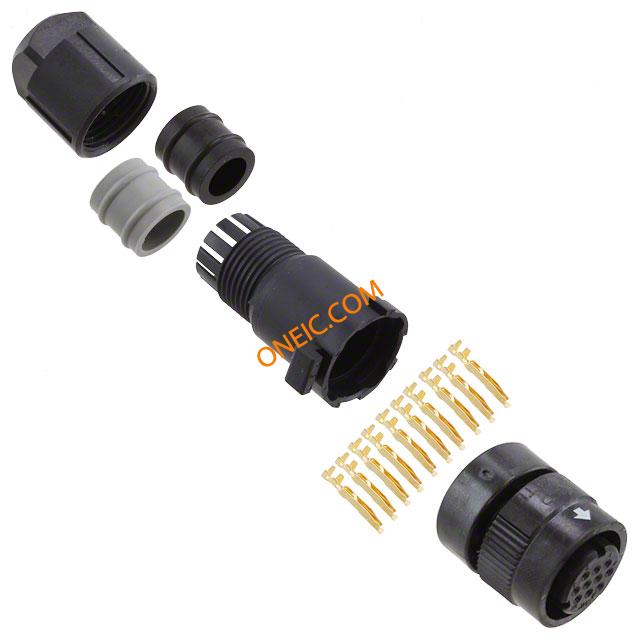

JN1DS10SLK
| Manufacturer | |
| Description | Standard Circular Connector 10P Cable Plug CONN PLUG 10POS STR W/SOCKET CABLEPLUGCIRCULARI/O10POSPIN |
| Category |
Business
| Other Names | 670-2246 | Product Category | Standard Circular Connector |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 200 V | Current Rating (Max) | 3 A |
Mechanical
| Packaging | Bulk | Shell Size | 10 |
| Orientation | N (Normal) | Shell Style | Plug |
| Contact Size | 22 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Plug for Female Contacts | Contact Finish | Gold |
| Fastening Type | Push-Twist | Mounting Style | Free Hanging |
| Shell Material | Plastic | Primary Material | Sealed |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Quick Lock | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | S |
| Shell Material, Finish | Synthetic Resin | ||
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | JN1 / JN2 | Manufacturer | JN1 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | ||
