点击放大查看

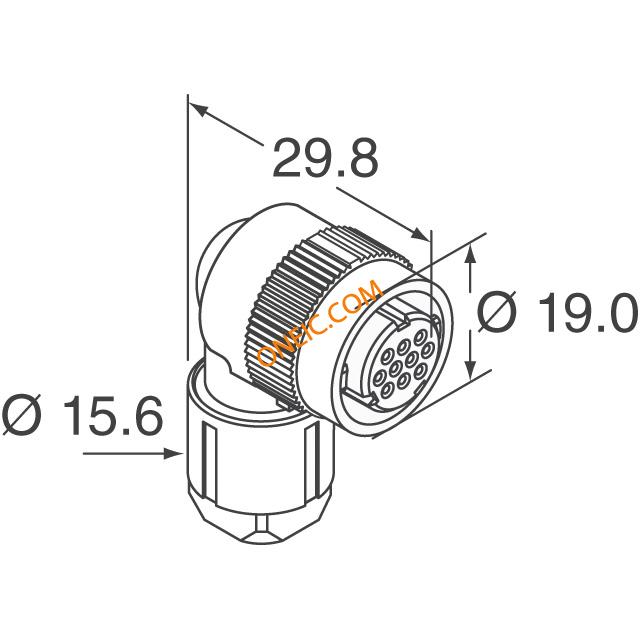

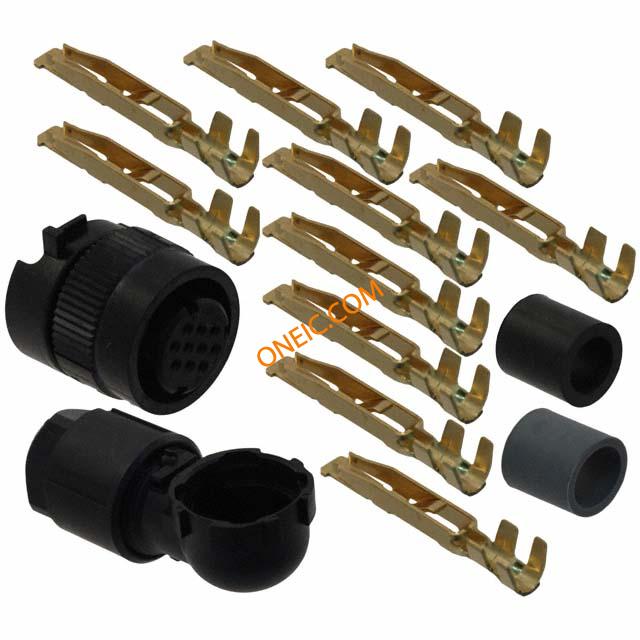

JN1FS10SLK
| Manufacturer | |
| Description | Standard Circular Connector 10P Cable Plug Socket R/A CONN PLUG 10POS R/A W/SCKT CRIMP R/ACABLEPLUGCIRCULARI/O10POSSOCKET |
| Category |
Business
| Other Names | 670-2248 | Product Category | Standard Circular Connector |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | ||
Mechanical
| Packaging | Bulk | Orientation | N (Normal) |
| Shell Style | Plug | Contact Size | 22 |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug for Female Contacts | Fastening Type | Push-Twist |
| Primary Material | Sealed | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | S |
| Shell Material, Finish | Synthetic Resin | ||
Product Info
| Note | Contacts Not Provided | Series | JN1 / JN2 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | ||
