09140023002
| Manufacturer | |
| Description | HAN 40A CRIMP MODULE, MALE 40Amp Male Crimp module Heavy Duty Power Connectors HAN MOD 40 M X 2 CRIMP MODULE Han40Acrimpmodule,Male Connector: rectangular; module; male; Han Modular 40A; PIN:2; 40A Han-Modular Modules: Han Mod 40 M x 2 crimp module Harting HAN Modular 系列 2 路 公插 RJ45-Rangierfeld , 额定电流 40A/ 1000 V |
| Category |
Business
| Part # Aliases | 002 09 09-14-002-3002 14 3002 | Standard Package | 1 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 40A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Gray | Weight | 0.01 kg |
| Packaging | Bulk | Contact Form | Han® C |
| Contact Type | Han® C | Mounting Type | crimped |
| Connector Type | Module without Contacts | Contact Finish | Silver |
| Number of Rows | 1 | Insertion Force | Male |
| Contact Material | Copper Alloy | Housing Material | Polycarbonate (PC) |
| Package Quantity | 1 | Connector - Cable | module |
| Termination Style | Crimp | Number of Contacts | 2 |
| Number of Positions | 2 | Wire Gauge or Range - AWG | 16-8 |
Product Info
| Spg | 1 | Type | CONNECTORS |
| Gender | Male | Series | Han Modular |
| CAD Drawing | 3D CAD Model | Product Type | Housings |
| Accessory Type | 模块 | Adapter Series | Han Modular 40A |
| Measuring Range | Han 40A 压接 | Number of Units | 1 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
09320006107
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC MALE CRIMP 4mm2 CROSS SECTION HAN HSC MALE CRIMP CONT LEVEL Conn Contact M 1 POS ST 1 Terminal 1 Port Connector;MaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; male; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Male: Han HsC Male Crimp Contacts Level 4 mm

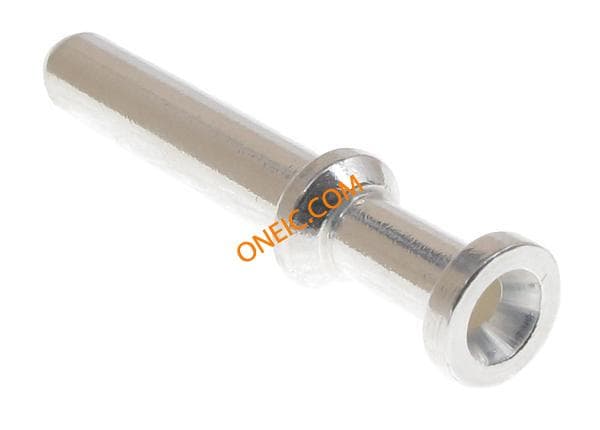

09320006105
