09320006104
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC MALE CRIMP 1.5mm2 CROSS SECTION HAN HSC MALE CRIMP CONT 16 AWG Han HsC Male Crimp Contact 16 AWG HANHSCMALECRIMPCONTACT16AWG Contact; male; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列 公插 压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器 |
| Category |
Business
| Part # Aliases | 000 09 09-32-000-6104 32 6104 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830 V | Contact Resistance | 1 |
| Current Rating (Max) | 40A | ||
Mechanical
| Depth | 6 mm | Pitch | Not Required mm |
| Height | 10 | Weight | 3.35 g |
| Packaging | Bulk | Wire Gauge | 16 AWG |
| Shield Type | No | Termination | Crimp |
| Weight (g): | 2.80000 | Contact Type | Power |
| Mounting Type | Cable Mount | Pin or Socket | Pin |
| Connector Type | Connector Rectangular | Contact Finish | Silver |
| Mounting Style | Through Hole | Insertion Force | Male |
| Contact Material | Copper Alloy | Housing Material | Not Required |
| Length - Overall | 29.1 mm | Package Quantity | 25 |
| Connector - Cable | contact | Termination Style | Crimp |
| Number of Contacts | 1 POS | Contact Termination | Crimp |
| Contact Finish Thickness | 118.1µin (3.00µm) | Wire Gauge or Range - AWG | 16 |
| Wire Gauge or Range - mm2 | 1.5mm2 | Contact Material - Plating | silver plated |
Product Info
| Spg | 25 | Type | Machined |
| Gender | PIN | Series | Han-Com |
| Product Type | Contacts | Accessory Type | Crimp Contact |
| Adapter Series | Han Com | Measuring Range | Han 40A 压接、Han C、Han CC、Han CD、Han Com、Han HSC |
| Number of Units | 1 | For Use With/Related Products | Heavy Duty Power Connector |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | 125 |
Similar Parts
09990000110
HARTING
Crimpers HAN CRIMP TOOL FOR C D E CONTACTS Crimp Tool Han Hand Tools HAN CRIMP TOOL FOR C D E CONTACTS HAN HAND CRIMP TOOL Parallel action crimp tool for HAN conn HartingCrimpTool Tool: for crimping; terminals; 0.14÷4mm2; 26÷12AWG; Series: Han Han Tools: Han Hand Crimp Tool Harting Crimp Contact 压接工具 , 适用于26 → 12 AWG 线规格
09990000001
HARTING
Crimpers HAN C CRIMP TOOL Crimping Tool For Contacts Han-Yellock Hand Tools HAN C CRIMP TOOL BUCHANAN CRIMPING TOOL. HAN Power Tool; Industrial; Crimp; Single; 6.3 mm PowerTool,Industrial;Crimp;Single;6.3mm Tool: for crimping; terminals; 0.14÷2.5mm2; Series: Han E Han Tools: Buchanan Crimping Tool Han Harting Han D 系列 压接工具 , 适用于Han D 触点
09140073001
Harting Technology Group

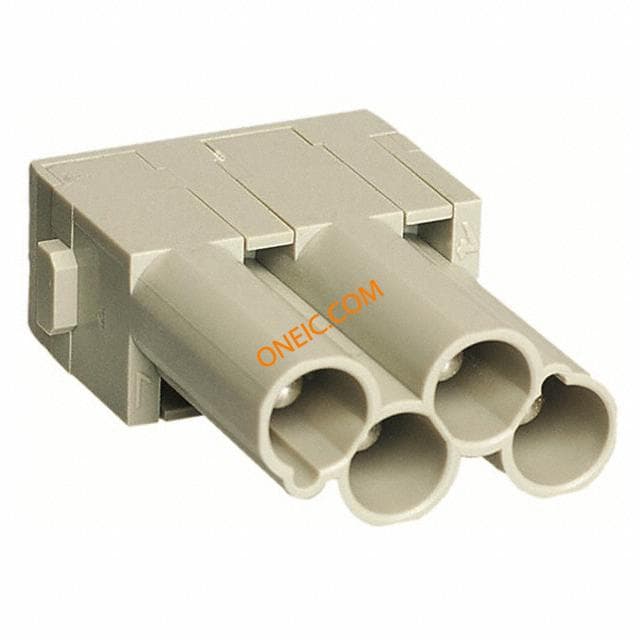

Han Cd - Modul Sc / Han Cd - Module Sc Stifleinsatz / Male Inser Heavy Duty Power Connectors MOD FOR MALE CON HAN CD MODULE HAN CD MODULE CRIMP MALE HAN3/4MOD-M-C Connector: HAN; module; male; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - M-c Harting HAN Modular 系列 1行 3针 插头 电源连接器外壳
