09320006109
| Manufacturer | |
| Description | Heavy Duty Power Connectors MALE CONTACT STD SILVER PLATED HSC MALE CRIMP CONTACTS LEVEL 2 Contact; 10mm2; Han Modular 40A; silver plated; crimped; 3mΩ Harting Han C 系列 公插 触点 , 额定电流 40A, 适用于压接模块 |
| Category |
Business
| Part # Aliases | 000 09 09-32-000-6109 32 6109 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Contact Resistance | 3mΩ | Current Rating (Max) | 40A |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Weight | 4.75 g | Packaging | Bulk |
| Wire Gauge | 8 AWG | Mounting Type | crimped |
| Pin or Socket | Pin | Connector Type | HAN |
| Contact Finish | Silver | Insertion Force | Male |
| Contact Material | copper alloy | Package Quantity | 1 |
| Connector - Cable | contact | Termination Style | Crimp |
| Contact Termination | Crimp | Cross Section Shape | 10mm2 |
| Contact Finish Thickness | 118.1µin (3.00µm) | Wire Gauge or Range - AWG | 8 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 1 | Type | Machined |
| Series | Han C | Product Type | Contacts |
| Accessory Type | 压接触点 | Adapter Series | Han Modular 40A |
| Number of Units | 1 | For Use With/Related Products | 压接模块 |
Environmental
| Operating Temperature | -40...125°C | ||
Similar Parts

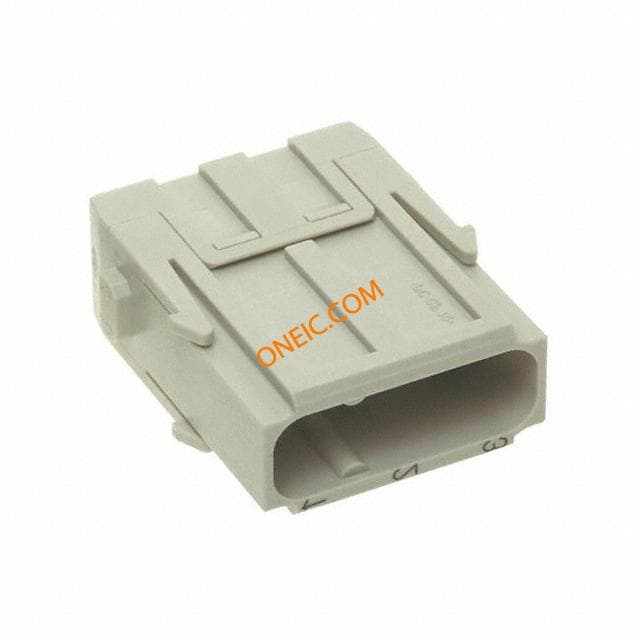

09140033002
Harting Technology Group
Conn Housing M 3 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN C 3P MALE ORDER CONTACTS SEP HAN C MODULE, CRIMP MALE - 7.5MM HanC male contact module,3 pos,7.5mm HANMODULAR3CMODULEMALE40AFOR7.5M Connector: HAN; module; male; Han Modular C; PIN:3; w/o terminals Han-Modular Modules: Han Modular 3 C Module male 40A for 7.5m Harting HAN Modular 系列 3 路 公插 RJ45-Rangierfeld , 额定电流 40A/ 500 V

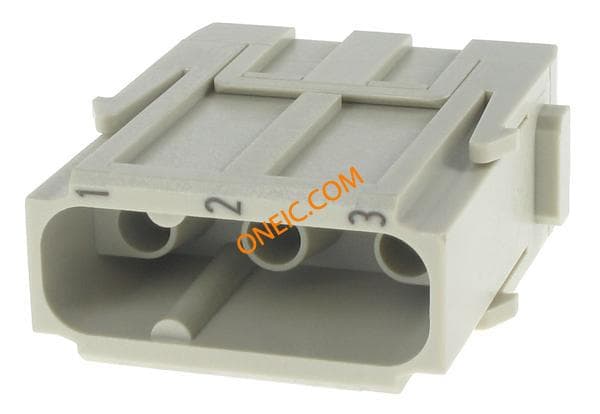

09140033001
