点击放大查看
09320006108
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC MALE CRIMP 6mm2 CROSS SECTION HAN HSC MALE CRIMP CONT 10 AWG Connector;MaleInsert;SilverPlated10AWGPowerContact;HanCModular Contact; male; 6mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Male: Han HsC Male Crimp Contacts 10 AWG |
| Category |
Business
| Part # Aliases | 000 09 09-32-000-6108 32 6108 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 690 V | Contact Resistance | 1 |
| Current Rating (Max) | 40 A | ||
Mechanical
| Depth | 10 | Height | 10 |
| Weight | 3.25 g | Packaging | Bulk |
| Wire Gauge | 10 AWG | Shield Type | No |
| Termination | Crimp | Weight (g): | 3.00000 |
| Contact Type | Power | Mounting Type | Cable Mount |
| Pin or Socket | Pin | Connector Type | Connector Rectangular |
| Contact Finish | Silver | Insertion Force | Male |
| Contact Material | Copper Alloy | Length - Overall | 29.1 |
| Package Quantity | 25 | Connector - Cable | contact |
| Termination Style | Crimp | Contact Termination | Crimp |
| Length - Termination | 29.1mm | Contact Finish Thickness | 118.1µin (3.00µm) |
| Wire Gauge or Range - AWG | 10 | Wire Gauge or Range - mm2 | 6mm2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 25 | Type | Machined |
| Gender | PIN | Series | Han Q |
| Product Type | Contacts | Adapter Series | Han Com |
| Number of Units | 1 | ||
Environmental
| Mechanical Life | 500cycles | Operating Temperature | 125 |
Similar Parts
09990000303
HARTING
Crimpers CRIMPING TOOL FOR CONTACTS HAN C Han Power Connector Tools And Accessories Crimping Tool For Contacts Han C Hand Tools CRIMPING TOOL FOR CONTACTS HAN C HANDCRIMPING TOOL HAN HSC Harting Han C crimp tool HANDCRIMPINGTOOLHANHSC Harting Crimp Contact 压接工具 , 适用于12 → 10 AWG 线规格

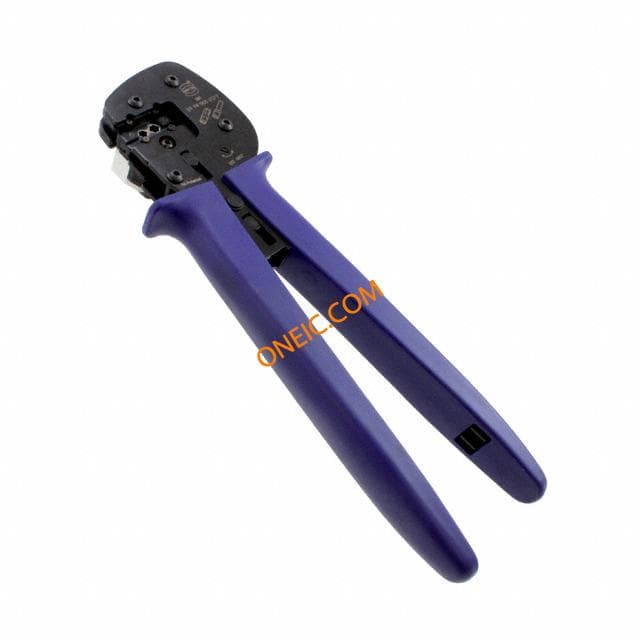

09990000377
HARTING
Crimpers CRIMPING TOOL FOR CON HAN-C Hand Tools CRIMPING TOOL FOR CON HAN-C TOOL CRIMPING HAN C ToolCrimpingHartingHanC Harting Han C 系列 压接工具 , 适用于Han-Yellock PE 压接触点
09140073001
Harting Technology Group
Han Cd - Modul Sc / Han Cd - Module Sc Stifleinsatz / Male Inser Heavy Duty Power Connectors MOD FOR MALE CON HAN CD MODULE HAN CD MODULE CRIMP MALE HAN3/4MOD-M-C Connector: HAN; module; male; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - M-c Harting HAN Modular 系列 1行 3针 插头 电源连接器外壳

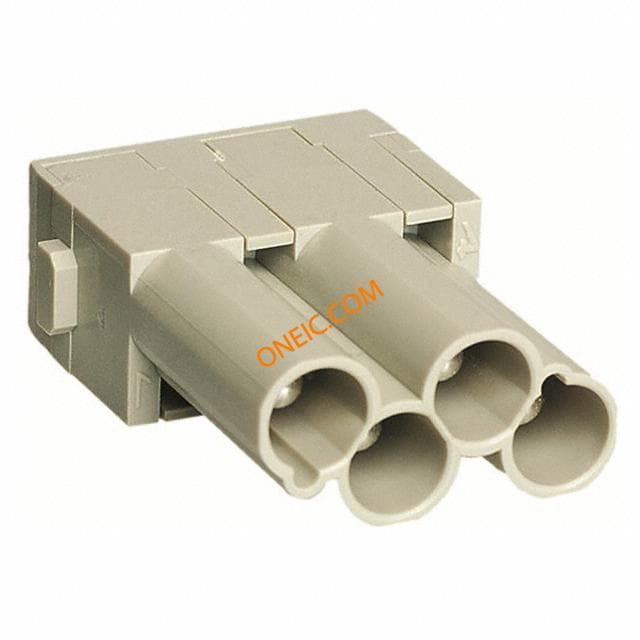

09140043041
Harting Technology Group
Conn Housing F 4Power POS Crimp ST Cable Mount Heavy Duty Power Connectors MOD FOR MALE CON HAN CC 4 CRIMP CON HAN CC PROTECTED MOD CRIMP MALE Han Power Connector 4 Mod, Male, 40A HAN4MODM-C40A Connector: HAN; module; male; Han Modular CC Protected; PIN:4 Han-Modular Modules: Han 4 Mod M-c 40A Harting HAN Modular 系列 4 路 公插 受保护模块 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器
09380423001
Harting Technology Group
Conn Housing M 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16B CRIMP TERM HAN K 6/36 POS. M INSERT CRIMP HANK6/36POS.MINSERTCRIMP Han HSC Male Insert: Han K 6/36 Position M Insert Crimp Harting Han K 系列 43针 插头 电源连接器
09120063041
Harting Technology Group
Conn Housing M 7 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN Q4/2 CRIMP TERM HAN Q 4/2 MALE INSERT CRIMP TERM HeavyDutyPowerConnectorsMALEINSERTHANQ4/2CRIMPTERM Han Q Male Insert: Han Q 4/2 Male Insert Crimp Term Harting Han Q 系列 3行 7针 插头 电源连接器

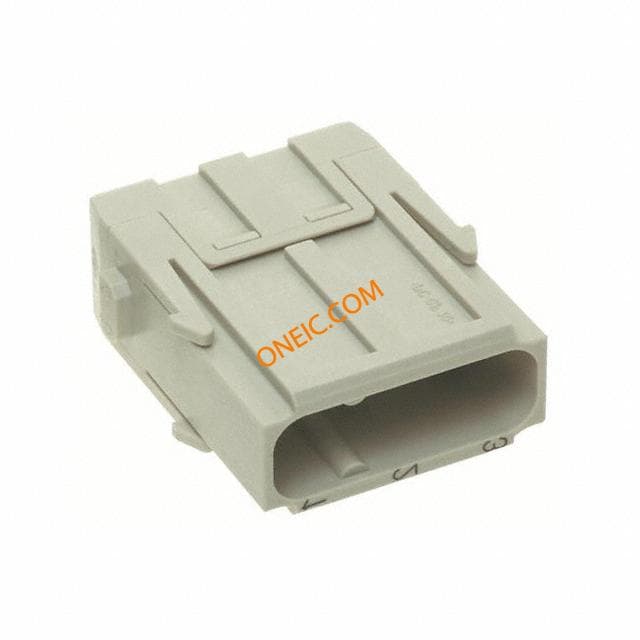

09140033002
Harting Technology Group
Conn Housing M 3 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN C 3P MALE ORDER CONTACTS SEP HAN C MODULE, CRIMP MALE - 7.5MM HanC male contact module,3 pos,7.5mm HANMODULAR3CMODULEMALE40AFOR7.5M Connector: HAN; module; male; Han Modular C; PIN:3; w/o terminals Han-Modular Modules: Han Modular 3 C Module male 40A for 7.5m Harting HAN Modular 系列 3 路 公插 RJ45-Rangierfeld , 额定电流 40A/ 500 V

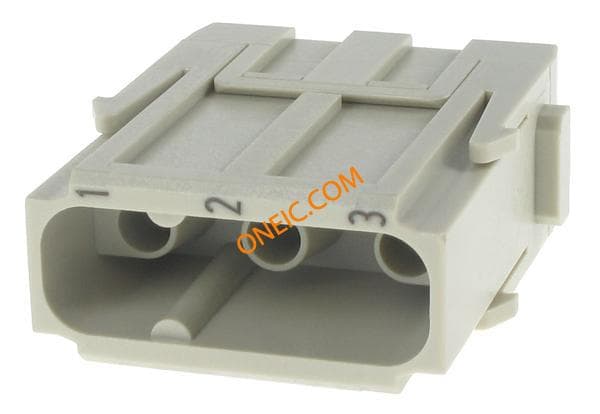

09140033001
