点击放大查看

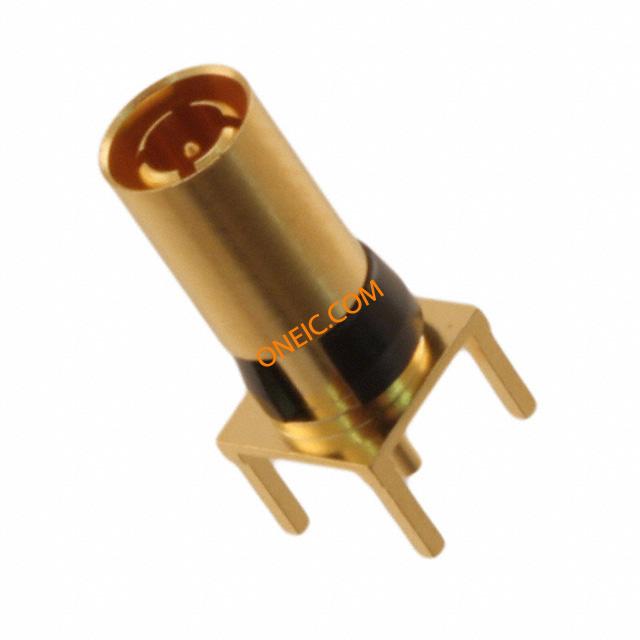

09030006182
| Manufacturer | |
| Description | DIN-SGNL COAX M 50OHM FOR M-FLAT DIN 41612 Connectors 50 OHM TYPE M STRT COAX CONTACT Coax contact m for connectors f Coaxcontactmforconnectorsf Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点 |
| Category |
Business
| Part # Aliases | 000 03 09 09-03-000-6182 6182 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 6A |
Mechanical
| Packaging | Bulk | Mounting Type | Through Hole |
| Pin or Socket | Pin, Center | Connector Type | 公插 |
| Contact Material | Copper Alloy | Termination Style | Through Hole |
| Contact Termination | Solder, PCB | ||
Product Info
| Type | Coaxial | Gender | Male |
| Series | 09 03 | Direction | 直 |
| CAD Drawing | 3D CAD Model | Product Type | Contacts |
| For Use With/Related Products | DIN41612 Type M Female Connector | ||
Environmental
| Operating Temperature | +125°C | ||
Similar Parts

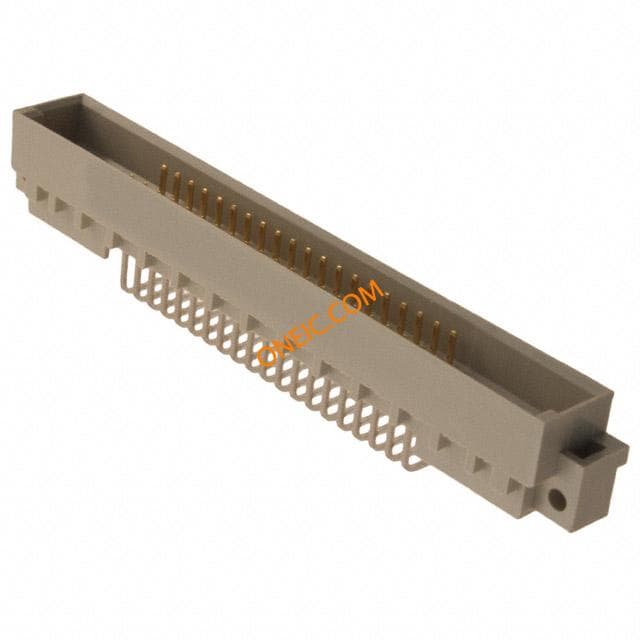

09031406901
HARTING
DIN 41612 Connectors DIN-SIGNAL M040MS-3,0C1-2 DIN-SIGNAL M040POS MS-3,0C1-2

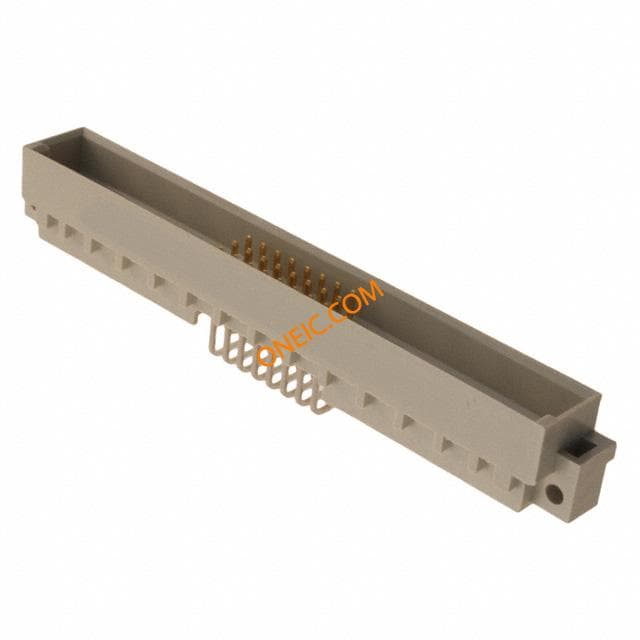

09031246901
