09031786901
| Manufacturer | |

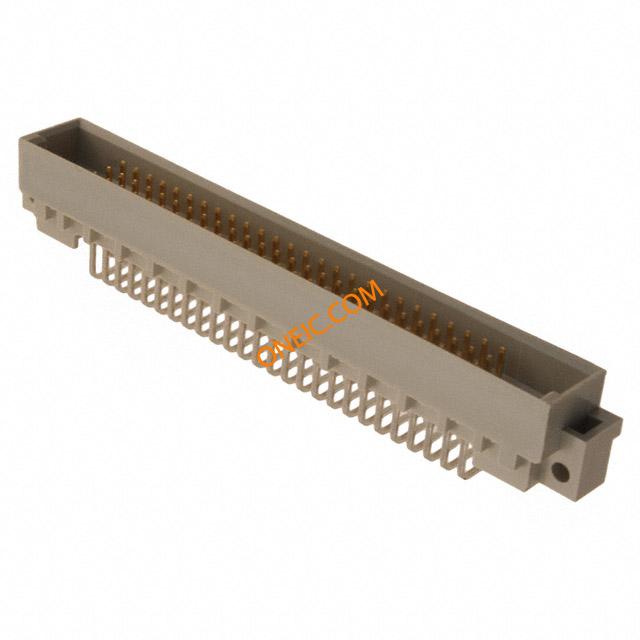

| Description | Conn Shrouded Header M 78 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 78+2P 2A MALE R/A DIN-SIGNAL M078MS-1C1-2 78 way DIN41612 signal cont conn w/2 plg DINTypeMRightAnglesolderpinsfor0.063PCB(78+2)ContactsMale Harting 78 + 2 路 2.54mm 节距, M型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-178-6901 178 6901 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 17.72 | Pitch | 0.100" (2.54mm) |
| Height | 11 | Packaging | Bulk |
| Shell Size | M | Orientation | 直角 |
| Termination | Solder | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94mm | Primary Material | HighCurrent |
| Termination Rows | 焊接 | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 78 |
| Number of Positions | 80 (78 + 2 Coax, Fiber Optic or Power) | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 0.05" | Contact Finish Thickness | Flash |
Product Info
| Type | Shrouded Header | Style | M |
| Gender | M | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
Similar Parts
09060019935
HARTING

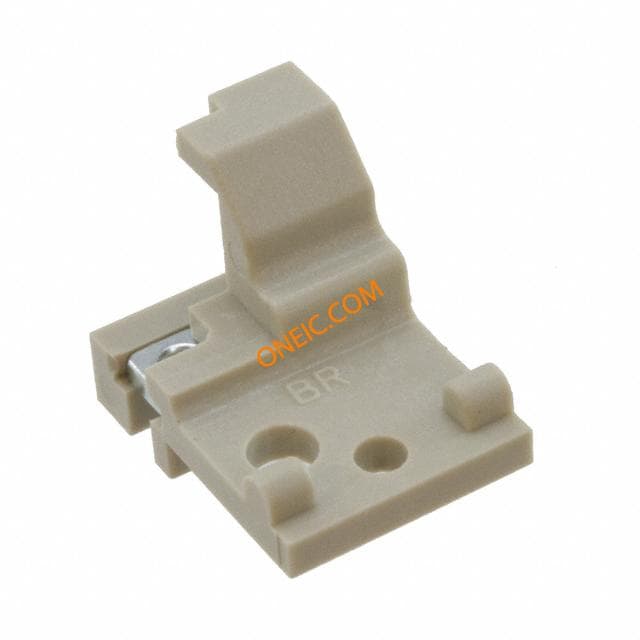

DIN 41612 Connectors FIXING BRACKET BR 15MM WITH SCREW NUT DIN-POWER FIXING BRACKET
09032786850
HARTING
DIN 41612 Connectors DIN-SIGNAL M78+2FP-4,5C1-2 DIN-SIGNAL M78+2FP-4,5C1-2
09060009996
HARTING
DIN 41612 Connectors DIN-PWR FIXING BRKT B RIGHT,COD Fixing Bracket B For Male Connectors With Coding RIGHt 15mm DIN-POWER FIXING BRACKET
09060009907
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B LEFT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09032786805
Harting Technology Group
Conn DIN 41612 F 78 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 78+2P FML TYPE M STRT SLDR DIN-SIGNAL M78+2FS-4,5C1-2 78way 2 cavities DIN41612 socket,4-4.5mm 78-WAY+2SOCKET Harting 78 + 2 路 2.54mm 节距, M型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09030006103
Harting Technology Group

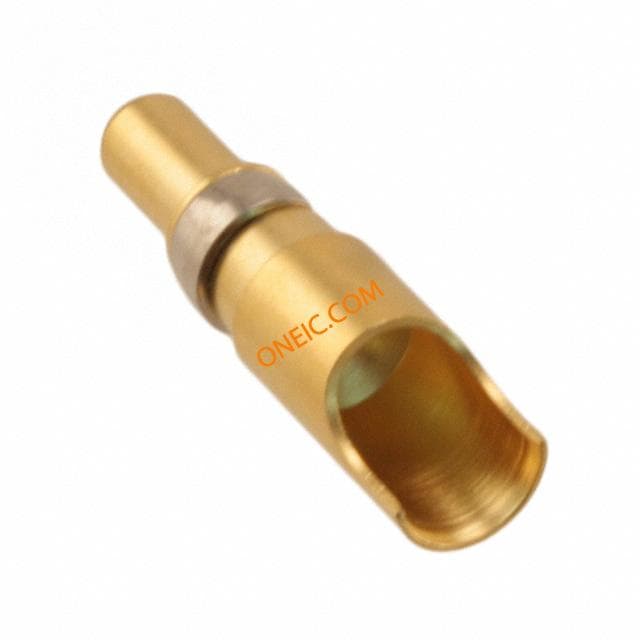

Contact PIN Solder Cup ST Cable Mount DIN 41612 Connectors MALE CONTACTS SOLDER DIN-SIGNAL HI CURRENT M 40A SLD DIN-Signal high current contact solder m DINTypeM40Amphighcurrentcontact,soldercup(Male) Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点
09060009908
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B RIGHT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09030006104
Harting Technology Group

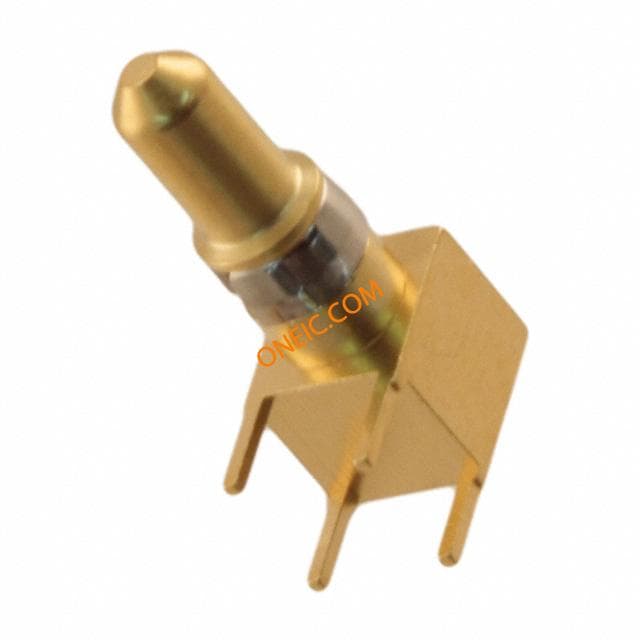

Contact PIN Solder RA Thru-Hole DIN 41612 Connectors 20A CONTACT R/A DIN-SIGNAL HI CURRENT M 20A SLD DIN-Signal high current contact solder m MALE POWER CONTACT 20A RIGHT ANGLED SOLDER FOR CONNECTOR TYPE M DINTypeM40Amphighcurrentcontact,RightAnglesolderpins(Male) Harting 09 03 系列 公 铜合金触点, 直角 DIN 连接器触点
09030006101
Harting Technology Group

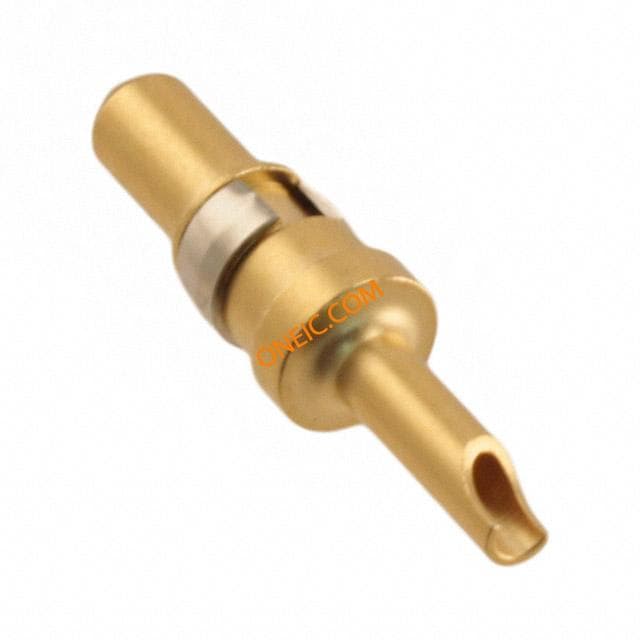

MALE POWER CONTACT 10A SOLDER FOR MALE CONNECTOR TYPE M DIN 41612 Connectors MALE HI CURRENT CNT SOLDER 10 AMP DIN-SIGNAL HI CURRENT M 10A SLD
09060009909
Harting
DIN-POWER FIXING BRACKET BL 15MM DIN 41612 Connectors FIXING BRKT LEFT TYPE MH STANDARD Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009910
Harting
DIN-POWER FIXING BRACKET BR 15MM DIN 41612 Connectors FIXING BRKT RIGHT TYPE MH STANDARD Fixing element; right sale Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009966
Harting
DIN-POWER FIXING BRACKET B LEFT DIN 41612 Connectors DIN PWR FIXING BRKT B LT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009967
Harting
DIN-POWER FIXING BRACKET B RIGHT DIN 41612 Connectors DIN PWR FIXING BRKT B RT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09030006110
Harting

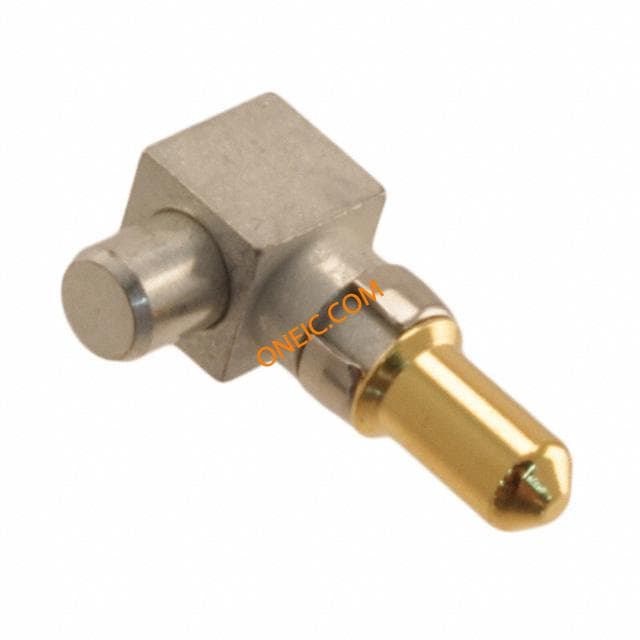

DIN-SIGNAL HI CURRENT M 40A SLD DIN 41612 Connectors DIN SIG HI CURRENT M 40A SLDR
09030006182
Harting

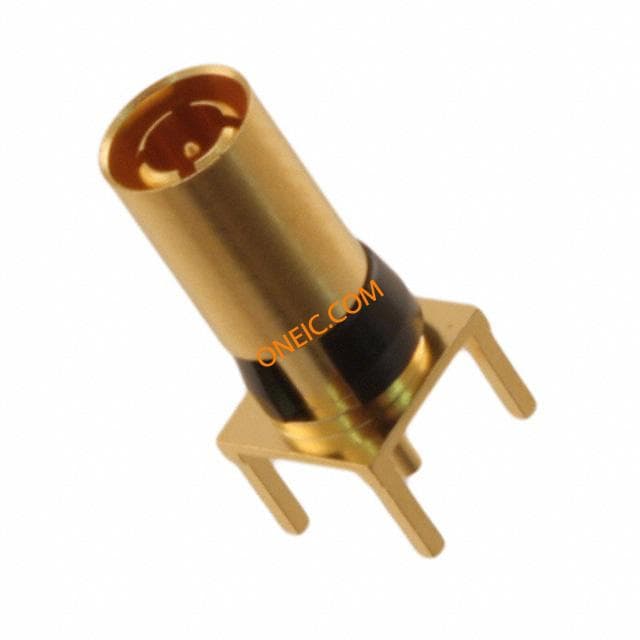

DIN-SGNL COAX M 50OHM FOR M-FLAT DIN 41612 Connectors 50 OHM TYPE M STRT COAX CONTACT Coax contact m for connectors f Coaxcontactmforconnectorsf Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点
