09031246901
| Manufacturer | |

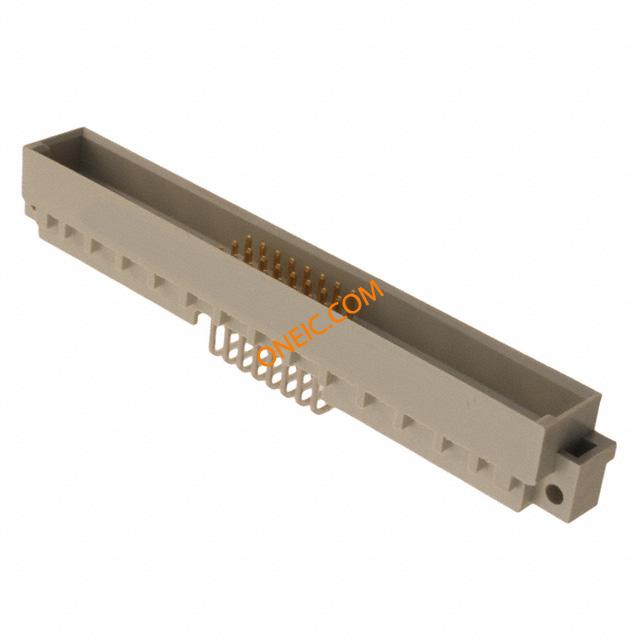

| Description | Conn Shrouded Header M 24 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 24+8P 2A MALE R/A DIN-SIGNAL M024POS MS-3,0C1-2 24 way +8,DIN41612 plug,r/a solder pin DINTypeMRightAnglesolderpinsfor0.063PCB(24+8)ContactsMale Harting 24 + 8 路 2.54mm 节距, M型 C2等级 a/b/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-124-6901 124 6901 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Height | 11 |
| Packaging | Bulk | Shell Size | M |
| Orientation | 直角 | Termination | Solder |
| Weight (g): | 9.60000 | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Header, Male Pins |
| Contact Finish | Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94mm | Primary Material | HighCurrent |
| Termination Rows | 焊接 | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 24 |
| Number of Positions | 32 (24 + 8 Coax, Fiber Optic or Power) | Mounting Hole Diameter | 0.05" |
Product Info
| Type | Shrouded Header | Style | M |
| Gender | M | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | 24 |
Environmental
| Ratings | C2 | Level, Class | 2 |
