09031426901
| Manufacturer | |

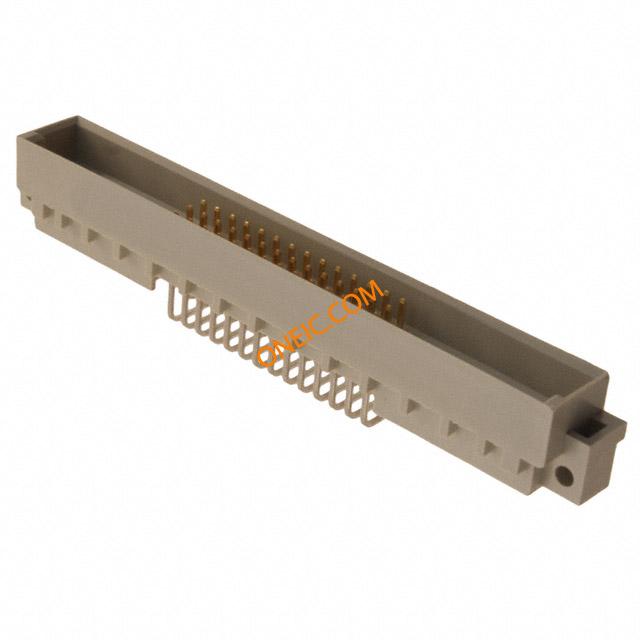

| Description | Conn Shrouded Header M 42 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 42+6P 2A MALE R/A DIN-SIGNAL M042POS MS-3,0C1-2 42 way +6,DIN41612 plug,r/a solder pin DINTypeMRightAnglesolderpinsfor0.063PCB(42+6)ContactsMale Harting 42 + 6 路 2.54mm 节距, M型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-142-6901 142 6901 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 17.72 mm | Pitch | 0.100" (2.54mm) |
| Height | 8.5 mm | Packaging | Bulk |
| Shell Size | M | Orientation | 直角 |
| Termination | Solder | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94 mm |
| Primary Material | HighCurrent | Termination Rows | 焊接 |
| Pin Hole Diameter | 2.54mm | Termination Style | Solder Pin |
| Number of Contacts | 42 | Number of Positions | 48 (42 + 6 Coax, Fiber Optic or Power) |
| Material - Insulation | Thermoplastic, Glass Filled | Mounting Hole Diameter | 0.05" |
Product Info
| Type | Shrouded Header | Style | M |
| Gender | M | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | 42 |
Environmental
| Ratings | C2 | Level, Class | 2 |
Similar Parts
09032426805
Harting Technology Group
Conn DIN 41612 F 6Power/42Signal POS Solder ST Thru-Hole DIN 41612 Connectors 42+6P 2A FEMALE STRT DIN-SIGNAL M42+6FS-4,5C1-2 42way 6 cavities DIN41612 socket,4-4.5mm DINTypeMStraightsolderpins,0.177longfor0.125PCB(42+6)Female Harting 42 + 6 路, M型 C2等级 a/b/c 直向 DIN 41612 插座, 焊接端接
09030006103
Harting Technology Group
Contact PIN Solder Cup ST Cable Mount DIN 41612 Connectors MALE CONTACTS SOLDER DIN-SIGNAL HI CURRENT M 40A SLD DIN-Signal high current contact solder m DINTypeM40Amphighcurrentcontact,soldercup(Male) Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点
09030006104
Harting Technology Group
Contact PIN Solder RA Thru-Hole DIN 41612 Connectors 20A CONTACT R/A DIN-SIGNAL HI CURRENT M 20A SLD DIN-Signal high current contact solder m MALE POWER CONTACT 20A RIGHT ANGLED SOLDER FOR CONNECTOR TYPE M DINTypeM40Amphighcurrentcontact,RightAnglesolderpins(Male) Harting 09 03 系列 公 铜合金触点, 直角 DIN 连接器触点
09030006101
Harting Technology Group
MALE POWER CONTACT 10A SOLDER FOR MALE CONNECTOR TYPE M DIN 41612 Connectors MALE HI CURRENT CNT SOLDER 10 AMP DIN-SIGNAL HI CURRENT M 10A SLD
09030006110
Harting
DIN-SIGNAL HI CURRENT M 40A SLD DIN 41612 Connectors DIN SIG HI CURRENT M 40A SLDR
09030006182
Harting
DIN-SGNL COAX M 50OHM FOR M-FLAT DIN 41612 Connectors 50 OHM TYPE M STRT COAX CONTACT Coax contact m for connectors f Coaxcontactmforconnectorsf Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点
09032426850
Harting
DIN-SIGNAL M42+6FP-4,5C1-2 DIN 41612 Connectors DIN-SIGNAL M42+6FP-4,5C1-2
