09734966801
| Manufacturer | |

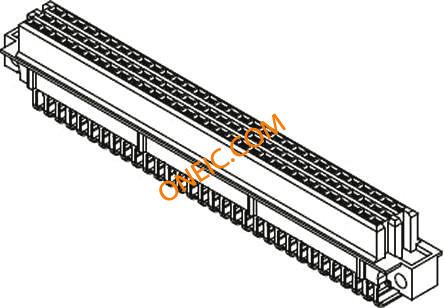

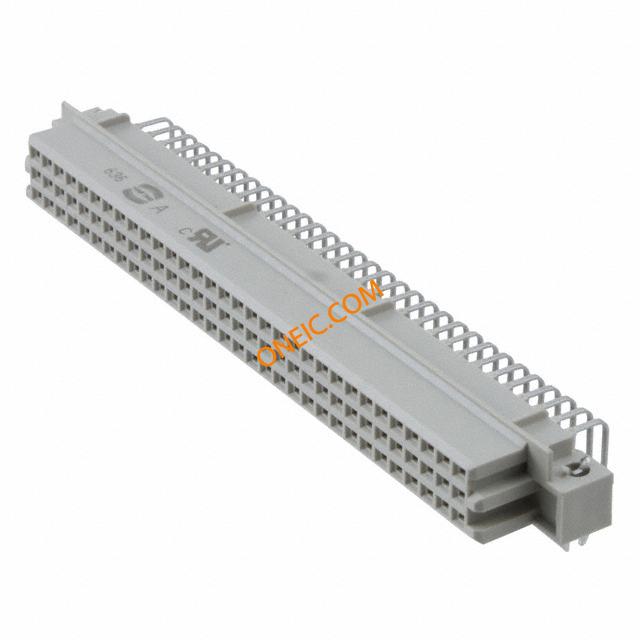

| Description | Conn DIN 41612 F 96 POS 2.54mm Solder RA Thru-Hole Harting DIN-Signal R096FS-3.0C1-2-clip DIN-SIGNAL R096FS-3,0C1-2-CLIP Connector DIN-Signal solder 96-way f DIN 41612 Connectors DIN-Signal R096FS-3.0C1-2-clip ConnectorDIN-Signalsolder96-wayf Harting 09 73 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 09 09-73-496-6801 496 6801 73 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Depth | 17.82 | Pitch | 0.100" (2.54mm) |
| Height | 10.5 | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Mounting Type | Right Angle | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 | Termination Rows | a/b/c |
| Termination Style | Through Hole | Number of Contacts | 96 |
| Number of Positions | 96 | ||
Product Info
| Type | DIN 41612 | Style | R |
| Gender | F | Series | 09 73 |
| Features | Mounting Clips | Class Code | C2 |
| Product Type | Receptacles | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
