09733966903

Manufacturer	HARTING Technology Group

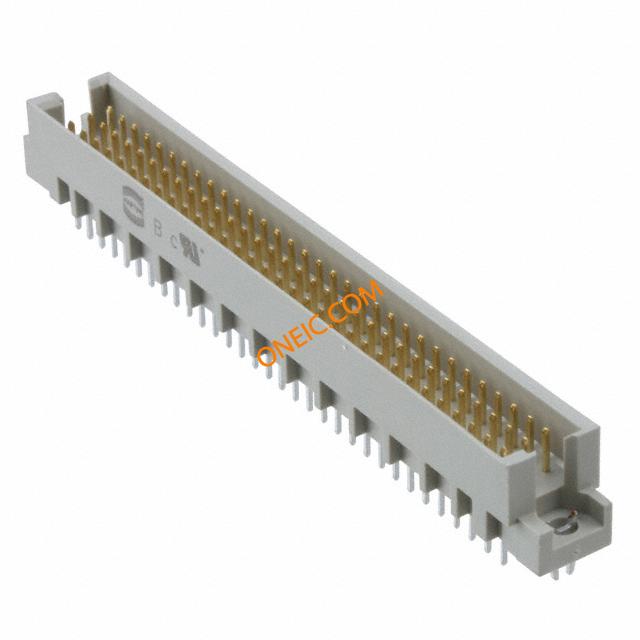

Description	DIN-SIGNAL R096MS-4,0C1-2-CLIP Harting DIN-Signal R096MS-4.0C1-2-clip Connector DIN-Signal solder 96-way m DIN 41612 Connectors DIN-Signal R096MS-4.0C1-2-clip ConnectorDIN-Signalsolder96-waym Harting 09 73 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Part # Aliases	09 09-73-396-6903 396 6903 73	Standard Package	1
Factory Pack Quantity	20

Compliance

RoHS

Compliant

Electrical

Contact Resistance

20mΩ

Current Rating (Max)

Mechanical

Pitch	0.100" (2.54mm)	Packaging	Bulk
Orientation	直	Termination	Solder
Weight (g):	20.80000	Mounting Type	Through Hole
Connector Type	Header, Male Pins	Contact Finish	Gold over Palladium Nickel
Number of Rows	3	Contact Material	Copper Alloy
Housing Material	Thermoplastic	Termination Rows	a/b/c
Number of Contacts	96	Number of Positions	96

Product Info

Type	R	Style	R
Gender	Male	Series	09 73
Features	Mounting Clips	Class Code	C2
Outlet Types and Quantity	A/b/c	Number of Positions Loaded	All

Environmental

Ratings	C2	Level, Class	2
Operating Temperature	+125°C

Documents & Media

PDF Document

TB_0973396x903_BL01_R35548-37662.pdf
