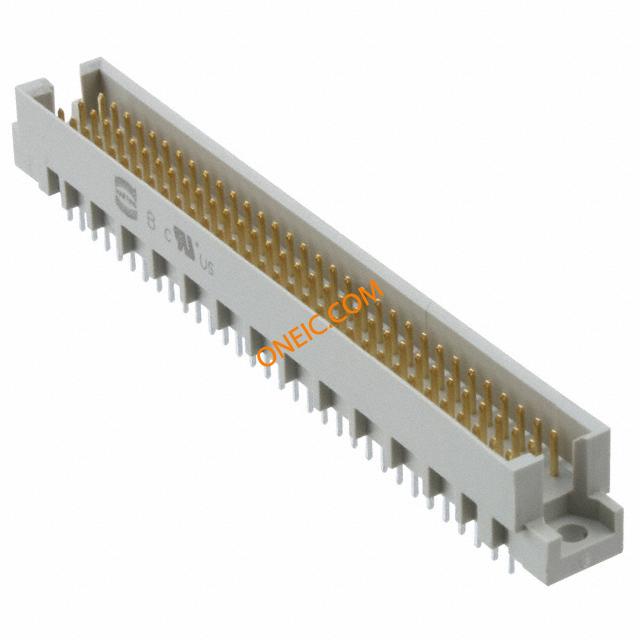

09731966903

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 96P 2A MALE STR SLDR DIN-SIGNAL R096MS-4,0C1-2 96 way DIN41612 R type plug,4mm solder BackPlaneConnector;96;Male;Solder Harting 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Standard Package

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Standards	IEC60603-2

Electrical

Current Rating (Max)

Mechanical

Depth	11.1 mm	Pitch	0.100" (2.54mm)
Height	11.6 mm	Packaging	Bulk
Shell Size	R	Orientation	直
Termination	Solder	Length - Pin	4mm
Mounting Type	Straight	Angle of Throw	Straight
Connector Type	Header, Male Pins	Contact Finish	Gold Over Nickel
Mounting Style	Through Hole	Number of Pins	96
Number of Rows	3	Length - Overall	95 mm
Primary Material	Industrial	Termination Rows	焊接
Pin Hole Diameter	2.54mm	Number of Contacts	96
Number of Positions	96	Mounting Hole Diameter	2.8mm
Contact Finish Thickness	Flash

Product Info

Type	DIN 41612	Style	R
Gender	M	Features	Backplane
CAD Drawing	3D CAD Model	Outlet Types and Quantity	A/b/c
Number of Positions Loaded	All

Environmental

Ratings

Level, Class
