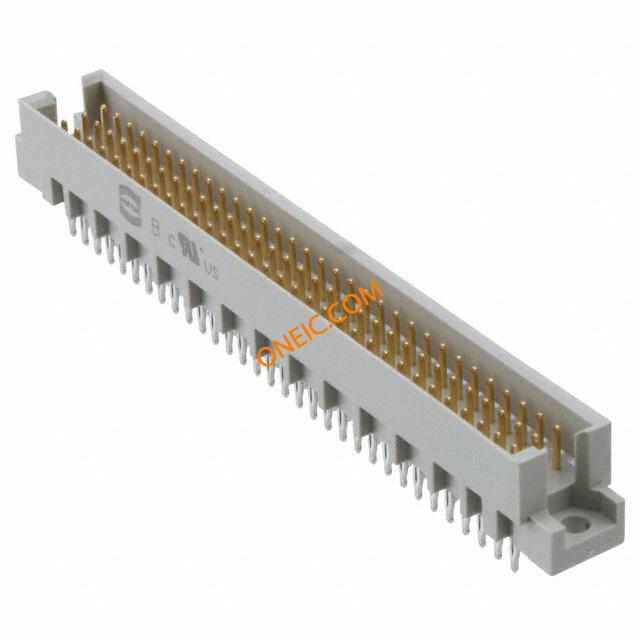

09731966904

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 M 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P 2A MALE STRAIGHT DIN-SIGNAL R096MP-5,0C1-2 PCB DIN connector Type R 96-pin M PCBCONNECTOR96-PINM Harting 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 按式端接
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Part # Aliases	09 09-73-196-6904 196 6904 73	Product Category	DIN 41612 Connectors
Standard Package	1	Factory Pack Quantity	20

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Contact Resistance

15mΩ

Current Rating (Max)

Mechanical

Depth	11.1	Pitch	0.100" (2.54mm)
Height	11.6	Packaging	Bulk
Orientation	直	Termination	Press Fit
Length - Tail	5 mm	Mounting Type	Through Hole
Connector Type	Header, Male Pins	Contact Finish	Gold Over Nickel
Number of Rows	3	Contact Material	Copper Alloy
Housing Material	Thermoplastic	Length - Overall	95
Termination Rows	按式	Termination Style	Press Fit
Number of Contacts	96	Number of Positions	96
Contact Finish Thickness	Flash

Product Info

Type	DIN 41612	Style	R
Gender	M	CAD Drawing	3D CAD Model
Outlet Types and Quantity	A/b/c	Number of Positions Loaded	All

Environmental

Ratings	C2	Level, Class	2
Operating Temperature	+105°C
