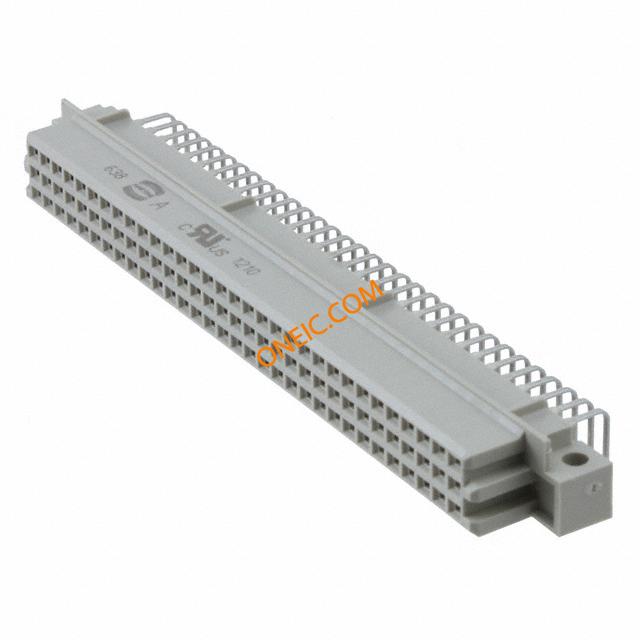

09732966801
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P 2A FEMALE R/A DIN-SIGNAL R096FS-3,0C1-2 96 way DIN41612 R type skt,r/a terminal Connector,DIN;PrintedBoard;2A;Female;96;AngledSolderPin;1.2mm Harting 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 09 09-73-296-6801 296 6801 73 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Height | 10.5 |
| Length | 3.0mm(Termination) | Packaging | Bulk |
| Shell Size | R | Orientation | 直角 |
| Termination | Solder | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Number of Pins | 96 |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94mm |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Pin Hole Diameter | 2.54mm | Termination Style | Solder Pin |
| Number of Contacts | 96 | Number of Positions | 96 |
| Mounting Hole Diameter | 2.8mm | ||
Product Info
| Type | DIN 41612 | Style | R |
| Gender | F | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Distance | 1.2mm |
| Level, Class | 2 | ||
