点击放大查看
09031966921
| Manufacturer | |
| Description | Conn Shrouded Header M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P 2A MALE R/A SLDR DIN-SIGNAL C096MS-3,0C1-2 96 way 3 row DIN41612 plug,r/a terminals BackPlaneConnector;96;Male;87.5mm Socket; DIN 41612,type C; male; PIN:96; a+b+c; THT; angled 90° Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-196-6921 196 6921 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 17.72 mm | Pitch | 0.100" (2.54mm) |
| Height | 11 mm | Length | 87.5mm |
| Weight | 0.02 kg | Packaging | Bulk |
| Shell Size | C | Orientation | angled 90° |
| Termination | Solder | Lead Spacing | len. 3mm |
| Length - Pin | 3mm | Length - Tail | 3 mm |
| Mounting Type | Right Angle | Angle of Throw | Right |
| Connector Type | Header, Male Pins | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 mm | Package Quantity | 4 |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Connector - Cable | socket | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 96 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+b+c | ||
Product Info
| Spg | 4 | Type | Shrouded Header |
| Style | C | Gender | M |
| Features | Backplane | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
Similar Parts

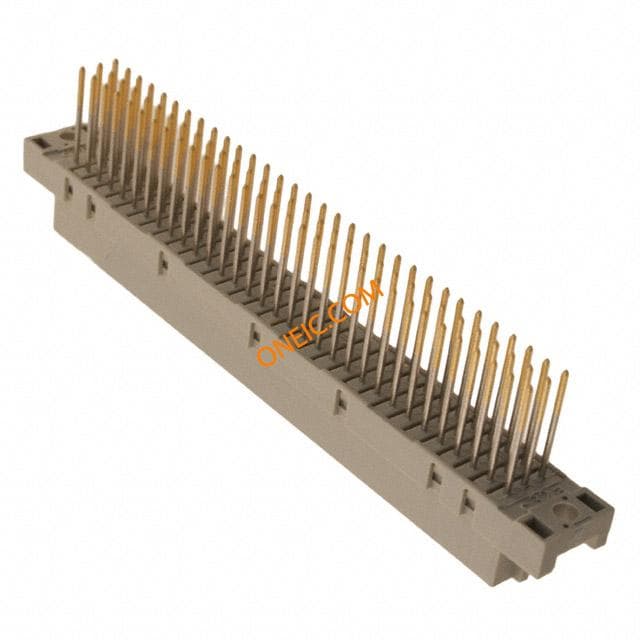

09032966878
HARTING
DIN 41612 Connectors DIN-SIGNAL C096FW-13,0C1-2 DIN-SIGNAL C096FW-13,0C1-2 Connector DIN-Signal wrap-post 96-way f ConnectorDIN-Signalwrap-post96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 绕线端接

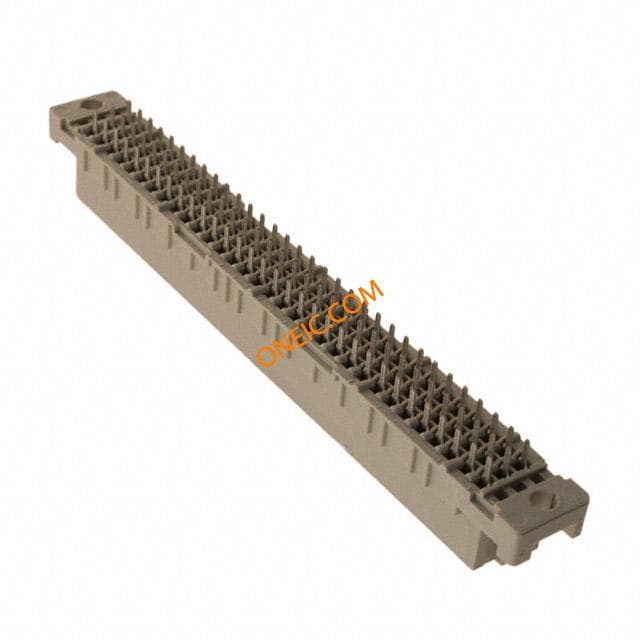

09032962824
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL 96P TYP C STRAIGHT SOLDER PIN DIN-SIGNAL C096FS-2,9C1-1

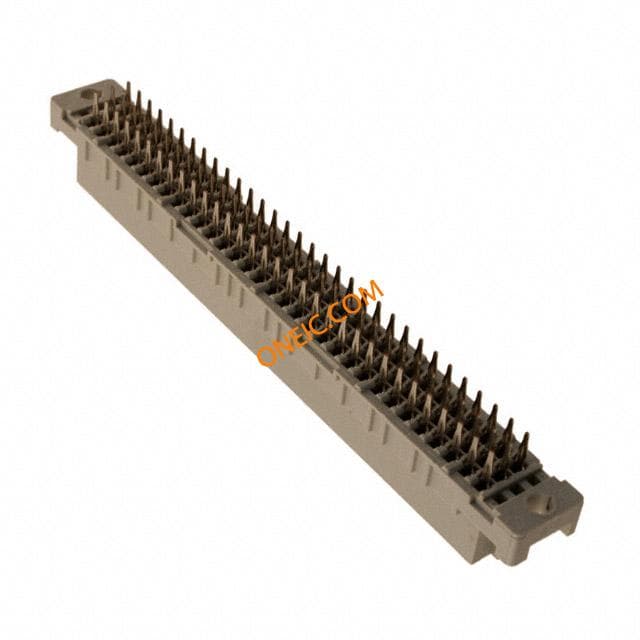

09032966850
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P 2A FEMALE STRT DIN-SIGNAL C096FP-4,5C1-2 PCB DIN connector Type C 96-pin F GdsA-CSeries,StraightSolder,Female,96Contacts,2Amps Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接
09032966845
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL C096FS-4,5C1-2-KP DIN-SIGNAL C096FS-4,5C1-2-KP 96 way 3 row DIN41612 kinked pin socket DIN4161296WSKT4.5MM Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032966861
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P FEMALE STD 2A DIN-SIGNAL C096FPW-13,2C1-2 Connector DIN-Signal press-in 96-way f ConnectorDIN-Signalpress-in96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接

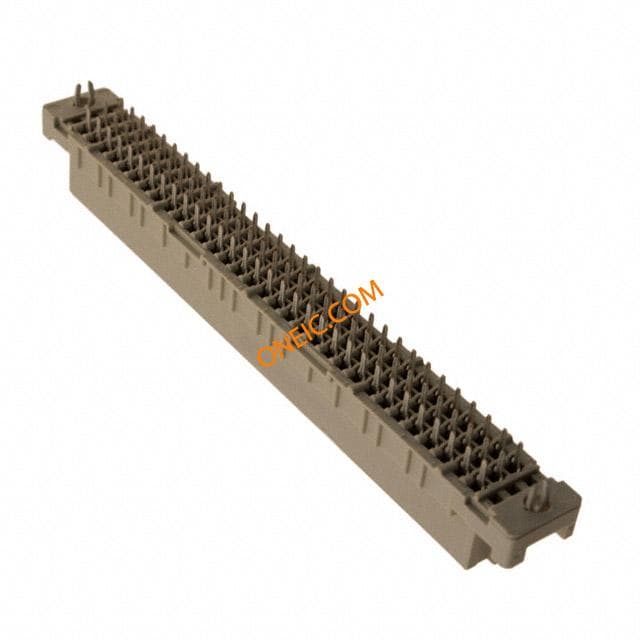

09034966824
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL C096FS-2,9C1-2CLIP DIN-SIGNAL C096FS-2,9C1-2-CLIP

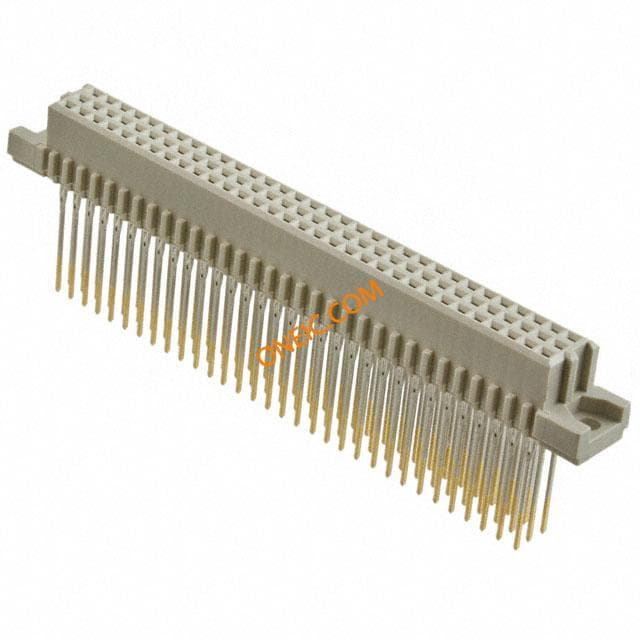

09032966862
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96 POS FEMALE DIN-SIGNAL C096FPW-17,0C1-2 Connector DIN-Signal press-in 96-way f ConnectorDIN-Signalpress-in96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接

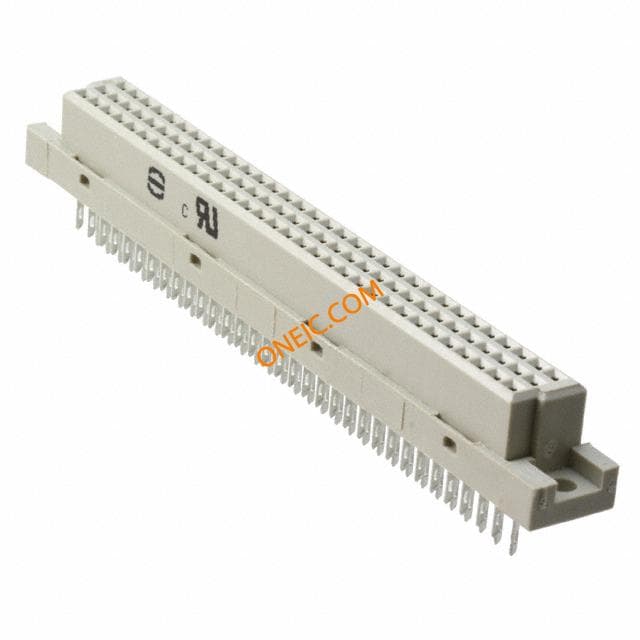

09032966823
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Solder Lug ST Panel Mount DIN 41612 Connectors 96P TYPE C FEMALE CLOSED SLDR LUG DIN-SIGNAL C096FL-7,7C1-2 Connector DIN-Signal solder 96-way f ConnectorDIN-Signalsolder96-wayf Plug; DIN 41612,type C; female; PIN:96; a+b+c; soldering; straight Plug; DIN 41612; type C; female; PIN:96; a+b+c; soldering; straight Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032962850
Harting Technology Group
Conn DIN 41612 SKT 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors DINSIGC096FP-4,5C1-1 DIN-SIGNAL C096FP-4,5C1-1
09032966852
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL C096FP-17,0C1-2 DIN-SIGNAL C096FP-17,0C1-2 Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级 a/b/c 直向 DIN 41612 插座, 按式端接

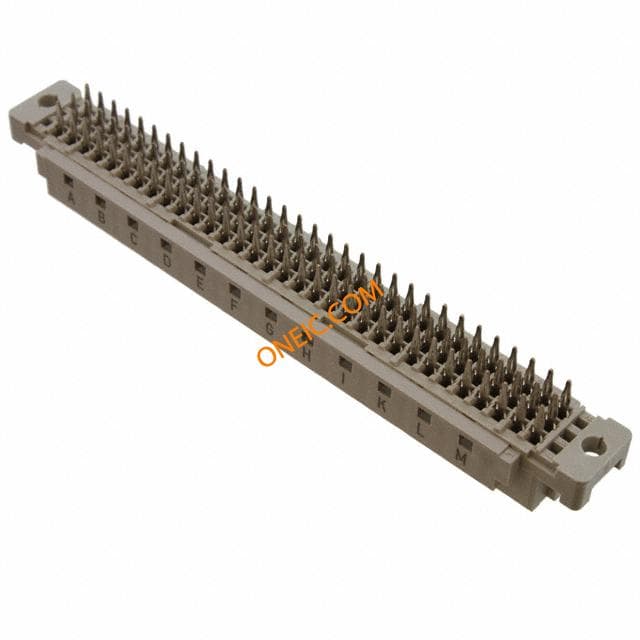

09037966850
Harting Technology Group
Conn Backplane F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P FEMALE W/FLANGE DIN-SIGNAL C096FP-4,5C1-2-COD Connector DIN-Signal solder 96-way f HAR-BUS C FEMALE CONNECTOR WITH CODING PRESS-IN 45 96 POL. ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接

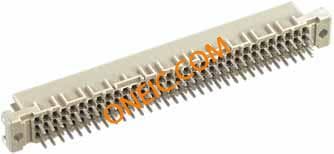

09032966824
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 96P TYPE C FEMALE STD NO FIXING DIN-SIGNAL C096FS-2,9C1-2 Connector DIN-Signal solder 96-way f Connector; Din 41612; Female; 96 Contacts; Straight; Solder Pin Connector,Din41612,Female,96Contacts,Straight,SolderPin Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032966851
Harting Technology Group
Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P TYPE C FEMALE STRT PRESS IN TERM DIN-SIGNAL C096FP-13,2C1-2 Connector DIN-Signal press-in 96-way f ConnectorDIN-Signalpress-in96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接

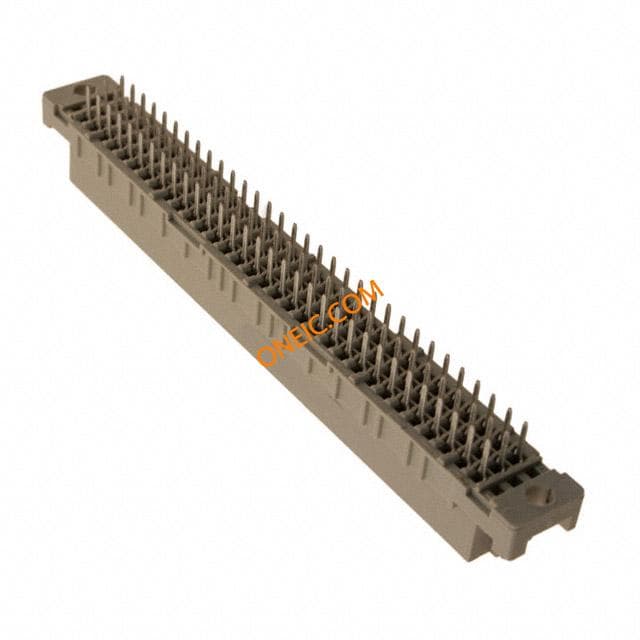

09032966825
Harting
DIN-SIGNAL C096FS-4,5C1-2 DIN 41612 Connectors 96P 2A FEMALE STRT 96 way 3 row DIN41612 socket,4mm Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole GdsA-CSeries,StraightSolderPins-.125PCB(.275Long),Female,96Contact Plug; DIN 41612,type C; female; PIN:96; a+b+c; THT; straight; 2A Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

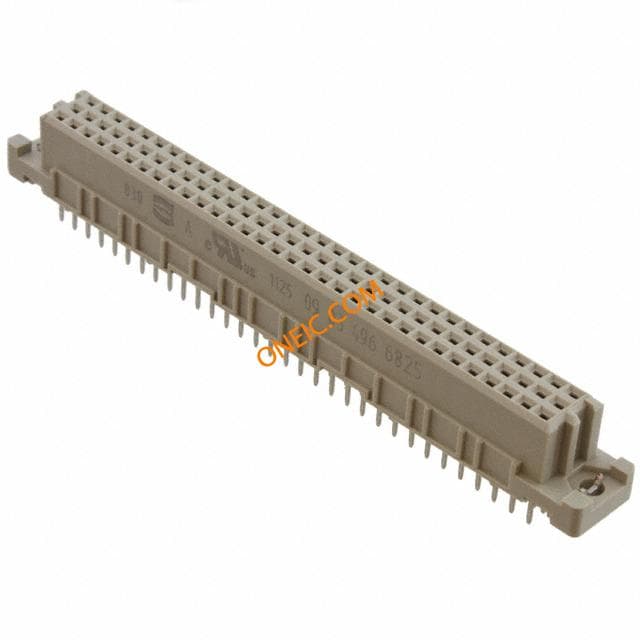

09034966825
Harting
DIN-SIGNAL C096FS-4,5C1-2-CLIP DIN 41612 Connectors 96P TYPE C FEMALE 3 ROW SNP IN CLIPS Connector DIN-Signal solder 96-way f Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

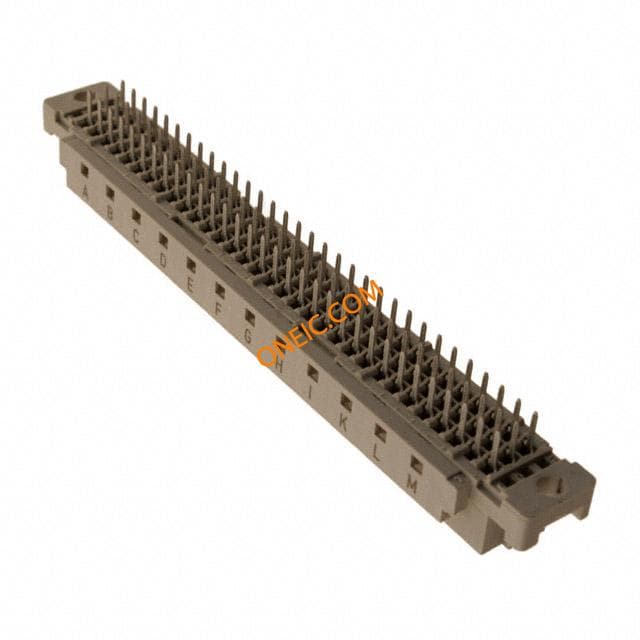

09037966825
Harting
DIN-SIGNAL C096FS-4,5C1-2-COD DIN 41612 Connectors 96P FML STRT TYPE C Connector DIN-Signal solder 96-way f ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032967825
Harting
DIN-SIGNAL C096FS-4,5C1-3 DIN 41612 Connectors 96P FML STRT TYPE C SLDR WO BRD FIXING 96 way 3 row DIN41612 socket,4mm Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole Plug; DIN 41612,type C; female; PIN:96; a+b+c; THT; straight; 2A Harting 96 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032966855
Harting
DIN-SIGNAL C096FS-2,9C1-2-KP DIN 41612 Connectors DIN SIG C096FS-2 9C1-2-KP Connector DIN-Signal solder 96-way f ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032967824
Harting
DIN-SIGNAL C096FS-2,9C1-3 DIN 41612 Connectors DIN-SIGNAL C096FS-2,9C1-3 Connector DIN-Signal solder 96-way f Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

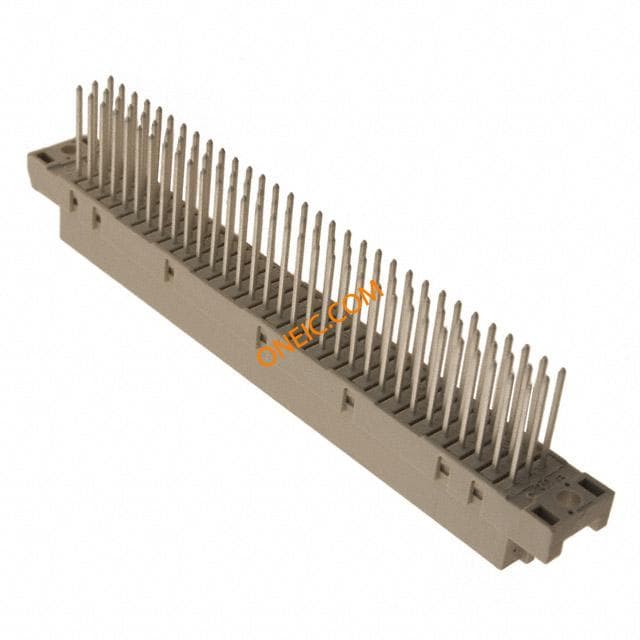

09032966421
