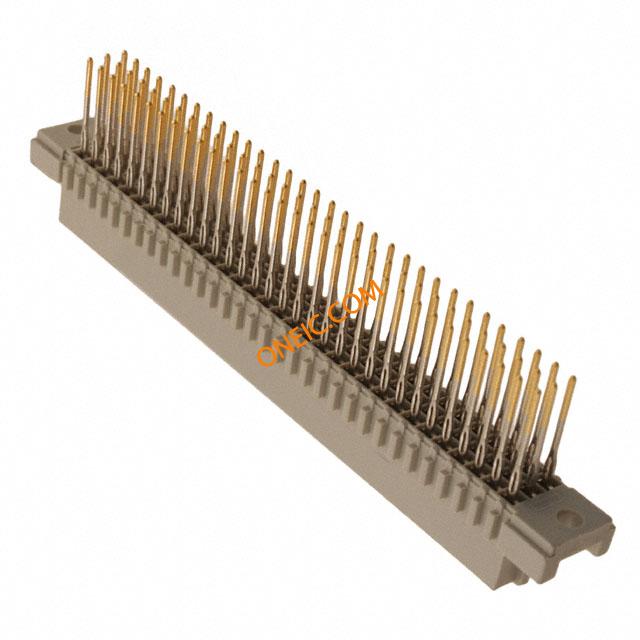

09032966861
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P FEMALE STD 2A DIN-SIGNAL C096FPW-13,2C1-2 Connector DIN-Signal press-in 96-way f ConnectorDIN-Signalpress-in96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-296-6861 296 6861 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Depth | 10.6 mm | Pitch | 0.100" (2.54mm) |
| Height | 11.6 mm | Packaging | Bulk |
| Orientation | 直 | Termination | Press Fit |
| Weight (g): | 18.00000 | Length - Tail | 13.2 mm |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 95 mm |
| Termination Rows | a/b/c | Termination Style | Press Fit |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | C |
| Gender | F | Series | 09 03 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +105°C | ||
Similar Parts

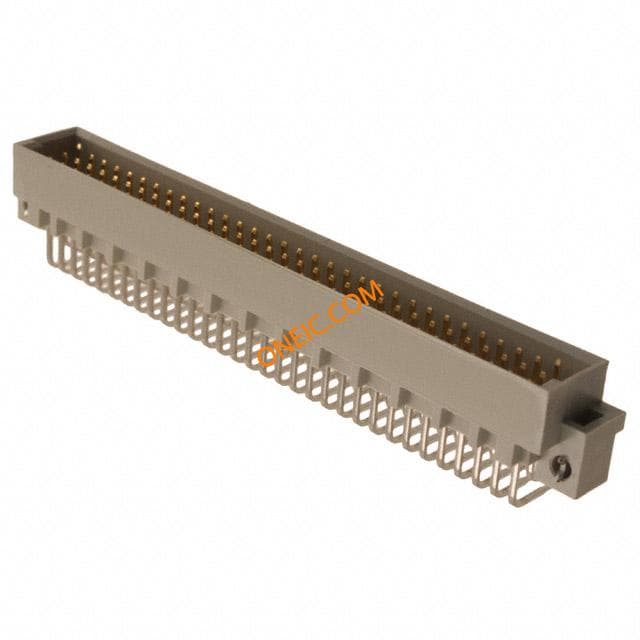

09033966951
HARTING
DIN 41612 Connectors DIN-SIGNAL C096MS 3,0C1-2-V2CLIP DIN-SIGNAL C096MS-3,0C1-2-V2
09031962921
Harting Technology Group
Conn Shrouded Header M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P TYPE C MALE STD 2.54MM PITCH DIN-SIGNAL C096MS-3,0C1-1 96 way 3 row DIN41612 plug,r/a terminals Connector,PrintedBoard;96;2A;2.54mm(Row);Male;AngledSolderPin Harting 96 路 2.54mm 节距, C型 C1等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接

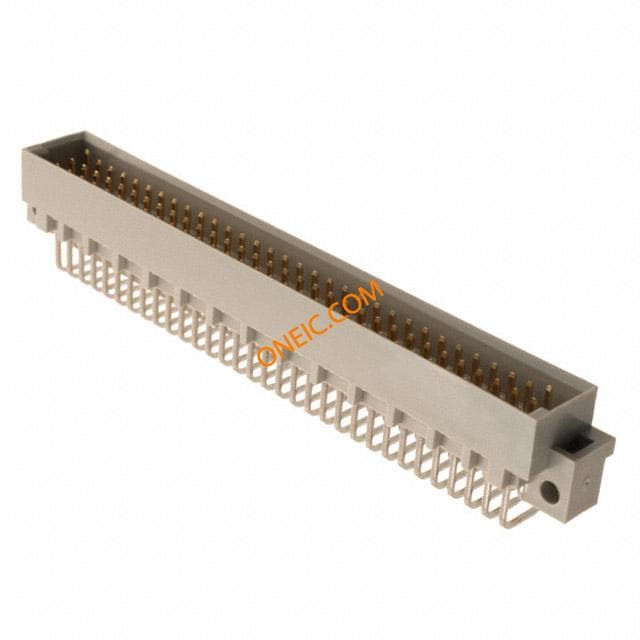

09031966951
Harting Technology Group
Conn Shrouded Header HDR 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P TYPE C MALE STD 2.54MM PITCH DIN-SIGNAL C096MS-3,0C1-2-V2 96 way 3 row DIN41612 plug w/ lead pin 96WAYPLUGLEADINGPIN Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接

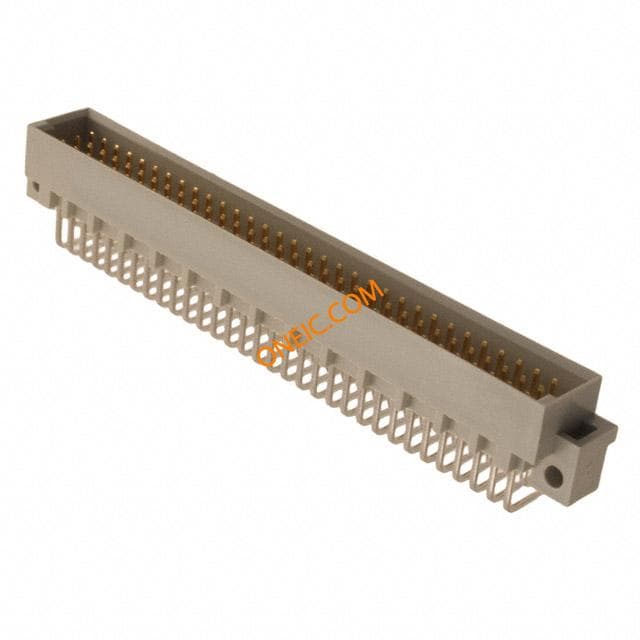

09031966921
Harting Technology Group
Conn Shrouded Header M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P 2A MALE R/A SLDR DIN-SIGNAL C096MS-3,0C1-2 96 way 3 row DIN41612 plug,r/a terminals BackPlaneConnector;96;Male;87.5mm Socket; DIN 41612,type C; male; PIN:96; a+b+c; THT; angled 90° Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接
09031967921
Harting Technology Group
Conn Shrouded Header M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P MALE RA TYPE C 2.54MM STANDARD DIN-SIGNAL C096MS-3,0C1-3. 96 way 3 row DIN41612 plug,r/a terminals DIN-SignalC096MS-3,0C1-3 Socket; DIN 41612,type C; male; PIN:96; a+b+c; THT; angled 90° Harting 96 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接
09036966921
Harting Technology Group
Conn Shrouded Header HDR 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P MALE RA TYPE C DIN-SIGNAL C096MS-3,0C1-2-COD

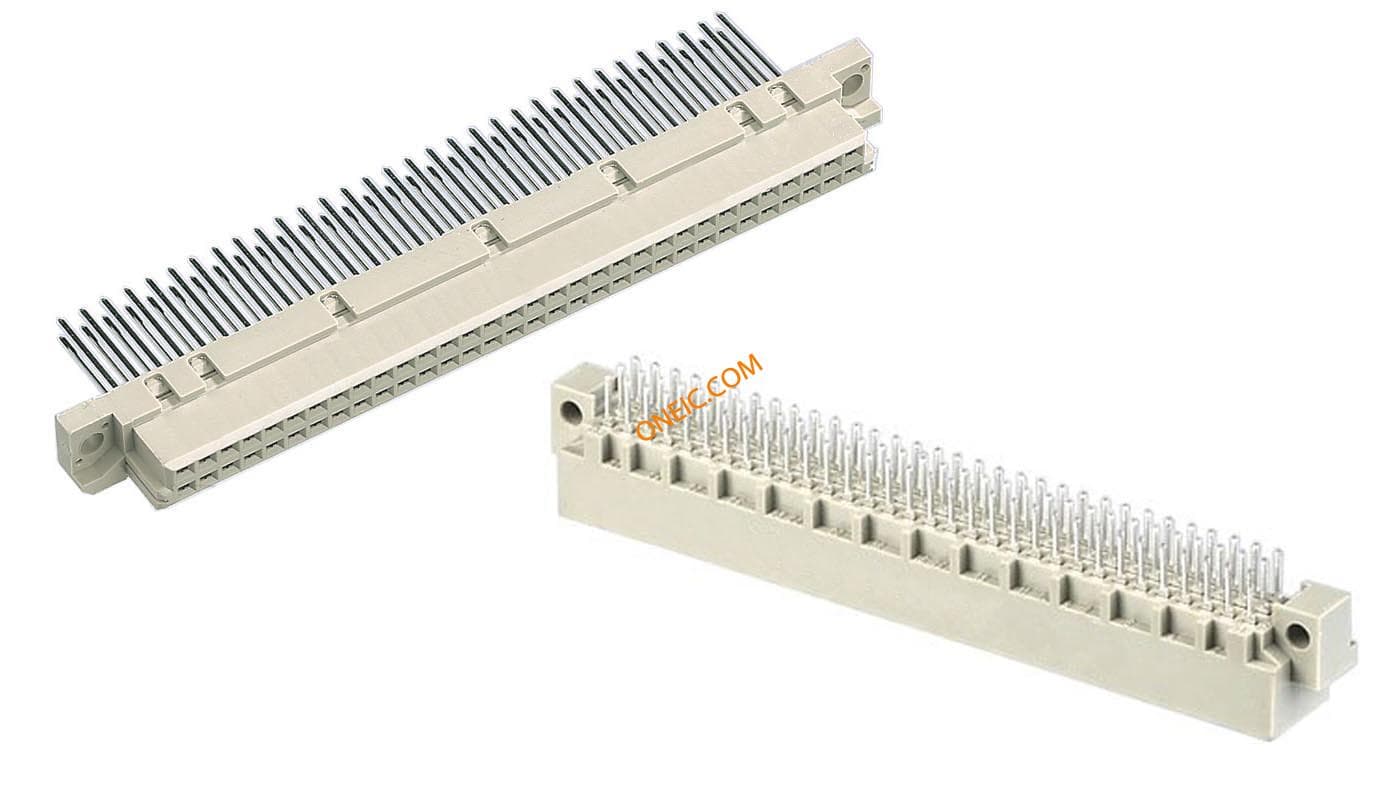

09033966919
Harting Technology Group
Conn Shrouded Header HDR 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors C096MR-3,0C1-2-CLIP DIN SIGNAL DIN-SIGNAL C096MR-3,0C1-2-CLIP 96 way type C DIN41612 male connector DINConnector;96;2A(Max.);2.54mm(Row);Male;SMC;3mm;RoHSCompliant Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接

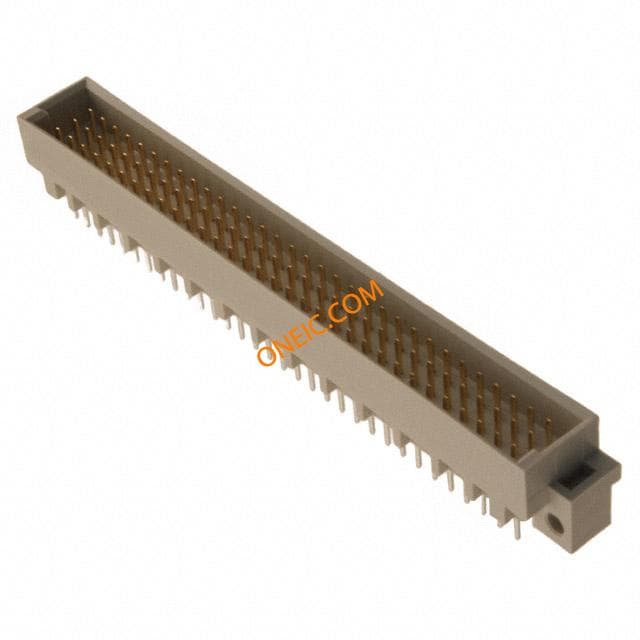

09031966922
Harting Technology Group
Conn Shrouded Header HDR 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 96P 2A MALE STR SLDR DIN-SIGNAL C096MS-3,0C1-2 Connector DIN-Signal solder 96-way m Connector; DIN; 2 A; Male; 96; Straight Solder Pin; 3.0 mm (Termination) Connector,DIN;2A;Male;96;StraightSolderPin;3.0mm(Termination) Socket; DIN 41612,type C; male; PIN:96; a+b+c; THT; straight; 2A Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接

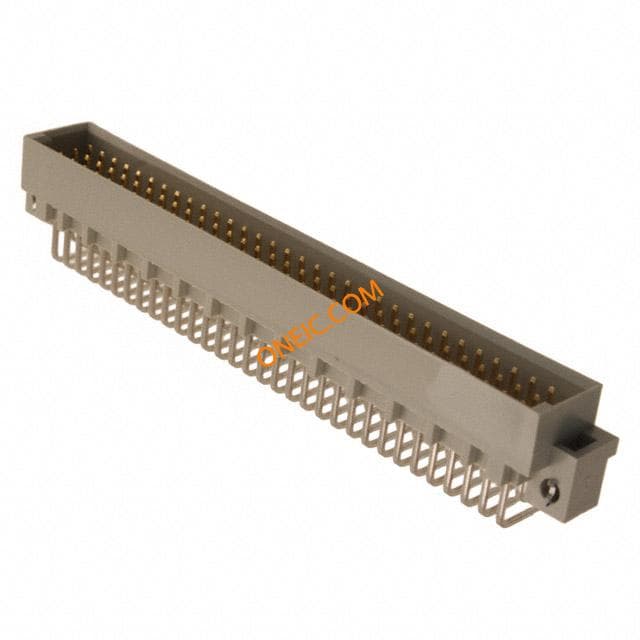

09033966921
Harting
DIN-SIGNAL C096MS-3,0C1-2-CLIP DIN 41612 Connectors 96P MALE LEVEL 2 96 way 3 row DIN41612 board lock plug 96WAYPLUG(B/LOCKS) Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接

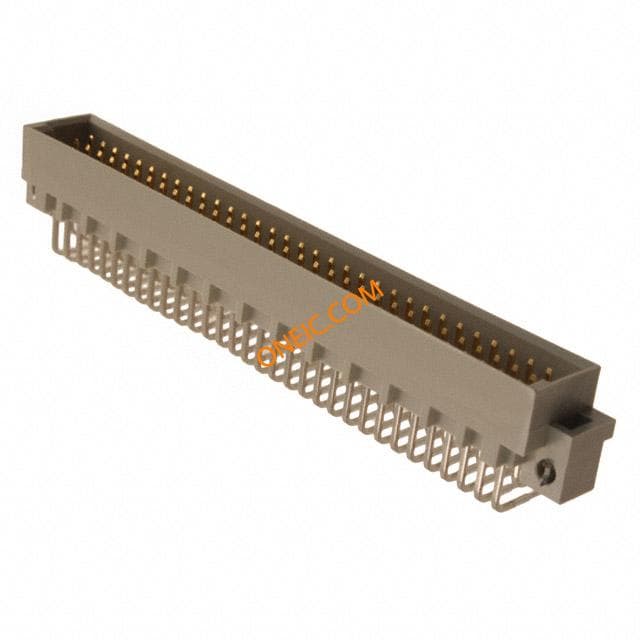

09033967921
