点击放大查看

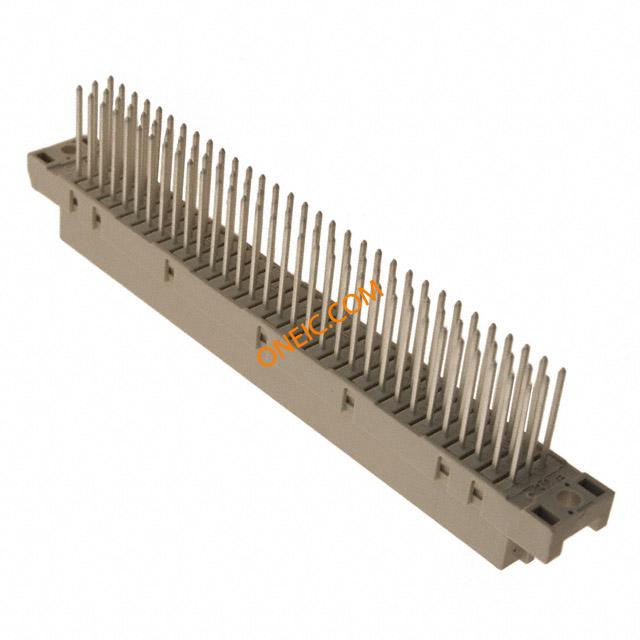

09032966421
| Manufacturer | |
| Description | DIN-SIGNAL C096FS-13,0C1-2 High Speed / Modular Connectors Type C 96P Fem With Contacts Connector Type C wrap-post 96-way f ConnectorTypeCwrap-post96-wayf Plug; DIN 41612,type C; female; PIN:96; a+b+c; straight; 2A
sale Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-296-6421 296 6421 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Pitch | 0.100" (2.54mm) | Weight | 0.02 kg |
| Packaging | Bulk | Orientation | straight |
| Termination | Solder | Lead Spacing | len. 13mm |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Package Quantity | 20 |
| Termination Rows | a/b/c | Connector - Cable | plug |
| Termination Style | Solder | Number of Contacts | 96 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Contact Material - Plating | gold plated | 1st Connector Mounting Feature | a+b+c |
Product Info
| Spg | 20 | Type | C |
| Style | C | Gender | Female |
| Series | 09 03 | Class Code | C2 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Number of Units | 1 | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | +125°C |
