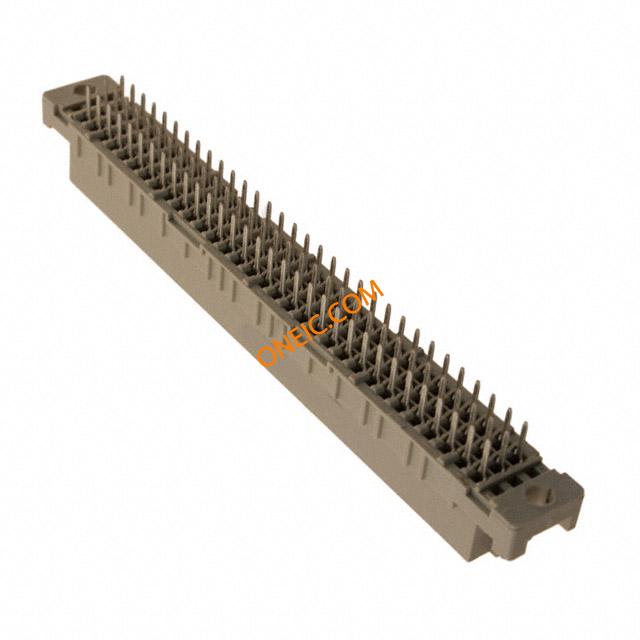

09032966825
| Manufacturer | |
| Description | DIN-SIGNAL C096FS-4,5C1-2 DIN 41612 Connectors 96P 2A FEMALE STRT 96 way 3 row DIN41612 socket,4mm Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole GdsA-CSeries,StraightSolderPins-.125PCB(.275Long),Female,96Contact Plug; DIN 41612,type C; female; PIN:96; a+b+c; THT; straight; 2A Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-296-6825 296 6825 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | Standards | IEC60603-2 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.5 mm | Pitch | 0.100" (2.54mm) |
| Height | 11.6 mm | Weight | 0.02 kg |
| Packaging | Bulk | Shell Size | C |
| Orientation | straight | Termination | Solder |
| Weight (g): | 14.00000 | Lead Spacing | len. 4.5mm |
| Length - Pin | 4.5mm | Length - Tail | 4.5 mm |
| Mounting Type | Through Hole | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold over Nickel |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 mm | Package Quantity | 31 |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Connector - Cable | plug | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 96 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+b+c | ||
Product Info
| Spg | 31 | Type | C |
| Style | C | Gender | Female |
| Features | Backplane | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
