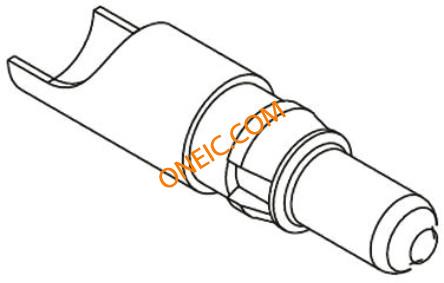

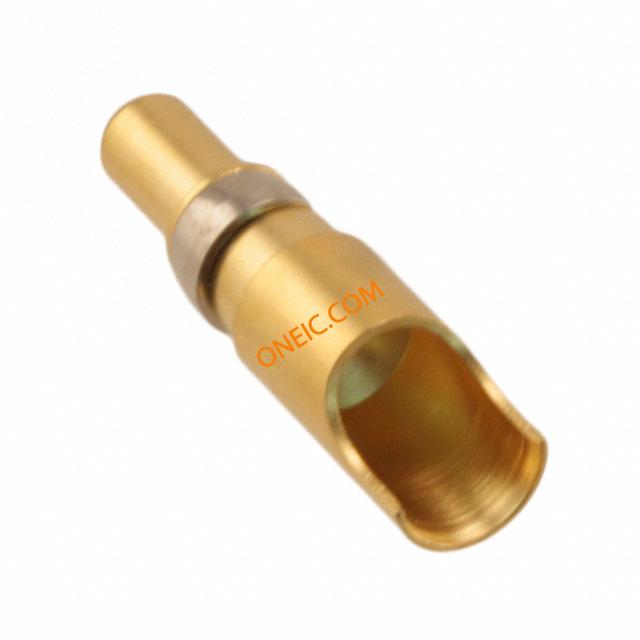

09030006103
| Manufacturer | |
| Description | Contact PIN Solder Cup ST Cable Mount DIN 41612 Connectors MALE CONTACTS SOLDER DIN-SIGNAL HI CURRENT M 40A SLD DIN-Signal high current contact solder m DINTypeM40Amphighcurrentcontact,soldercup(Male) Harting 09 03 系列 公 铜合金触点, 直 DIN 连接器触点 |
| Category |
Business
| Part # Aliases | 000 03 09 09-03-000-6103 6103 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 40 A |
Mechanical
| Packaging | Bulk | Shield Type | No |
| Termination | Solder Cup | Weight (g): | 2.80000 |
| Contact Type | Power | Mounting Type | Cable Mount |
| Pin or Socket | Pin | Connector Type | Connector Power |
| Contact Material | Copper Alloy | Length - Overall | 22.4 |
| Termination Style | Solder | Contact Termination | Solder Cup |
Product Info
| Type | Power | Gender | PIN |
| Series | 09 03 | Direction | 直 |
| Product Type | Contacts | For Use With/Related Products | DIN41612 Type M Male Connector |
Environmental
| Operating Temperature | +125°C | ||
