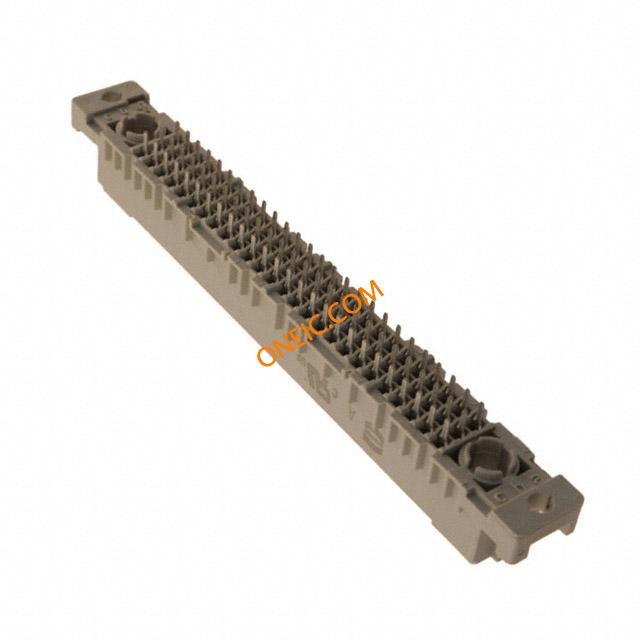

| Description | DIN-SIGNAL M78+2FS-2,9C1-2 DIN 41612 Connectors DIN-SIGNAL M78+2FS-2,9C1-2 PCB DIN connector Type M 78 + 2 F PCBDINconnectorTypeM78+2F Harting 78 + 2 路, M型 C2等级 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-278-6804 278 6804 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Rows | 焊接 | Number of Contacts | 80 |
| Number of Positions | 80 (78 + 2 Coax, Fiber Optic or Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | M | Style | M |
| Gender | Female | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | 78 |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
Similar Parts
09030006250
HARTING

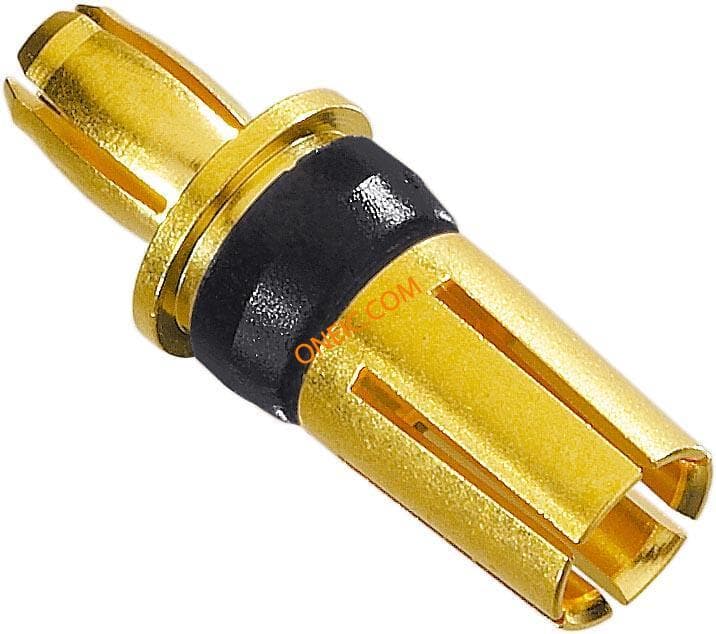

DIN 41612 Connectors DIN-SIGNAL HI CURRNT FEM 40A PRESS-IN Contact SKT ST Cable Mount DIN-SGNL M-FLAT F 40A PRESS-IN Contact F ST Cable Mount
09030006262
Harting Technology Group

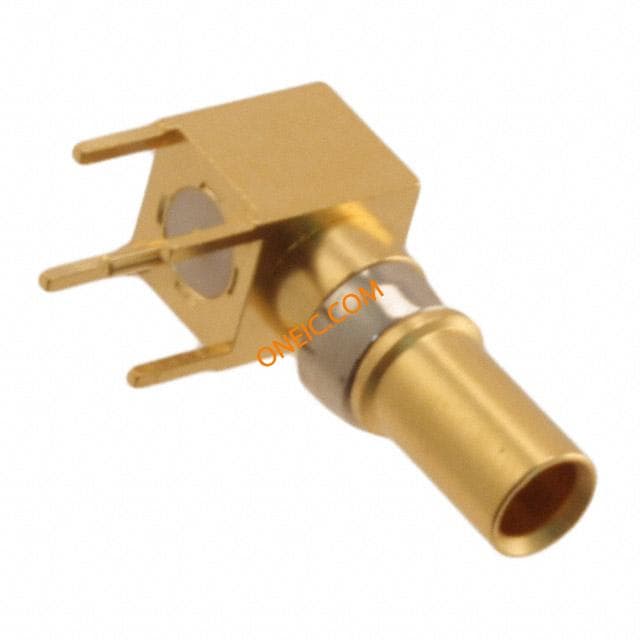

Contact SKT Solder RA Thru-Hole DIN 41612 Connectors 2A COAXIAL CONTACTS FEM CON FOR MALE PCB DIN-SGNL COAX F PCB-SOLDER 50OHM DIN-Signal coax contact female Conn Contact F 1 POS Solder RA Thru-Hole DINTypeM50Ohmcoaxialcontactformaleconnectors,RightAnglesolderpins Harting 09 03 系列 母 铜合金触点, 直角 DIN 连接器触点
09030006225
Harting Technology Group

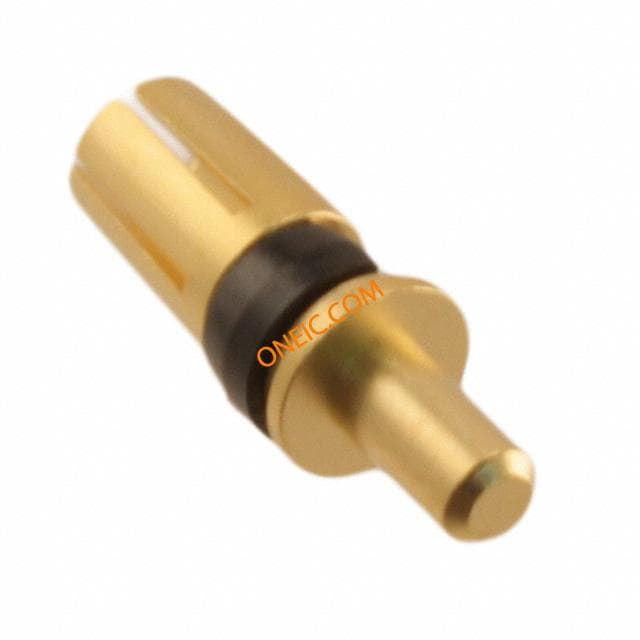

Contact SKT Solder ST Cable Mount DIN 41612 Connectors Other DIN signal DIN-SGNL HI CURR FS 40A
