LTC3855EFE#PBF
| Manufacturer | |
| Description | DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP IC REG CTRLR BUCK PWM CM 38TSSOP DC-DC converter; step down; Uin:4.5÷38V; Uout:0.6÷12.5V; 240A |
| Category |
Business
| Standard Package | 50 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode | Duty Cycle | 95% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 4.5 to 38 V |
| Boost Converter | No | Frequency - Max | 850kHz |
| Current - Output | 25/25 A | Voltage - Supply | 4.5 V ~ 38 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 2 | Divider/Multiplier | No |
| Inverting Converter | No | Frequency - Switching | 850 |
| Common Mode Transient Immunity (Min) | Extended | ||
Mechanical
| Weight | 0.43 g | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Package Cooled | TSSOP EP |
| Package Quantity | TSSOP EP | Number of Positions | 38 |
Product Info
| Spg | 49 | Type | Synchronous Buck Controller |
| Number of Units | 1 | Utilized IC / Part | step down |
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
Similar Parts
7443551131
Wurth Electronics

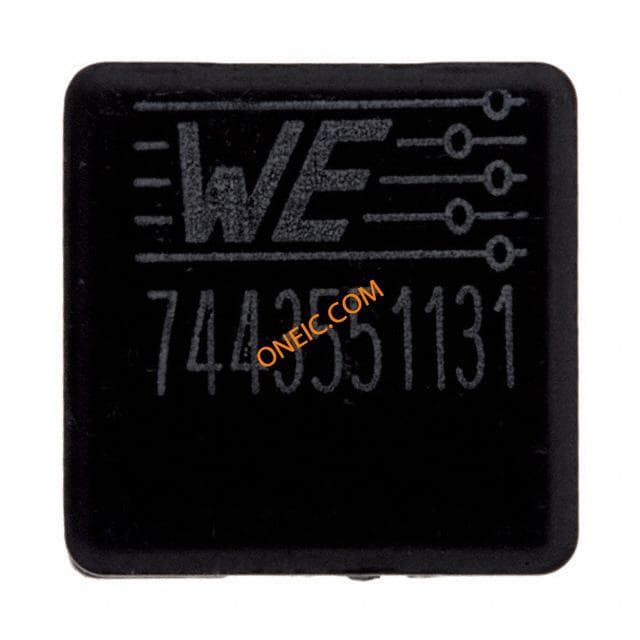

固定インダクタ WE-HCI Inductor 13uH 100kHz 10A INDUCTOR POWER 13UH 10A SMD Fixed Inductors WE-HCI Inductor 13uH 100kHz 10A HCI INDUCTOR, 13UH, 11,20MOHM, 9A
IHLP5050FDER4R7M01
vishay / dale

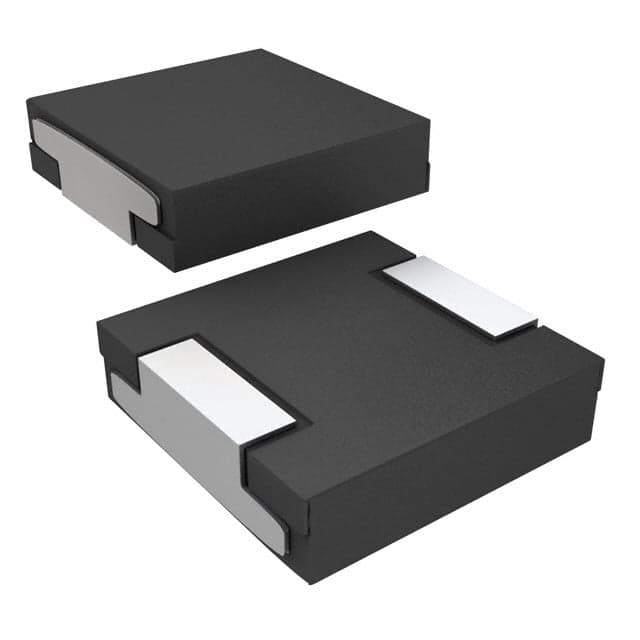

Ind High Current Shielded Wirewound 4.7uH 20% 100KHz 13.5A 5050 T/R Inductor High Current Shielded Wirewound 4.7uH 20% 100KHz 13.5A 8.7mOhm DCR 5050 T/R INDUCTOR POWER 4.7UH 13.5A SMD Inductor IHLP SMD 5050 4.7uH Fixed Inductors 4.7uH 20% INDUCTOR, 4.7UH, 30A, 20% Ind Highcur, Shield, 4.7uH, 20%, 100Khz, 5050 , TR Vishay IHLP5050FD-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 4.7 μH ±20%, 13.5A Idc
7443551370
Wurth Electronics
固定インダクタ WE-HCI Inductor 3.7uH 100kHz 17A Ind Power Choke Shielded Wirewound 3.7uH 20% 100KHz 17A T/R INDUCTOR POWER 3.7UH 17A SMD Inductor SMD high current WE-HCI 3.7uH Fixed Inductors WE-HCI Inductor 3.7uH 100kHz 17A INDUCTOR, SMD, HIGH CURRENT 2.6UH Wurth WE-HCI 系列 屏蔽 WE-Perm芯材 绕线贴片电感器, 3.7 μH ±20%, 17A Idc
744311220
Wurth Electronics
固定インダクタ WE-HCI Inductor 2.2uH 100kHz 9A Ind Power Choke Shielded Wirewound 2.2uH 20% 100KHz 9A T/R INDUCTOR POWER 2.2UH 9A SMD Inductor SMD high current WE-HCI 2.2uH Fixed Inductors WE-HCI Inductor 2.2uH 100kHz 9A INDUCTOR, SMD, HIGH CURRENT 2.2UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 2.2 μH ±20%, 9A Idc
LTC3855EFE#PBF
Analog Devices, Inc.
DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP IC REG CTRLR BUCK PWM CM 38TSSOP DC-DC converter; step down; Uin:4.5÷38V; Uout:0.6÷12.5V; 240A
SI4816BDY-T1-GE3
Vishay Intertechnology, Inc.
Trans MOSFET N-CH 30V 5.8A/8.2A 8-Pin SOIC N T/R MOSFET DL N-CH 30V 6.8A 8-SOIC MOSFET, NN CH, 30V, 8SOIC MOSFET Dua lN-Ch w/Schottky 30V 18.5/11.5mohm
LTC3860EUH#PBF
Analog Devices, Inc.
Voltage Mode PWM Controller 0.6V to 5V 240A 32-Pin QFN EP IC REG CTRLR BUCK PWM VM 32-QFN IC, BUCK, SYNC, ADJ, DUAL, 32QFN DC-DC converter; step down; Uin:3÷24V; QFN32
RE933-08
Roth Elektronik
RE933-08, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 28.5 x 23.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-38, 0.50MM Board: universal; multiadapter; W:58.9mm; L:120.1mm; TSSOP38 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP38 Adapter, RE933-08, Roth Elektronik
RE933
Roth Elektronik
TSSOP - SMD multi-adapter,120.10x58.90mm MULITADAPTOR, SMD, FR4, TSSOP PCB,RE933 Board: universal; multiadapter; W:58.9mm; L:120.1mm Laboratory card FR4 Epoxide + chem. Ni/Au Multiadapter TSSOP, RE933, Roth Elektronik
3209885-M
MULTICORE (SOLDER)
SOLDER PASTE, 95.5/3.5/0.7, 217DEG, 500G
D00840
Avnet, Inc.
TWEEZERS SET, ESD SAFE, 6PC
IRFH5302DTR2PBF
Infineon Technologies Americas Corp.

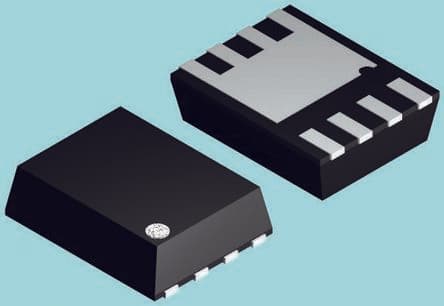

MOSFET N-CH 30V 29A 8VQFN Infineon HEXFET 系列 N沟道 MOSFET 晶体管 , 29 A, Vds=30 V, 8针 PQFN封装
