LTC3860EUH#PBF
| Manufacturer | |
| Description | Voltage Mode PWM Controller 0.6V to 5V 240A 32-Pin QFN EP IC REG CTRLR BUCK PWM VM 32-QFN IC, BUCK, SYNC, ADJ, DUAL, 32QFN DC-DC converter; step down; Uin:3÷24V; QFN32 |
| Category |
Business
| Other Names | LTC3860EUHPBF | Standard Package | 73 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| PWM Type | Voltage Mode | Duty Cycle | 91.5% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | :5V |
| Boost Converter | No | Frequency - Max | 1.25MHz |
| Current - Output | :240mA | Voltage - Supply | 3 V ~ 5 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 2 | Divider/Multiplier | No |
| Inverting Converter | No | Frequency - Switching | 250 to 1250 |
| Synchronous Rectifier | No | Voltage - Input (Min) | :24V |
| Voltage - Supply (Min) | 5.5 | Number of Outputs and Type | 2 |
| Common Mode Transient Immunity (Min) | Extended | ||
Mechanical
| Weight | 0.0002 | Packaging | Tube |
| Lead Style | No Lead | Contact Form | No |
| Mounting Type | SMD | Number of Pins | :32 |
| Package / Case | 32-WFQFN Exposed Pad | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | QFN EP | Number of Positions | 32 |
Product Info
| Spg | 73 | Type | DC-DC converter |
| Topology | Boost|Buck | Base Unit | :3860 |
| Control Method | Voltage Mode PWM Controller | Number of Units | 1 |
| Utilized IC / Part | step down | Output Configuration | No |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
744355147
Wurth Electronics

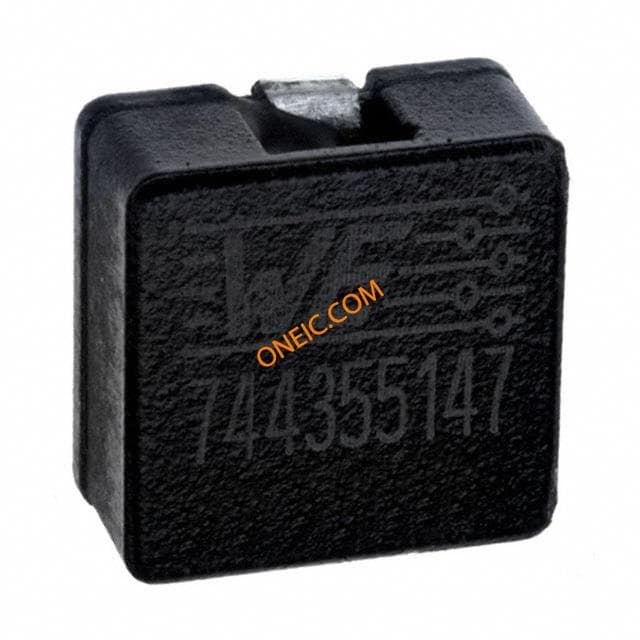

固定インダクタ WE-HCI Inductor 0.47uH 20% 30A INDUCTOR POWER .47UH 30A SMD Inductor SMD high current WE-HCI 0.47uH Fixed Inductors WE-HCI Inductor 0.47uH 20% 30A INDUCTOR, SMD, HIGH CURRENT 0.41UH Wurth WE-HCI 系列 屏蔽 WE-Perm芯材 绕线贴片电感器, 470 nH ±20%, 50A Idc
