744311220
| Manufacturer | |
| Description | 固定インダクタ WE-HCI Inductor 2.2uH 100kHz 9A Ind Power Choke Shielded Wirewound 2.2uH 20% 100KHz 9A T/R INDUCTOR POWER 2.2UH 9A SMD Inductor SMD high current WE-HCI 2.2uH Fixed Inductors WE-HCI Inductor 2.2uH 100kHz 9A INDUCTOR, SMD, HIGH CURRENT 2.2UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 2.2 μH ±20%, 9A Idc |
| Category |
Business
| Product | High Current Inductors | Other Names | 732-1151-2 |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Protection Features | Shielded | ||
Electrical
| Core Type | :Shielded | Tolerance | 20% |
| Inductance | 2.2u | Range deg/s | :WURTH ELEKTRONIK - WE-HCI Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 11.4 mOhm | Current Rating (Max) | 9A |
| DC Resistance (DCR) (Max) | :0.0114ohm | Frequency - Self Resonant | 52MHz |
| Current - Saturation (Isat) | :13A | Current Saturation - Series | 13A |
| Resistance - Initial (Ri) (Min) | 11.4mΩ | Current - On State (It (RMS)) (Max) | :9A |
Mechanical
| Depth | 6.9mm | Width | 6.9 mm |
| Height | 3.8mm | Length | 7mm |
| Weight | 0.0016 | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | WE-Superflux | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | Non Standard |
| Length - Overall | 7.3 | Size / Dimension | 0.272" L x 0.272" W (6.90mm x 6.90mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :7mm x 6.9mm x 3.8mm |
| Height - Seated (Max) | 0.157" (4.00mm) | ||
Product Info
| Type | Power Choke | Series | WE-HCI |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | -40°C ~ 150°C | ||
Documents & Media
Similar Parts
LTC3855EFE#PBF
Analog Devices, Inc.
DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP IC REG CTRLR BUCK PWM CM 38TSSOP DC-DC converter; step down; Uin:4.5÷38V; Uout:0.6÷12.5V; 240A
LTC3878EGN#PBF
Analog Devices, Inc.
DC DC Cntrlr Single-OUT Step Down 4V to 38V Input 16-Pin SSOP N IC REG CTRLR BUCK PWM CM 16-SSOP BUCK, SYNCH, 34.2V, 16SSOP DC-DC converter; step down; Uin:4÷38V; Uout:0.8÷34.2V; 25A

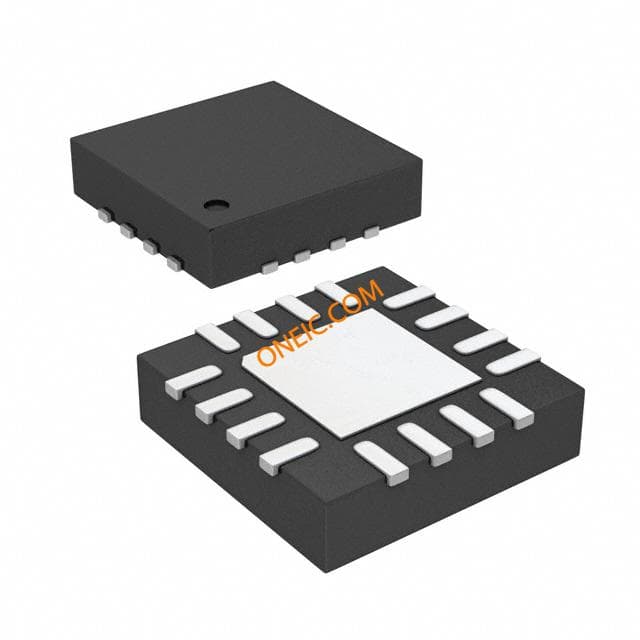

LTC3879EUD#PBF
