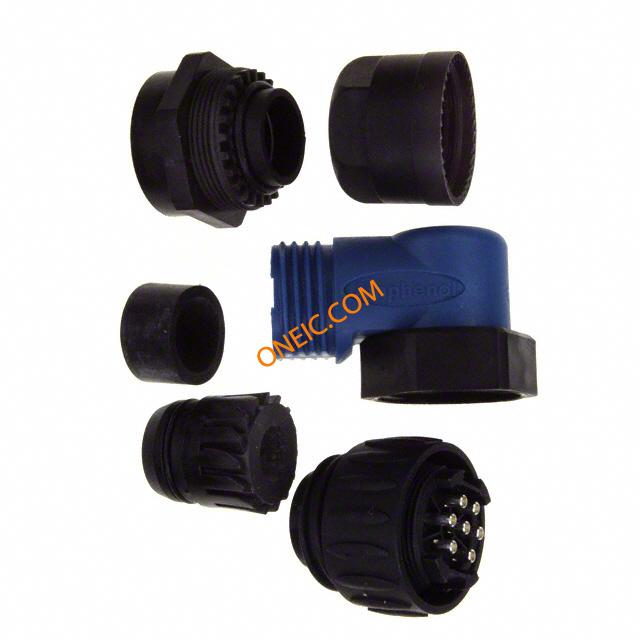

C016 30K006 100 10
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE MALE R/A BLUE SODR SILVR CONTACT CONN MALE PLUG 6+PE R/A SLV BLUE PLUG, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle male cable conn, 6+gnd silver plt, solder term, blu Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable connector, 90° 6+PE, C016 30K006 100 10, Amphenol |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :5mohm |
| Voltage - Breakdown | :4000V | Current Rating (Max) | 13 A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Weight | 0.053 |
| Packaging | Bulk | Wire Gauge | :20AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder | Weight (g): | 44.80000 |
| Contact Type | Pin | Mounting Type | Free Hanging (In-Line), Right Angle |
| Release Force | :30N | Angle of Throw | Right |
| Cable Diameter | 6-12.5 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | :Right Angle |
| Connector Usage | Threaded | Insertion Angle | :- |
| Insertion Force | :15N | Locking Feature | threaded joint, external thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Primary Material | DIN |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | :Pin | Color - Connectors | :Blue / Black |
| Number of Contacts | :6 | Contact Termination | :Solder |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | Exterior Housing Material | :Polyamide 6.6/PA6 |
| Wire Gauge or Range - mm2 | :0.75mm² | Contact Material - Plating | silver plated |
| 1st Connector Mounting Type | :Cable | 1st Connector Mounting Feature | 6+PE |
| Diameter - Outside, Non-Expanded | :12.5mm | ||
Product Info
| Type | Cable Plug | Gender | :Plug |
| Series | :ECOMATE | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| Adapter Series | ECOMATE (C016) | Number of Units | 1 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
