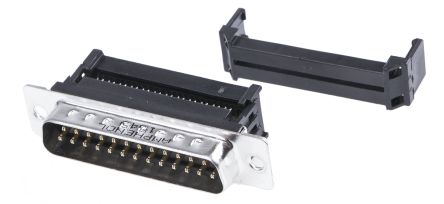

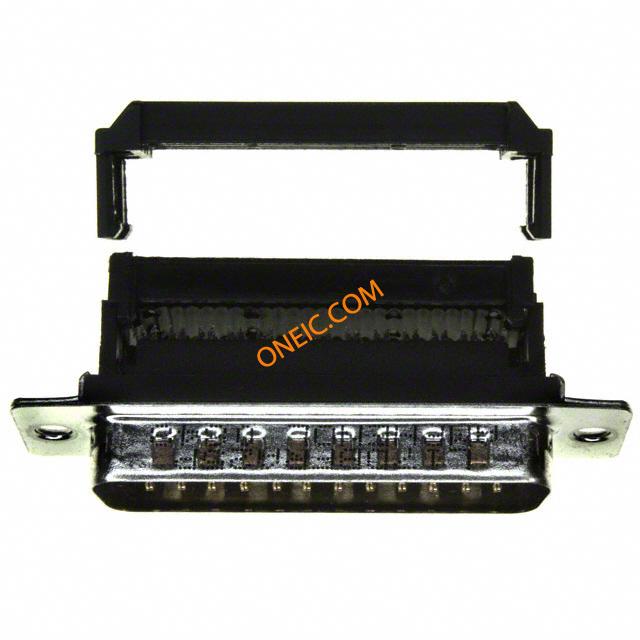

L17DBFRA25P
| Manufacturer | |
| Description | D-Sub Standard Connectors IDC Male 25P D-SUB 25POS PLUG IDC GOLD Flat ribbon IDC D-Sub 25way plug Conn D-Subminiature PIN 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port CONNECTOR, STD D-SUB, PLUG, 25 POS Plug; D-Sub; DFR; PIN:25; male; IDC; for ribbon cable; gold flash D-Sub male 25P, L17DBFRA25P, Amphenol Amphenol DFR 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 84117DBFRA25P | Product Category | D-Sub Standard Connectors |
| Standard Package | 48 | Factory Pack Quantity | 48 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Range deg/s | :AMPHENOL - 17D Series | Voltage Rating | 250V |
| Contact Resistance | 20mΩ | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Pitch | 2.77mm |
| Width | 12.55mm | Height | 12.55 mm |
| Length | 53.04mm | Weight | 0 |
| Packaging | Tray | Shell Size | :DB |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Cable | Number of Rows | 2 |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Brass | Housing Material | Thermoplastic, Glass Filled |
| Length - Overall | 53.04 mm | Package Quantity | 48 |
| Size / Dimension | see | Connector - Cable | plug |
| Number of Contacts | 25 | Contact Termination | :IDC / IDT |
| Number of Positions | 25 | Material - Insulation | thermoplastic |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Contact Material - Plating | gold flash | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Spg | 48 | Type | D-Subminiature |
| Gender | Male | Series | :17D |
| Features | Feed Through, Grounding Indents, Strain Relief | Adapter Series | DFR |
| Number of Ports | 1 Port | Number of Units | 1 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
