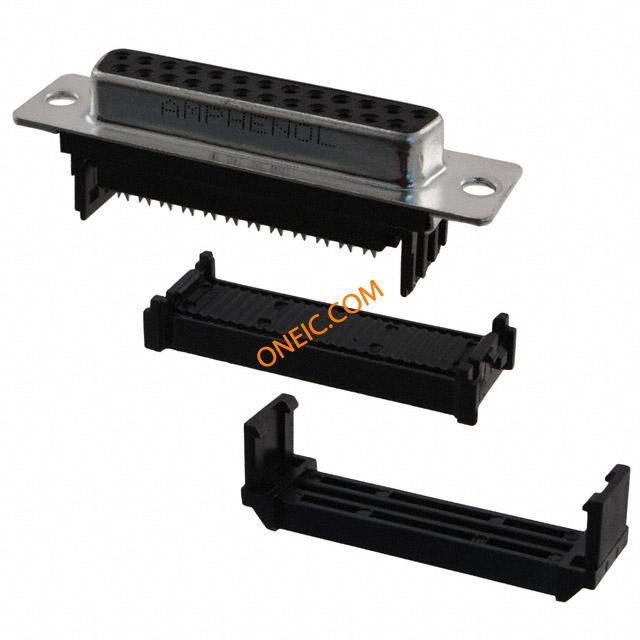

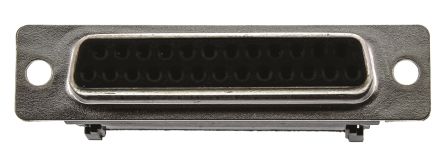

L17DBFRA25S
| Manufacturer | |
| Description | D-Sub Standard Connectors IDC Female 25P D-SUB 25POS RECPT IDC GOLD Flat ribbon IDC D-Sub 25way receptacle Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port D SUB CONNECTOR, STANDARD, 25POS, SOCKET FLATRIBBD-SUB25WRECEP Plug; D-Sub; DFR; PIN:25; female; IDC; for ribbon cable; gold flash Amphenol DFR 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳 |
| Category |
Business
| Part # Aliases | 841-17DBFR-A25S | Product Category | D-Sub Standard Connectors |
| Standard Package | 48 | Factory Pack Quantity | 48 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Range deg/s | :AMPHENOL - 17D Series | Voltage Rating | 250 V |
| Contact Resistance | 20mΩ | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 17.48mm |
| Pitch | 2.77 mm | Width | 12.55mm |
| Height | 12.55 mm | Length | 53.04mm |
| Weight | 0 | Packaging | Tray |
| Shell Size | B | Termination | IDC, Ribbon Cable |
| Weight (g): | 1.60000 | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Cable |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic, Glass Filled |
| Length - Overall | 53.04 mm | Package Quantity | 48 |
| Size / Dimension | 53.04 x 12.55 x 17.48mm | Connector - Cable | plug |
| Number of Contacts | 25 | Contact Termination | :IDC / IDT |
| Number of Positions | 25 | Material - Insulation | thermoplastic |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Contact Material - Plating | gold flash | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Spg | 48 | Type | D-Subminiature |
| Gender | Female | Features | Feed Through, Strain Relief |
| Adapter Series | DFR | Number of Ports | 1 Port |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
