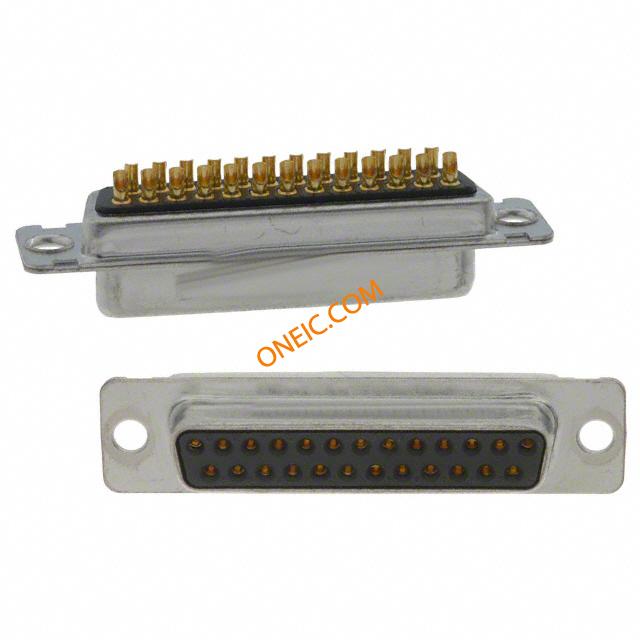

L77DB25S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port 25P D-SUB FEMALE WIRE SOLDER CONN DSUB RCPT 25POS SLD CUP POS D-Sub female 25P, L77DB25S, Amphenol |
| Category |
Business
| MOQ | 200 | Unit Pack | 100 |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 7.5A |
Mechanical
| Color | Black | Packaging | Bulk |
| Termination | Solder Cup | Weight (g): | 13.20000 |
| Contact Type | FEMALE | Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Thermoplastic, Glass Filled |
| Number of Contacts | 25 | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Matchcode | L77DB25S | Standard Leadtime | 9 weeks |
Environmental
| Operating Temperature | -55 TO 85°C | ||
Similar Parts
17E-1726-1
Amphenol Commercial Products
D-Sub Backshells 25P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB25 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 25/hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; Plastic; 0.522In.CblDia
17E-1726-2
Amphenol Commercial Products
D-Sub Backshells 25P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB25 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 25;hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; MetallizedPlastic; 0.522In.CblDia
17E-1657-25
Amphenol Commercial Products
D-Sub Backshells 25P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB25 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 25;hd44 con Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17ESeries; Die-CastMetal; 0.525in.CblDia

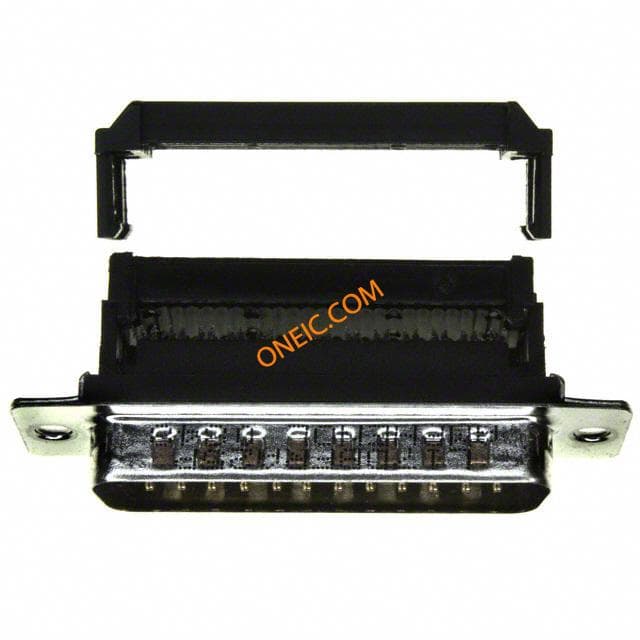

L17DBFRA25P
Amphenol Commercial Products
D-Sub Standard Connectors IDC Male 25P D-SUB 25POS PLUG IDC GOLD Flat ribbon IDC D-Sub 25way plug Conn D-Subminiature PIN 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port CONNECTOR, STD D-SUB, PLUG, 25 POS Plug; D-Sub; DFR; PIN:25; male; IDC; for ribbon cable; gold flash D-Sub male 25P, L17DBFRA25P, Amphenol Amphenol DFR 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳
L717DB25PV
Amphenol Commercial Products
D-Sub Standard Connectors D-SUB CONN D-SUB PLUG 25POS PC TAIL
L717DB25P
amphenol canada, corp.
Conn D-Subminiature PIN 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB PLUG 25POS SLD CUP Conn D-Subminiature M 25 POS Solder Cup ST Panel Mount 25Terminal 1Port D-Sub male 25P, L717DB25P, Amphenol

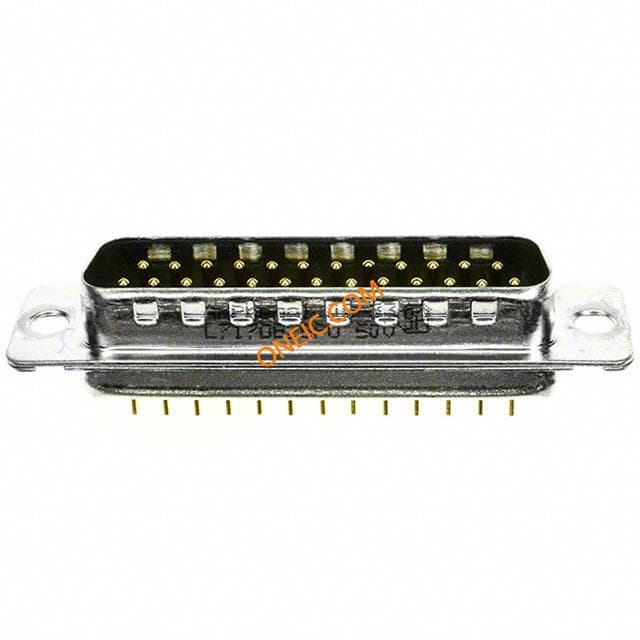

L717DB25PU
