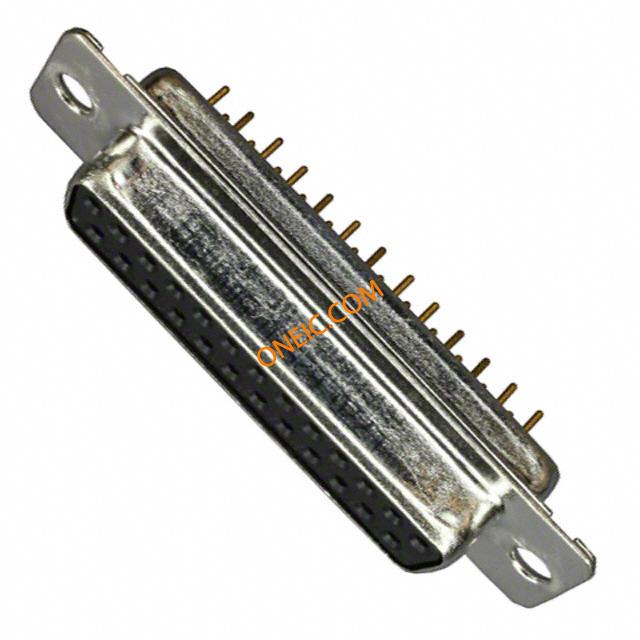

L77DB25SU
| Manufacturer | |
| Description | Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port CONN D-SUB RCPT 25POS GOLD PCB |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 7.5A |
| Voltage - Input (Min) | 300VAC | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 12.93 mm |
| Pitch | 2.76 mm | Height | 11.42 mm |
| Packaging | Bulk | Termination | Solder |
| Contact Form | Signal | Contact Type | Signal |
| Mounting Type | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | Bronze |
| Housing Material | Thermoplastic | Length - Overall | 53.42 mm |
| 1st Contact Gender | SKT | Number of Contacts | 25 |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.9µin (0.10µm) | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Type | D-Subminiature | Series | D |
| DELETED | Compliant | Number of Ports | 1 |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts

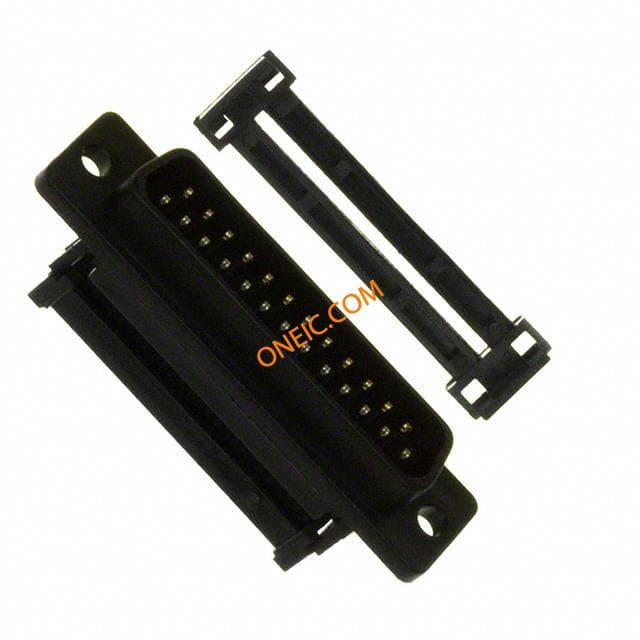

L17DBFRB25P
