L717DB25P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB PLUG 25POS SLD CUP Conn D-Subminiature M 25 POS Solder Cup ST Panel Mount 25Terminal 1Port D-Sub male 25P, L717DB25P, Amphenol |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300V | Number of Poles | 25 |
| Current Rating (Max) | 7.5A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Height | 12.93 |
| Packaging | Bulk | Termination | Solder Cup |
| Weight (g): | 10.00000 | Contact Form | Signal |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 53.42 |
| 1st Contact Gender | PIN | Number of Contacts | 25 |
| Number of Positions | 25 | 1st Connector Gender | Male |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | D-Subminiature | Series | D |
| Features | Grounding Indents | Description | D-Sub male 25p |
| Main Purpose | Grounding Indents | Number of Ports | 1 |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
DB25-PD
ADAM TECH
D-Sub Standard Connectors 25P MALE SOLDER CUP Plug; D-Sub; PIN:25; male; soldering; for cable; gold flash; 250V
17E165725
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS TWO-PIECE DIE CAST SHIELDED BACKSHELLS BACKSHELL, SIZE B
L17DBFRA25S
Amphenol Commercial Products
D-Sub Standard Connectors IDC Female 25P D-SUB 25POS RECPT IDC GOLD Flat ribbon IDC D-Sub 25way receptacle Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port D SUB CONNECTOR, STANDARD, 25POS, SOCKET FLATRIBBD-SUB25WRECEP Plug; D-Sub; DFR; PIN:25; female; IDC; for ribbon cable; gold flash Amphenol DFR 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳
17E-1726-1
Amphenol Commercial Products
D-Sub Backshells 25P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB25 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 25/hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; Plastic; 0.522In.CblDia
17E-1726-2
Amphenol Commercial Products
D-Sub Backshells 25P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB25 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 25;hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; MetallizedPlastic; 0.522In.CblDia
17E-1657-25
Amphenol Commercial Products
D-Sub Backshells 25P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB25 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 25;hd44 con Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17ESeries; Die-CastMetal; 0.525in.CblDia
17E17262
amphenol canada, corp.
Connector Accessories Plated Plastic Backshell Acrylonitrile Butadiene-Styrene Nickel Over Copper D-Sub 25 POS D SUB BACKSHELL, SIZE DB, ABS POLYMER
L77DB25S
amphenol canada, corp.
Conn D-Subminiature SKT 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port 25P D-SUB FEMALE WIRE SOLDER CONN DSUB RCPT 25POS SLD CUP POS D-Sub female 25P, L77DB25S, Amphenol

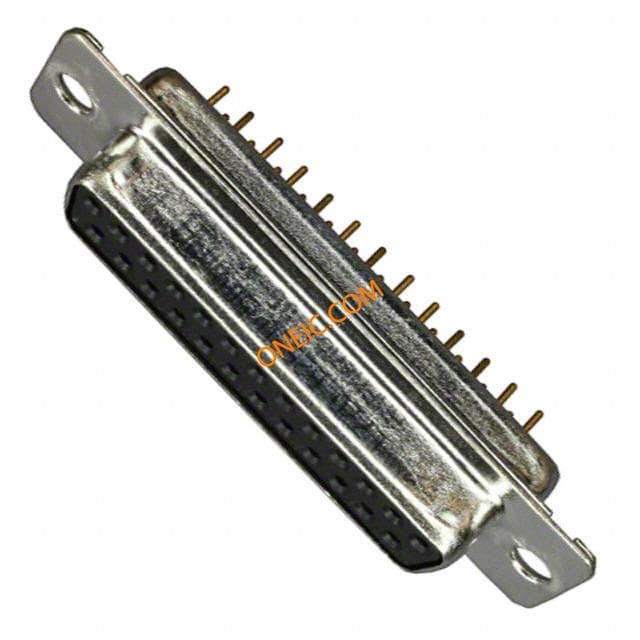

L77DB25SU
amphenol canada, corp.
Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port CONN D-SUB RCPT 25POS GOLD PCB

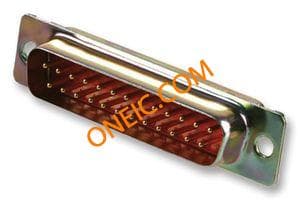

DB25P
