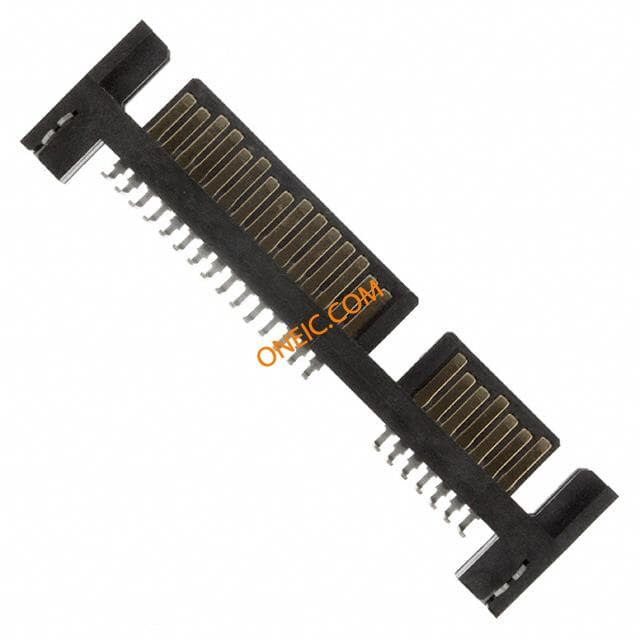

5622-4100-ML
| Manufacturer | |
| Description | Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA |
| Category |
Business
| Product | SATA Connectors | Part # Aliases | 05111174494 XE004225118 |
| Product Category | I/O Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1.5A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Weight | 0.002 | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | SATA | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Connector Style | Plug | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Style | Solder Pin |
| Number of Contacts | 15Power/7Signal | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 22 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SATA | Gender | PL |
| Series | :5622 | Features | Board Lock |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
Similar Parts

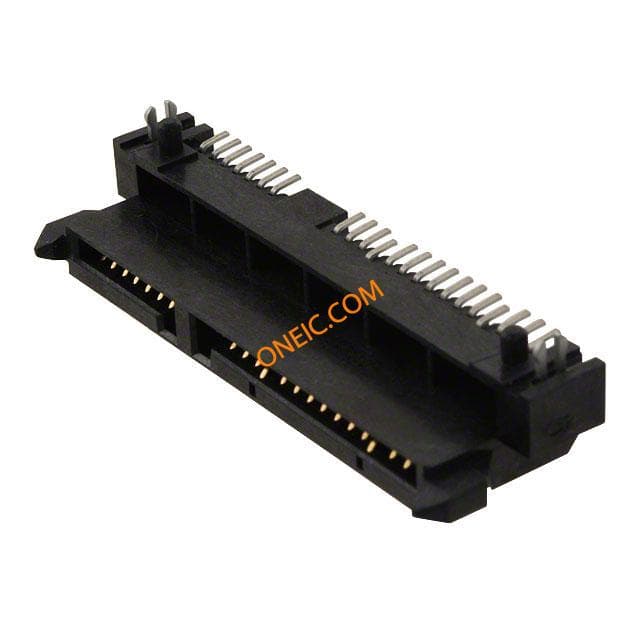

5622-1200-ML
3m interconnect solutions
Conn SATA RCP 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port 22P SATA CONNECTOR SMT Host Receptacle, Vertical and Right Angle, Std Height, Surfacemount Receptacle CONN RECPT SATA R/A SMT 22POS AU 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Surface Mount SATA I/O Connectors 1.27mm 22P RCPT R/A SURF MT 30 GOLD 3M 7/15路 直角 1.27mm节距 表面贴装 印刷电路板插座, SATA

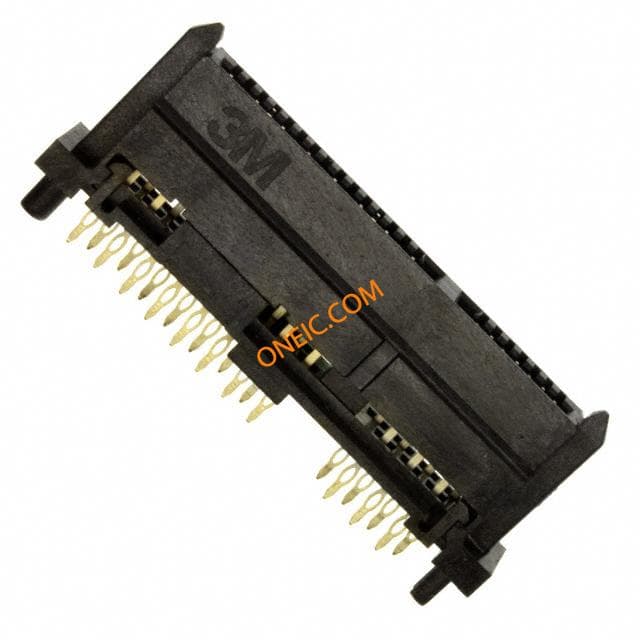

5622-2603-ML
3m interconnect solutions
Conn SATA RCP 15Power/7Signal POS 2.54mm Press Fit ST Thru-Hole 22 Terminal 1 Port Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle CONN RECPT SATA PRESS-FIT 22POS I/O Connectors 1.27mm 22P RECEPT VERT TH 30u GOLD
5622-4100-ML
3m interconnect solutions
Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA

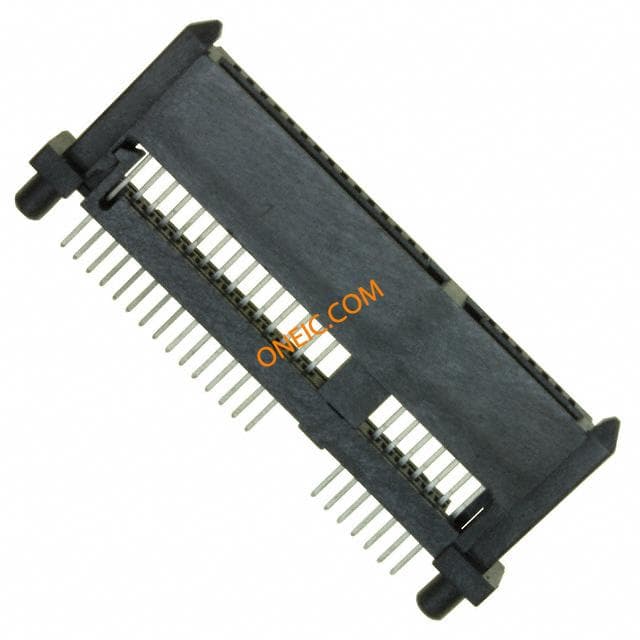

5622-2103-ML
3M Electronic Solutions Division
I/O Connectors 1.27mm 22P RCPT VER THRU HOLE 30 GLD Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle CONN RECPT SATA VERT PCB 22POS 3M 1.27mm 7, 15 Way 1 Row Straight PCB Socket Through Hole SATA 3M 7/15路 直 1.27mm节距 通孔 印刷电路板插座, SATA

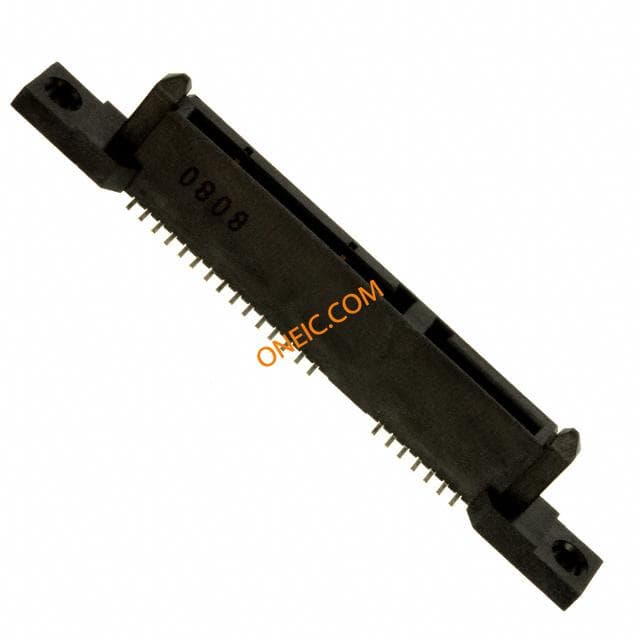

5622-2222-ML
