5622-1200-ML
| Manufacturer | |
| Description | Conn SATA RCP 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port 22P SATA CONNECTOR SMT Host Receptacle, Vertical and Right Angle, Std Height, Surfacemount Receptacle CONN RECPT SATA R/A SMT 22POS AU 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Surface Mount SATA I/O Connectors 1.27mm 22P RCPT R/A SURF MT 30 GOLD 3M 7/15路 直角 1.27mm节距 表面贴装 印刷电路板插座, SATA |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3060 | Product | SATA Connectors |
| Unit Pack | 1020 | Part # Aliases | 05111174498 XE004225019 |
| Product Category | I/O Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1020 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Approval Agency | UL 94V-0 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Bulk | Cable Exit | NO |
| Orientation | RIGHTANLGE | Shield Type | NO |
| Termination | Solder | Contact Type | MALE |
| Pitch - Post | 1.27mm | Mounting Type | Surface Mount |
| Connector Type | SATA | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Connector Style | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Style | SMT |
| Number of Contacts | 15Power/7Signal | Number of Positions | 22 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SATA | Gender | RCP |
| Series | 5622 | Features | Board Lock |
| Matchcode | 56221200ML | Standard Leadtime | 11 weeks |
Environmental
| Operating Temperature | -40 TO 85°C | ||
Documents & Media
Online Document
Similar Parts

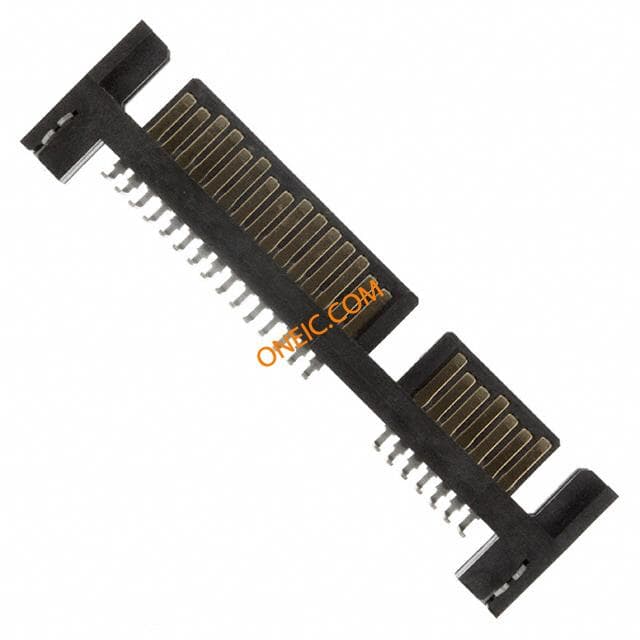

5622-4100-ML
3m interconnect solutions
Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA
$9.4520
Details

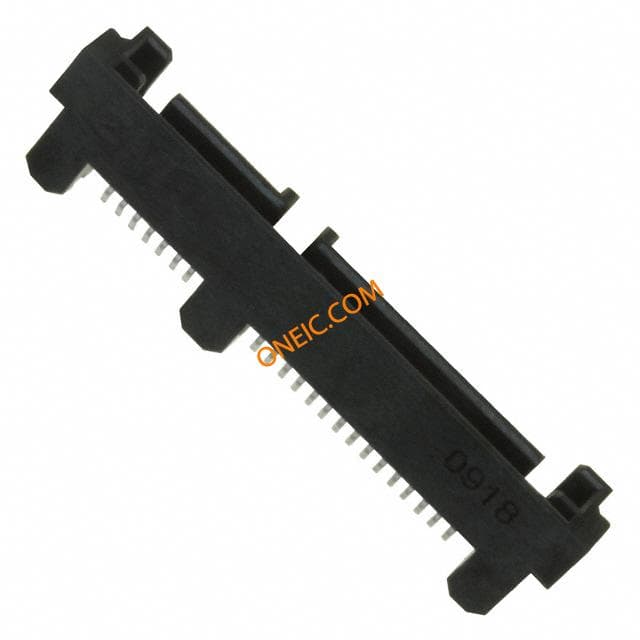

5622-6309-ML
