5622-2603-ML
| Manufacturer | |
| Description | Conn SATA RCP 15Power/7Signal POS 2.54mm Press Fit ST Thru-Hole 22 Terminal 1 Port Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle CONN RECPT SATA PRESS-FIT 22POS I/O Connectors 1.27mm 22P RECEPT VERT TH 30u GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SATA Connectors | Part # Aliases | 05111174497 XE004225001 |
| Product Category | I/O Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1120 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 1.5 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Bulk | Termination | Press Fit |
| Mounting Type | Through Hole | Connector Type | SATA |
| Contact Finish | Gold | Mounting Style | Press Fit |
| Connector Style | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Style | Solder Tail |
| Number of Contacts | 15Power/7Signal | Number of Positions | 22 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SATA | Gender | RCP |
| Features | Board Guide | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
Online Document
Similar Parts
5622-4100-ML
3m interconnect solutions
Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA
$9.4520
Details

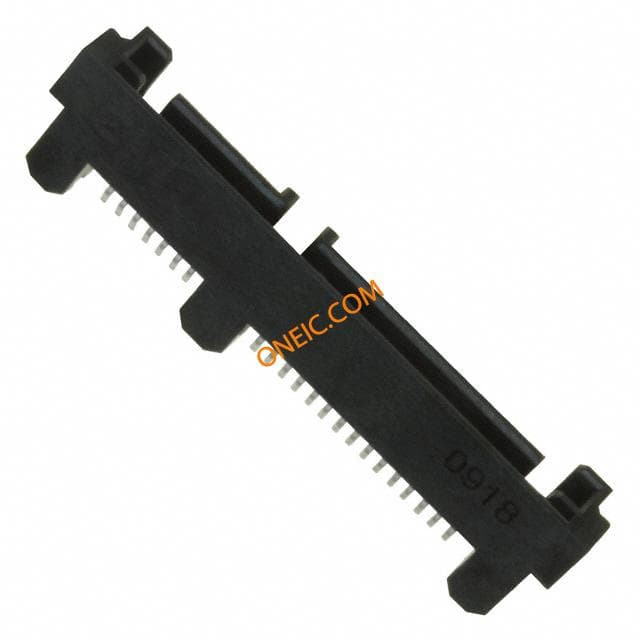

5622-6309-ML
