点击放大查看

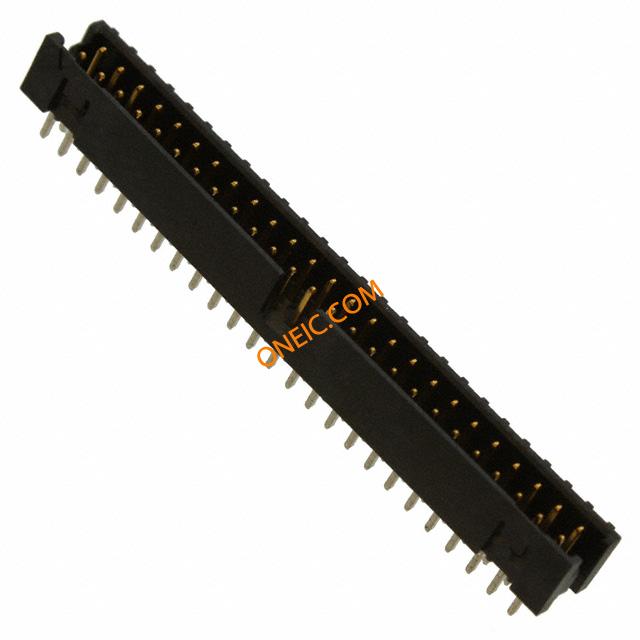

159150-6002
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2mm Solder ST Thru-Hole Headers & Wire Housings 50P VERTICAL HEADER THRU-HOLE, Au CONN HEADER 2MM 50POS VERT GOLD IDC Header 2mm 50w conn VTH centre bump HEADER, 2MM, VERT, THT, 50WAY CONNHEADER2MM50POSVERTGOLD |
| Category |
Business
| Part # Aliases | 05111557988 80001254129 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 159 Series | Switch Function | Dual Friction |
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 2 mm |
| Weight | 0.025 | Packaging | Tray |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Vertical |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Primary Material | Rectangular |
| Termination Style | Through Hole | Number of Contacts | 50 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 50 |
| Contact Length - Mating | 0.153" (3.89mm) | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Vertical | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 159 | Manufacturer | 159Series |
| Product Type | Headers - Shrouded | Number of Positions Loaded | All |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | - 55 C to + 105 C |
